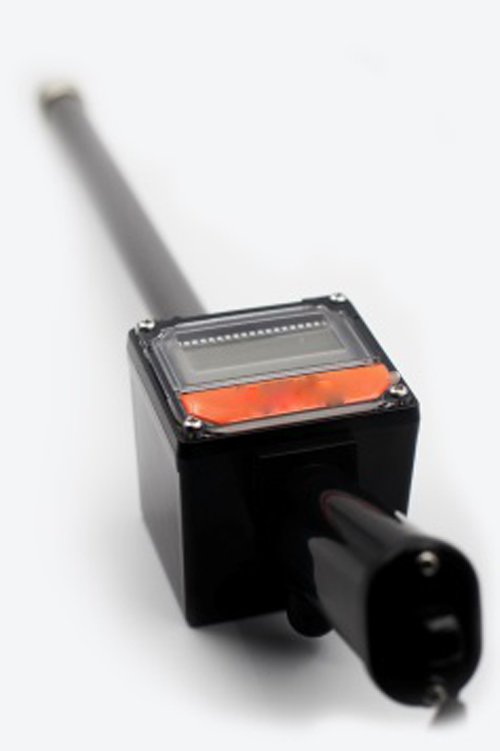

1    Description of equipment: Animal Estrus Ovulation Detector
2    Functional characteristics
2.1    Makes it easier to determine an optimum mating time for females with atypical estrous cycles
2.2    It enables users to detect an asymptomatic estrous period (silent heat)
2.3    Makes insemination more effective
2.4    Improves the economic performance of farms
2.5    Easy to clean and disinfect
2.6    Light and ergonomic casing
2.7    Biological silica gel protects the vagina
2.8    High-frequency probe
3    Performance introduction
3.1    Length of the probe     Pig : 29 cm
                                          Dog:12.5cm
                                          Cow:46.5cm
3.2    Power supply 1 x 9 V battery, type 6F-22
3.3    Battery low indication automatic
3.4    Power input 18 mA
3.5    Measurement control single chip microcomputer
3.6    Display LCD：2.6 digits
3.7    Measurement resolution 10 units
3.8    Measuring range 0-1990 units
3.9    Working temperature: 0-50°C
3.10    Humidity:  85%
4    Standard Configuration: Mainframe, Manual/ technical instructions
