- Description
Technical Specifications

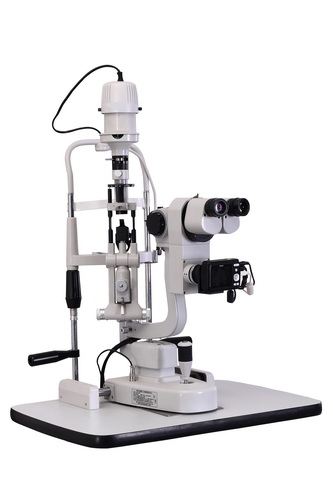

Microscope
Type Galileo parallel style
Magnification change
Five magnification
Eyepiece 12.5x
Total magnification
6x 10x 16x 25x 40x
Field of View 6X: 33mm, 10X: 20mm, 16X: 13mm, 25X: 8mm, 40X :5mm
Range of adjusting the distance of pupil
55 mm-75 mm
Range of adjusting eyepieces
-8D - +8D
Magnification
Slit width 0.794x
0mm-14mm
Slit length 1mm-14mm
Diameter of aperture
φ14mm,φ10mm,φ5mm,φ2mm,φ1mm,φ0.2mm
Slit angle 0-180
Illumination angle
0, 5, 10, 15, 20
Filter Heat absorption, Grey, red free(Green), Cobalt blue
Bulb 12v, 50w halogen bulb
Moving
Forward and backward moving
90mm
Left and right moving
100mm
Handle moving 15mm
Up and down moving
30mm
Jaw bracket part Up and down moving
上下 80mm
Fixation Red LED
Power
Input voltage 110/220V±10％
Input frequency 50/60Hz
Input power 60VA
Output voltage
Illumination: 4.5V 9V 12V
Fixation: 6V
Safe standard of electric IEC601－1, type Ⅰof BF Model
Weight and
Dimension
Packing box 720mmx495mmx480mm
Gross weight 25Kg
Net weight 21Kg
canon A800 External digital camera canon A800
1000，10 Mega resolution
Image capture card
Professional image software
Microscope
Type Galileo parallel style
Magnification change
Five magnification
Eyepiece 12.5x
Total magnification
6x 10x 16x 25x 40x
Field of View 6X: 33mm, 10X: 20mm, 16X: 13mm, 25X: 8mm, 40X :5mm
Range of adjusting the distance of pupil
55 mm-75 mm
Range of adjusting eyepieces
-8D - +8D
Magnification
Slit width 0.794x
0mm-14mm
Slit length 1mm-14mm
Diameter of aperture
φ14mm,φ10mm,φ5mm,φ2mm,φ1mm,φ0.2mm
Slit angle 0-180
Illumination angle
0, 5, 10, 15, 20
Filter Heat absorption, Grey, red free(Green), Cobalt blue
Bulb 12v, 50w halogen bulb
Moving
Forward and backward moving
90mm
Left and right moving
100mm
Handle moving 15mm
Up and down moving
30mm
Jaw bracket part Up and down moving
上下 80mm
Fixation Red LED
Power
Input voltage 110/220V±10％
Input frequency 50/60Hz
Input power 60VA
Output voltage
Illumination: 4.5V 9V 12V
Fixation: 6V
Safe standard of electric IEC601－1, type Ⅰof BF Model
Weight and
Dimension
Packing box 720mmx495mmx480mm
Gross weight 25Kg
Net weight 21Kg
canon A800 External digital camera canon A800
1000，10 Mega resolution
Image capture card
Professional image software
