Type: Fully Automated Sample Tests/Hour: 200tests Size: Tabletop Type

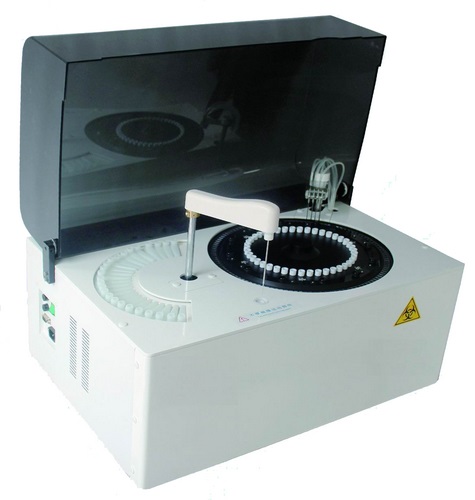

Fully automatic biochemistry analyzer machine Operation Video,

Fully automatic biochemistry analyzer machine Overall Performance,
Equipment type        Fully automatic discrete, STAT priority
Analysis rate          Constant speed 200T/H (without ISE)
Test principle          Colorimetry, turbidimetry
Analysis method       End-point, 2 kinetics, fixed-time, etc. support single/double wavelength, linear and non-linear calibration

Fully automatic biochemistry analyzer machine Sample System,
Sample Tray          42 sample positions, random access of all samples
Sample Volume       2-50ul, 0.1ul increment
Sample probe         Liquid level detection, the remaining detection, collision protection etc.
Sample Containers    Sample cups, Micro tube, Original blood-collection tube, etc.

fully automatic biochemistry analyzer machine Reagent System
Reagent Tray         25 reagent positions
Reagent Volume      R1:25-300ul, R2:10-150ul, 0.1ul increment
Reagent Probe        Liquid level detection, the remaining detection, collision protection etc.
Reagent Refrigeration    4-15℃, independent power supply, 24-hour non-stop refrigeration

fully automatic biochemistry analyzer machine Reaction System
Reaction Tray        Rotating tray, 120 cuvettes
Cuvette             Reusable high quality cuvette, Optical diameter 6mm
Reaction Volume     180-500ul
Incubation system    Bi-directional liquid-air device
Temperature         37℃±0.1℃ with real-time display

fully automatic biochemistry analyzer machine Optical System
Light source           12V35W halogen lamps, over 2000 hours
Photoelectron road     after spectrophotometry
Wavelength           340,405,450,510,546,578,630,700nm
Absorbance range     0-3.500Abs
Resolution            0.0001Abs

fully automatic biochemistry analyzer machine Operating System
PC operating system       Windows XP or above
Analysis control software      English version graphical operating software
Report printing            Report formats support the user-defined mode, QC and state information etc.
System connection        RS-232

fully automatic biochemistry analyzer machine Working Conditions
Power supply             AC 220V±22V, 50Hz±1Hz, power 1.5KVA
Ambient Temperature     15-30 ℃
Humidity                 35-80%
Water consumption        5L/Hour
Dimension                Bench top: 750mm*520mm*600mm
Weight                   45KG

Test Content,

Item no	Abbreviation	name	Item no	Abbreviation	name
1	ALT	Alanine Aminotransferase	29	Fe	Blood serum ferrum
2	ALP	Alkalinity phosphatase	30	Zn	Blood serum zinc
3	TBIL	Total bilirubin	31	P	Blood serum phosphorus
4	DBIL	Direct bilirubin	32	K	Blood serum potassium
5	TP	Total protein	33	Na	Blood serum sodium
6	ALB	Albumin	34	HGB	Haemoglobin
7	TTT	Muskdeer vanilla phenolase	35	RBC	Red blood cell
8	CHE	Choline lipase	36	CO₂	Total carbon dioxide
9	NH₃	Blood ammonia	37	r-GT	Gamma-glutamate aminoacyl transpeptidase
10	BUN	Urea nitrogen	38	G	Globulin
11	CRE	Inosine anhydride	39	A/G	White ball ratio
12	UA	Uric acid	54	URE	urea
13	TCHO	Cholesterol	55	Cu	Blood serum coppre
14	HDLC	High density Cholesterol
15	LDLC	Low density Cholesterol
16	TG	Triglyceride
17	LDH	Lactic dehydrogenase
18	GOT	Millet straw transaminase
19	CK	Creatine kinase
20	GLU	Blood sugar
21	AMS	Amylose
22	IGA	Immune globulin A
23	IGG	Immune globulin G
24	IGM	Immune globulin M
25	C₃	Complement
26	CL	Blood serum chlorine
27	Ca	Blood serum calcium
28	Mg	Blood serum magnesium
