- Description
- More Pictures

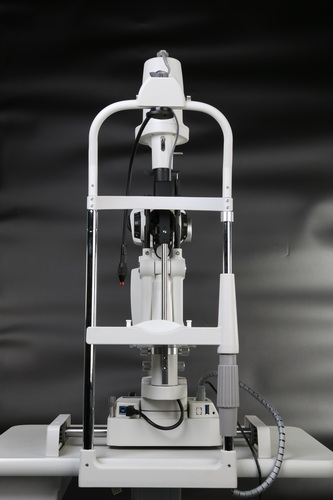

| Features: Simple Design + Simple Operation The design was inspired from the shape of firefly. The smart design largely saves space for doctors compared with built-out camera. We have preset many camera setups so the user does not need to set many parameters before using the device. The user can operate the machine directly once the installation has been finished. The device carries following automatic functions for photo shooting and processing when equipped with our MediView software: Auto Focus/ISO Auto Exposure Auto White Balance Right/Left Eye indicator Auto Focusing Calibration |
Specifications:
| Magnification Change |
Revolving Drum |
|
| Total Magnification |
6X, 10X, 16X, 25X, 40X |
|
| Eyepieces |
12.5X |
|
| Angle between Eyepieces |
13° |
|
| Pupillary Adjustment |
52 mm-78 mm |
|
| Diopter Adjustment |
±6.0 D |
|
| Field of View |
Φ34.7 mm(6X), Φ22 mm（10X）, Φ13.5 mm(16X), Φ8.5 mm（25X）, Φ5.5mm(40X) |
|
| Slit Illumination | ||
| Slit Width |
0~14 mm continuous (slit becomes a circle at 14 mm) |
|
| Slit Length |
0~14 mm continuous |
|
| Aperture Diameter |
Φ14 mm, Φ10 mm, Φ5 mm, Φ3 mm, Φ2 mm, Φ1 mm, Φ0.2 mm |
|
| Slit Angle |
0°~180° |
|
| Slit Inclination |
5°, 10°, 15°, 20° |
|
| Filters |
Heat-absorbing filter, ND filter, Red-free filter, Cobalt Blue filter |
|
| Lamp |
6V/20W Halogen Lamp | |
| Digital Module Specification | ||
| Image Sensor |
500 Pixels |
|
| Photo Resolution |
2592 X 1944 |
|
| Format |
JPEG |
|
| Video Resolution |
1280 X 960 |
|
| Frame of Video |
25 fps |
|
| Video Formats |
MP4 |
|
| Focus Mode |
Auto Focus |
|
| Exposure |
Auto Exposure,Auto Gain |
|
| Transmission Interface |
Standard USB Port | |
Shipping Information:
G.W: 27kg
Packing Size: 0.76m,0.53m,0.46m
