Product Details

Technical parameters:

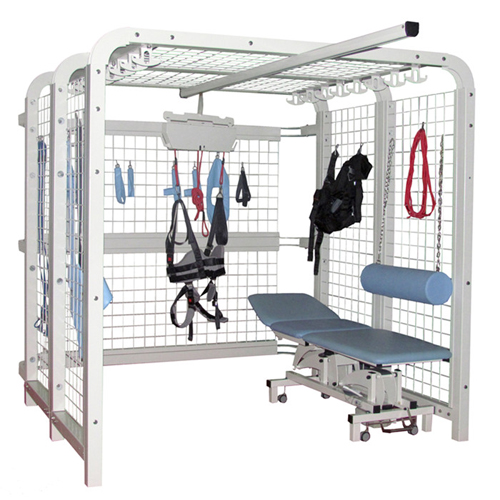

1.Metal frame: metal frame system is modular, highly flexible systems.4 units three-dimensional work surface, to meet the three-dimensional and multi-angle support training, free to adjust the height and suspension. The maximum load of a single hanging point is 150kg, overall size:2600*2400*2400mm.

2.Sling: all welded steel rod mesh at the top for complete suspension with slings & ropes, Mesh facilitates suspension at any desired point in relation to the patient and as required in each individual case.

Different size of the sling to meet the training needs of different body parts. These straps are easy to fix, durable and easy to use.

Narrow sling: size 320*55*10mm, maximum load capacity is 150kgs

Middle belt: size 760*90* 10mm, maximum load capacity is150kg

T-belt: size 340*150*10mm, maximum load capacity is 180kgs

Mid-suspension  belt: size 1000*80mm, maximum load capacity is 150kgs

Wide-suspension belt:size1000*120mm, maximum load capacity is 150kgs

Face-suspension belt: size 700*200, maximum load capacity is 150kgs

Handlebar: size 270*150*30mm, maximum load capacity is 150kgs

Cervical vertebra suspensory belt:500*100mm, maximum load capacity is 150kgs

Waist suspensory belt:1300*230mm, maximum load capacity is 150kgs

3. Ropes: different specifications of the rope can meet different training requirements

Elastic rope: with buckle and rope clamp, maximum load capacity is 50kgs, size 700mm, diameter 8mm

Elastic rope: the carabiner with the hook, maximum load capacity is 50kgs, size 900mm, diameter 8mm

Elastic rope: the carabiner with the hook, maximum load capacity is 50kgs, size 600mm, diameter 8mm

Elastic rope: the carabiner with the hook, maximum load capacity is 30kgs, size 300mm, diameter 8mm

Elastic rope: the carabiner with the hook, maximum load capacity is 30kgs, size 1200mm, diameter 8mm

The maximum load capacity of the red rope is 150kgs, size 4000mm, diameter 6mm

The maximum load capacity of the red string is 150kgs, size 300mm, diameter 6mm

The maximum load capacity of the red rope is 150kgs, size 600mm, diameter 6mm

4. Training process is easy, comfortable and quickly.

5. Multi-posture treatment table(), which is combined with patient in multi-position training, size 197*660*570cm, head section angle adjustment relative to horizontal plane: -20°~ +30°; Angle adjustment of the waist thoracic section relative to the horizontal plane: 0°~+25°;

Lower body surface adjustment angle relative to horizontal plane：-25°~+40°. Bed height:0~300mm.

6. You can use either the open chain exercise or the closed chain exercise. The load of movement can be adjusted freely through sandbags, sandbags specifications 1kg, 2kg, 4kg, 5kg.

7. The sliding - rail suspension device is combined with suspension clothes, suitable for children to perform gait training under weight loss state.

Slide rail (back and forth) : load capacity 150kg, 3000mm displacement

Suspension height: 0~1500mm adjustable

8. You can do active and passive cervical vertebra training and lumbar vertebra training.

9.Free combination of rope, sling and suspensor, training forms and biofeedback diversified combinations.
