Description

Specifications

Type: Floor Type Speed Type: Low Speed (≤10000rpm), High Speed (≥10000rpm) Max speed rpm: 8000 Refrigerated Function: With Refrigerated Function Application: Beauty, Hematocrit, Blood Bank, Cell Smear

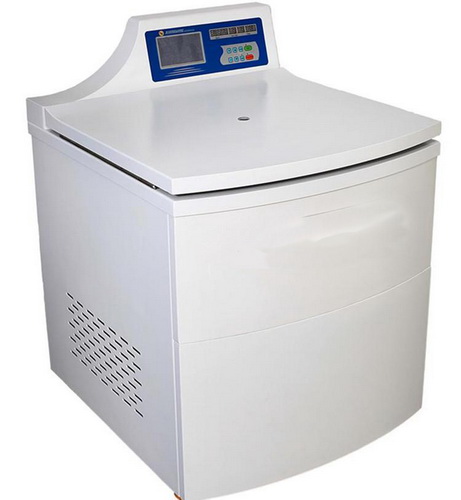

Compact refrigerated floor standing centrifuge is specially designed for universal use in blood banks, clinical laboratories, serology investigations, molecular biology, serum separation, pharmaceutical applications, where repeatability, precision and reliability of speed, time, temperature, acceleration and deceleration are significant factors in obtaining perfect separation of distinct blood fractions.

Feature

Large color touch screen display, both shows the set parameters and operation parameters.
All stainless steel internal and external structure, corrosion resistance and durable.
Use the imported compressor from TAIKANG,FRENCH,with the accurate temperature control system.
Max capacity:6×2400ml or processing 18 bags of 400ml whole blood at one time.
An easy-going operator interface with a standard English operating software, user can operate freely.
With 35 operational programs can be designed, saved and used. Users can set 9 programs for daily operation use
With the self-diagnositc system and protection for imbalance, over-speed and over-temperature. Both automatic electronic lock and mechanical lock to ensure safety.
Acc/Dec 10 rates from 0~9 grade; Display speed of rise and fall curve, integral curve and temperature curve.
Equipped with standard interface can connect computer to operate centrifuge, and composition local computer management system.
Widely used in the field of blood station,pharmaceutical factory,biochemistry,biological products and so on.

Technical Parameters

Model	CCL-8M12L	Max Speed	8000r/min
Max RCF	15200xg	Max Capacity	6×2400ml,
Speed Accuracy	±20r/min	Timer Range	0-99h 59 min
ac/dc Rate	0-9(Grade)	control&drive	microprocessor control/direct drive
	9	Program Store	35
Motor Power	3KW	Refrigerator Power	2.5KW
Noise	≤65dB(A)	Power Supply	AC220V/110V 50Hz 35A
Weight(Without Rotor)	500kg	Dimensions	960×860×1200mm(L×W×H)
Refrigeration System	Imported High-performance Compressor CFC-free Refrigeration System

Rotors

Rotor Model	Capacity(ml)	Max speed	Max RCF (×g)
Rotor Model	Capacity(ml)	(r/min)	Max RCF (×g)
No.1 SR	2×6×1000ml	4000	5800
No.2 SR	6×2400ml Oval	4200	5900
No.3 SR	24×200 blood bag	4000	5900
No.4 AR	6×1000ml	8000	15200
