Volume: 500L Principle: High Pressure Steam Type: Horizontal

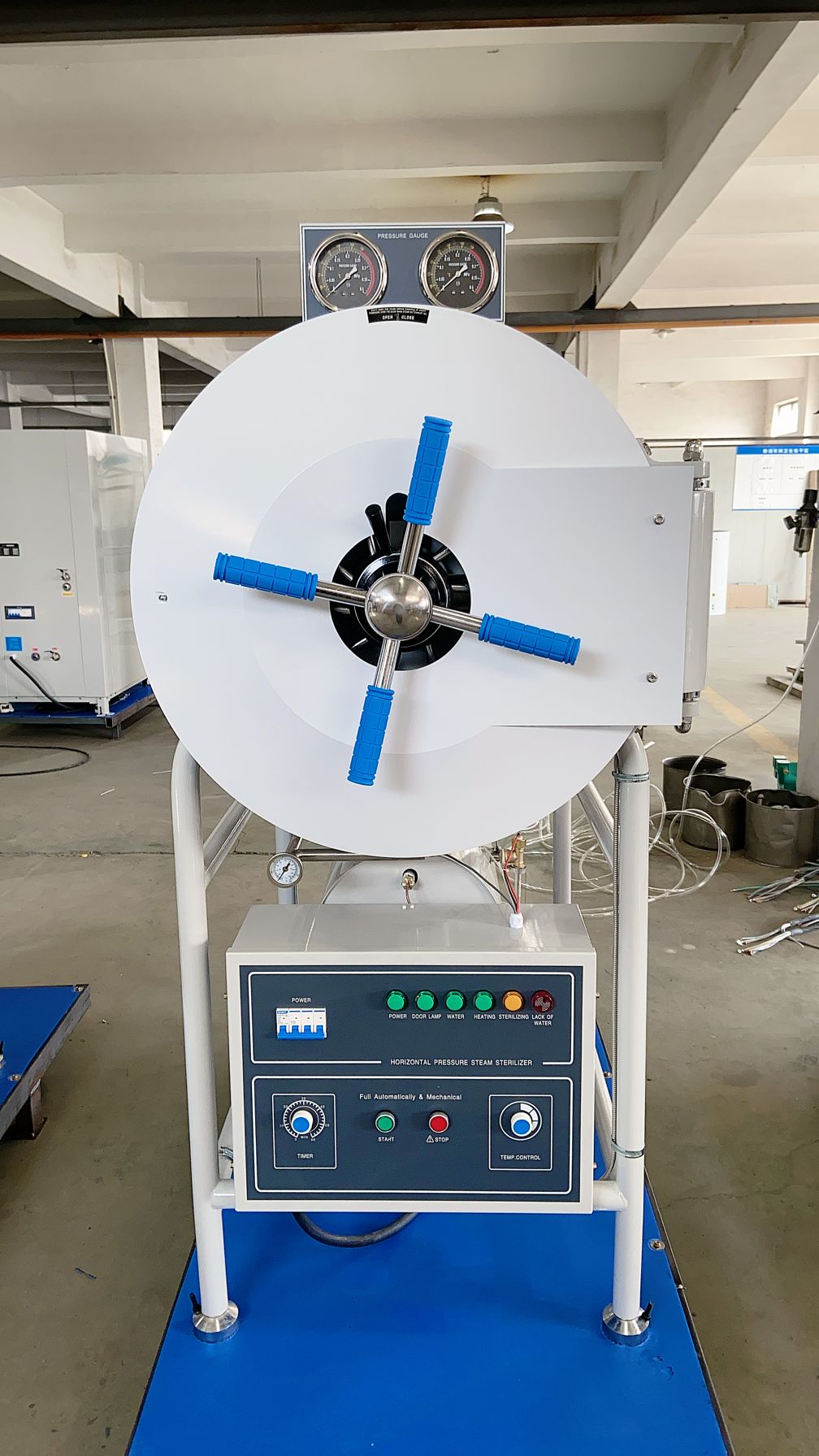

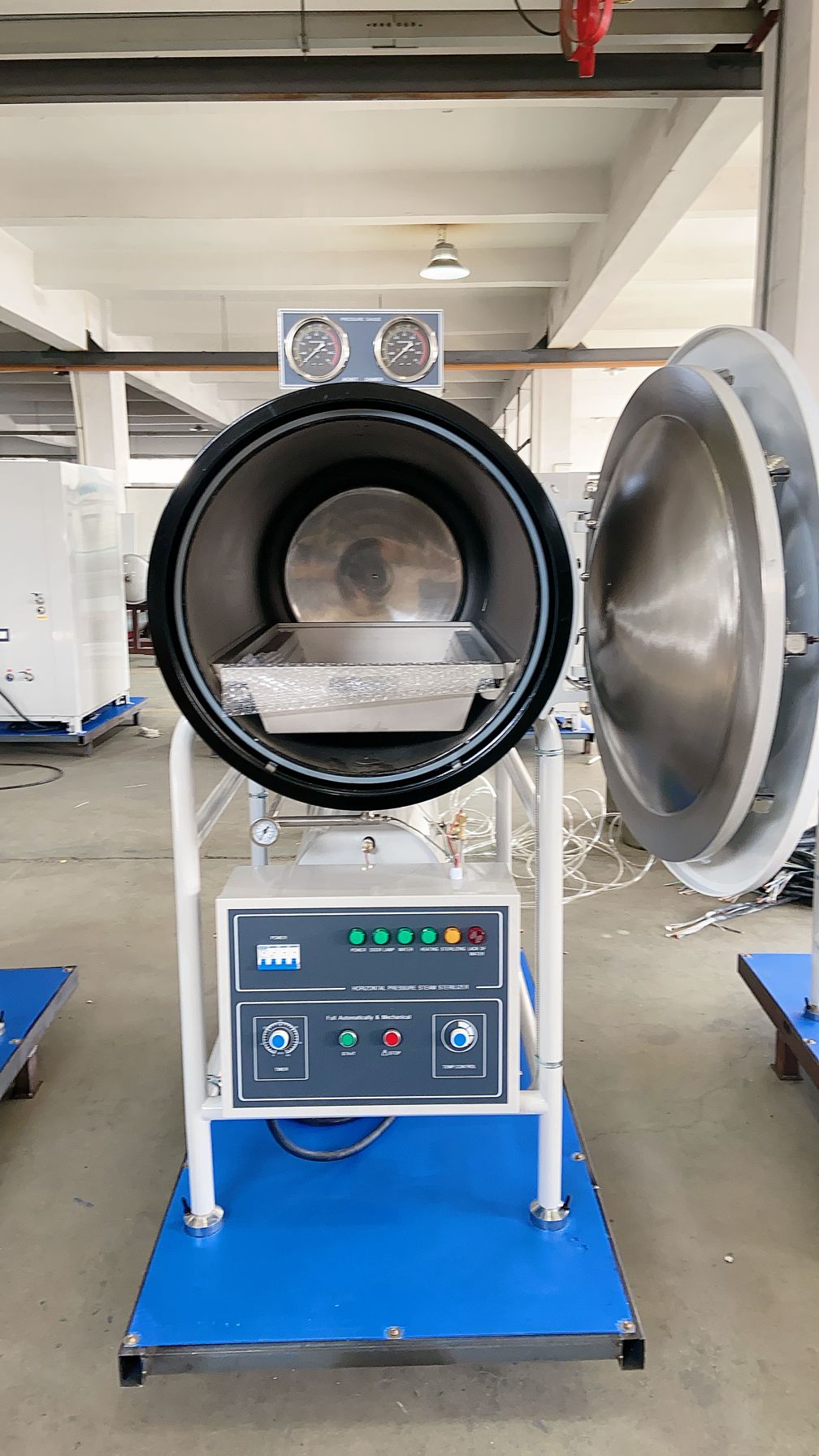

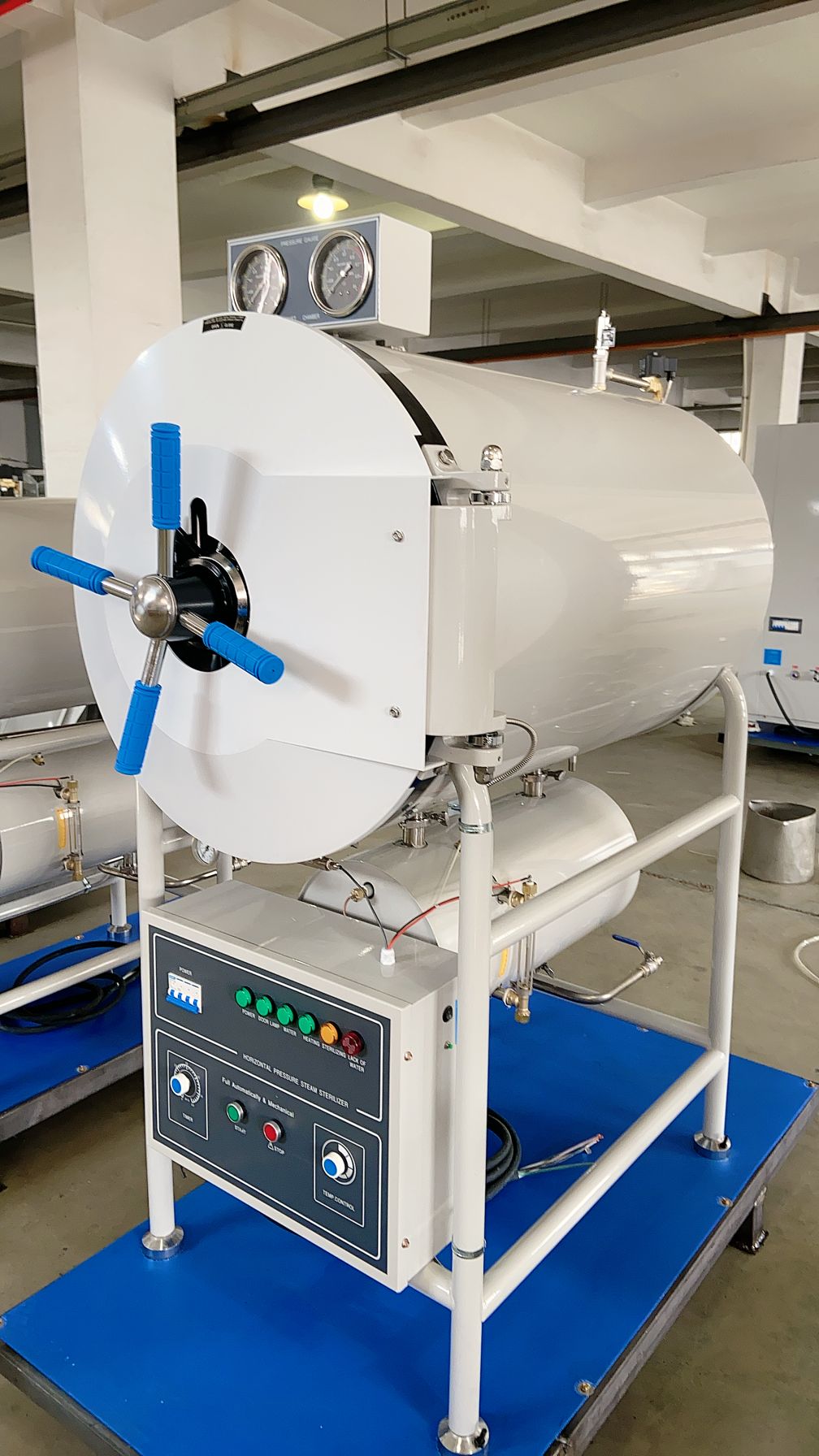

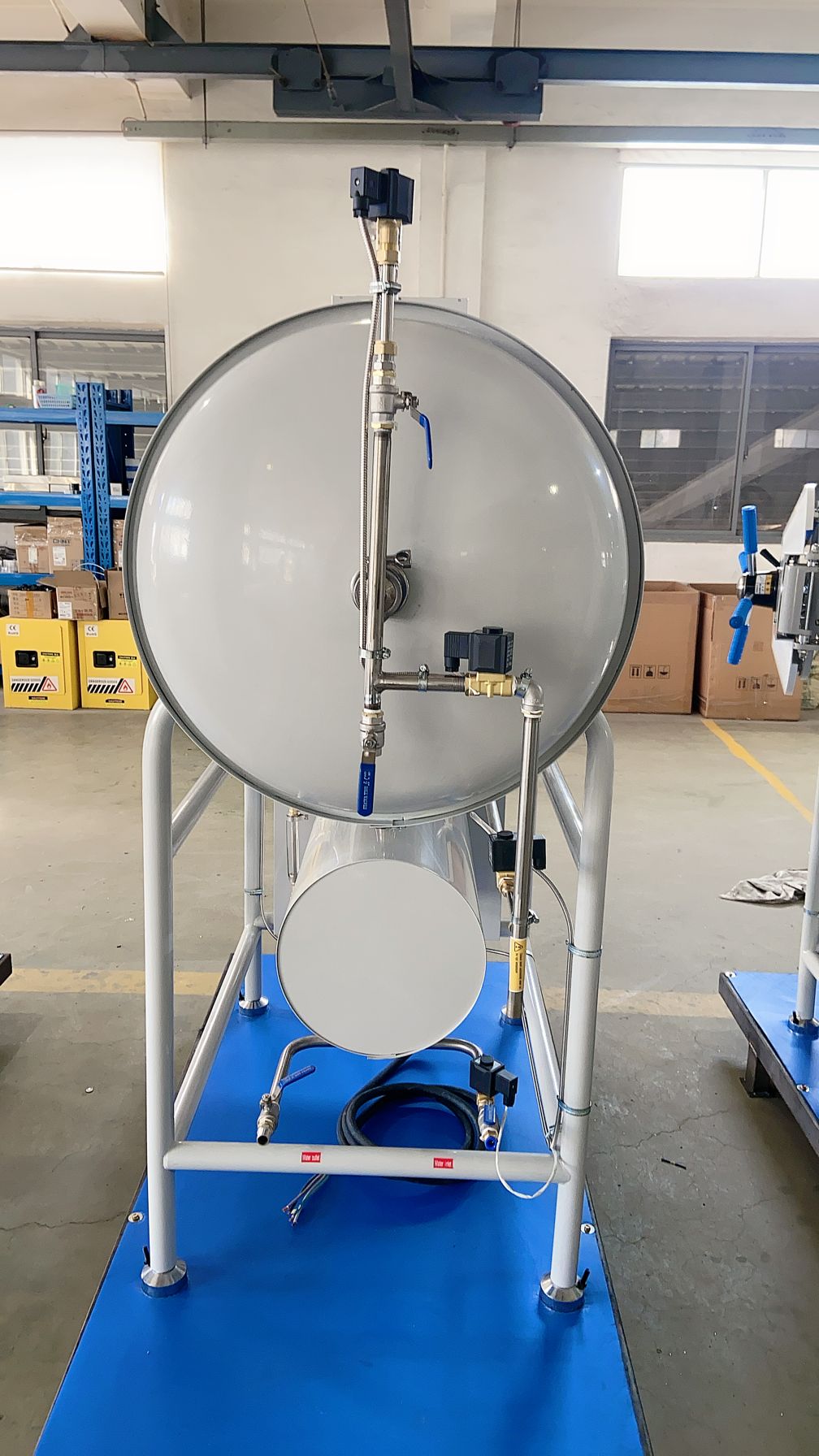

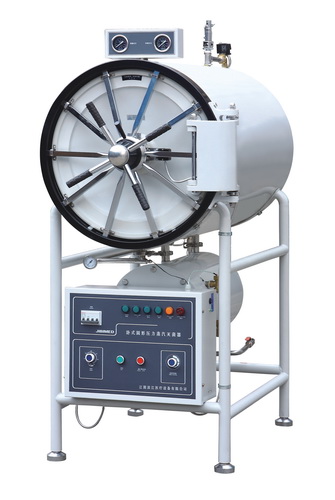

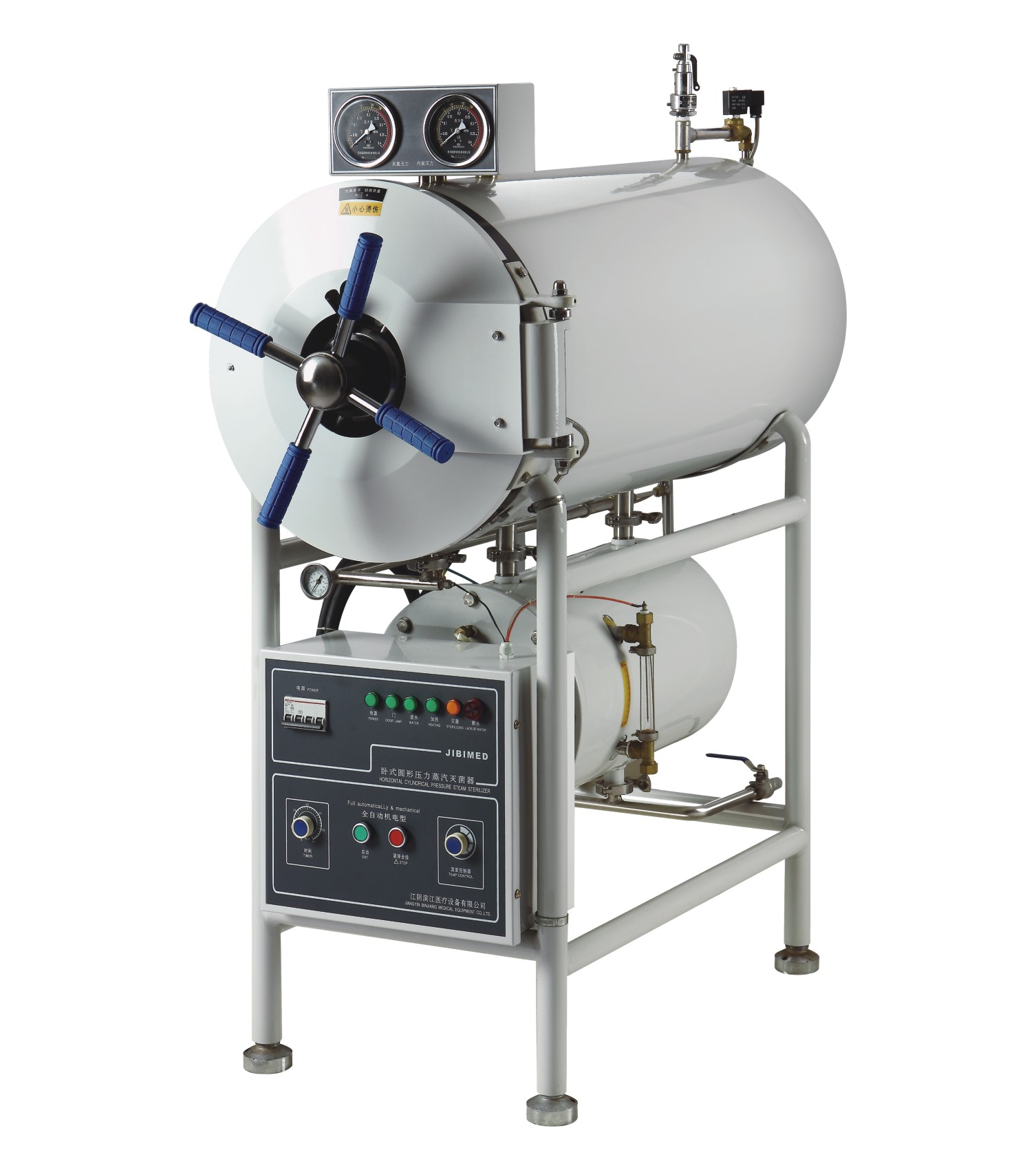

The horizontal autoclave, which adopted the way of gravity
exchange to releasing the cold air from the chamber more
completely to ensure the reliable sterilization.

The control system automatically adjust the steam inlet and
outlet according to chamber temperature during sterilizing.

This unit is ideal equipment for hospitals, chemical, food, scientific
research institutes and other organizations to sterilize surgical instruments,
dressings, medicines, culture medium, food,
fabric glassed etc.

Characteristics:
1. Sterilizing course automatic sterilization controlled, easy to operate.
2. With drying function, suitable dressing drying.
3. With over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7. The chamber of the sterilizer is made of stainless steel.

Technical data:
Model   CCS-500YDA
Sterilizing chamber volume   500L, Φ700×1300mm
working pressure   0.22MPa
working  temperature   134℃
Adjustment of temperature   40℃ - 134℃
Time of sterilization   0-60 min
Time of drying   0-60 min
Heat average   ≤± 2℃
Power   18KW/380V 50Hz, 220V, 60Hz, Three phase
Dimension (mm)   1800×900×1820
Transport dimension (mm)   1850×1050×2100
G.W/N.W   580/470 KG
