Description
Certificate
User Manual

Specifications

Operation Video for automated cell counter,

Features for automated cell counter,:
Can be Open and Closed reagent System.
Open Reagent system will be suitable for any brand reagent, like Mindray, Beckmen and others.
Can be done OEM service, put your logo on the machine.

3-part differentiation of WBC, 23 parameters, single channel counter ,up to 35 samples test per hour
Volume measurement by time ,not wrong warning
Adanced valve technology,long life
RS232 interface, PC connecting

Electrical resistance for counting and SFT method of hemoglobin
Low sample consumption : venous 9.8 ul, capillary 9.8 ul, pre-diluted 20 ul for twice testing one time
8.4” color TFT, Windows interface all testing parameter displayed simultaneously
Windows operation system graphical buttons mouse and keyboard operation
Double convolution and intelligent fitting
Automatic diluting , Mixing , rinsing and clog clearing

Automatically sample probe cleaning (inside and outside)
Large storage capacity: up to 10,000 samples +3 histograms
Internal thermal-sensitive printer or external printer.
RS232 interface, PC connecting

Configuration,

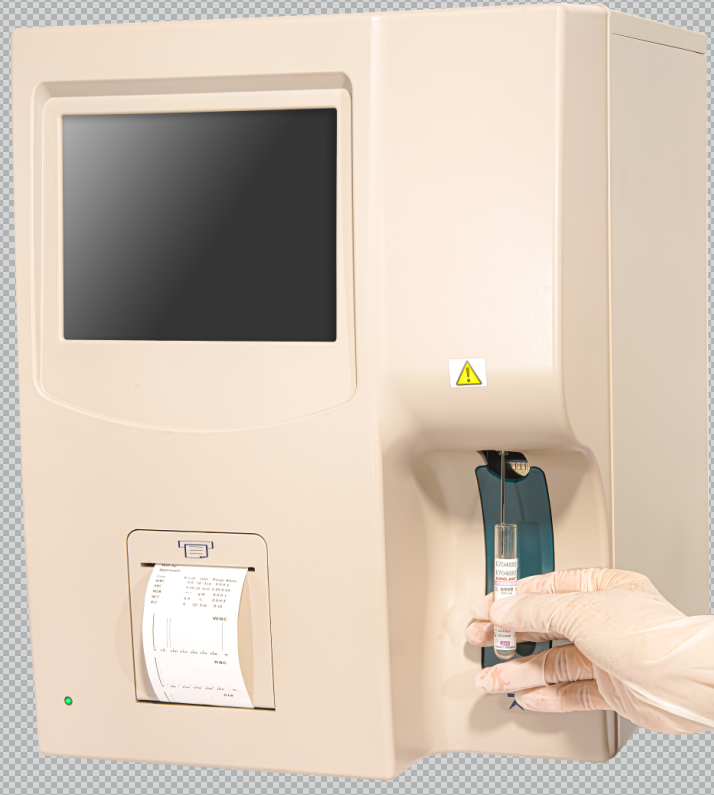

Main Unit, 1 Pc

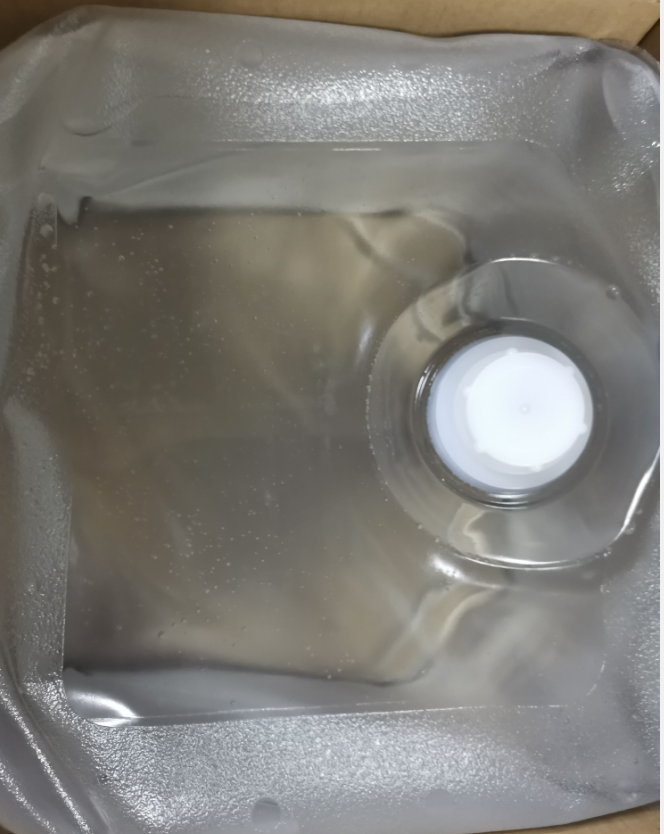

DILUENT, 2L (can be offer freely, please remind us. if without remind, we wont ship it)

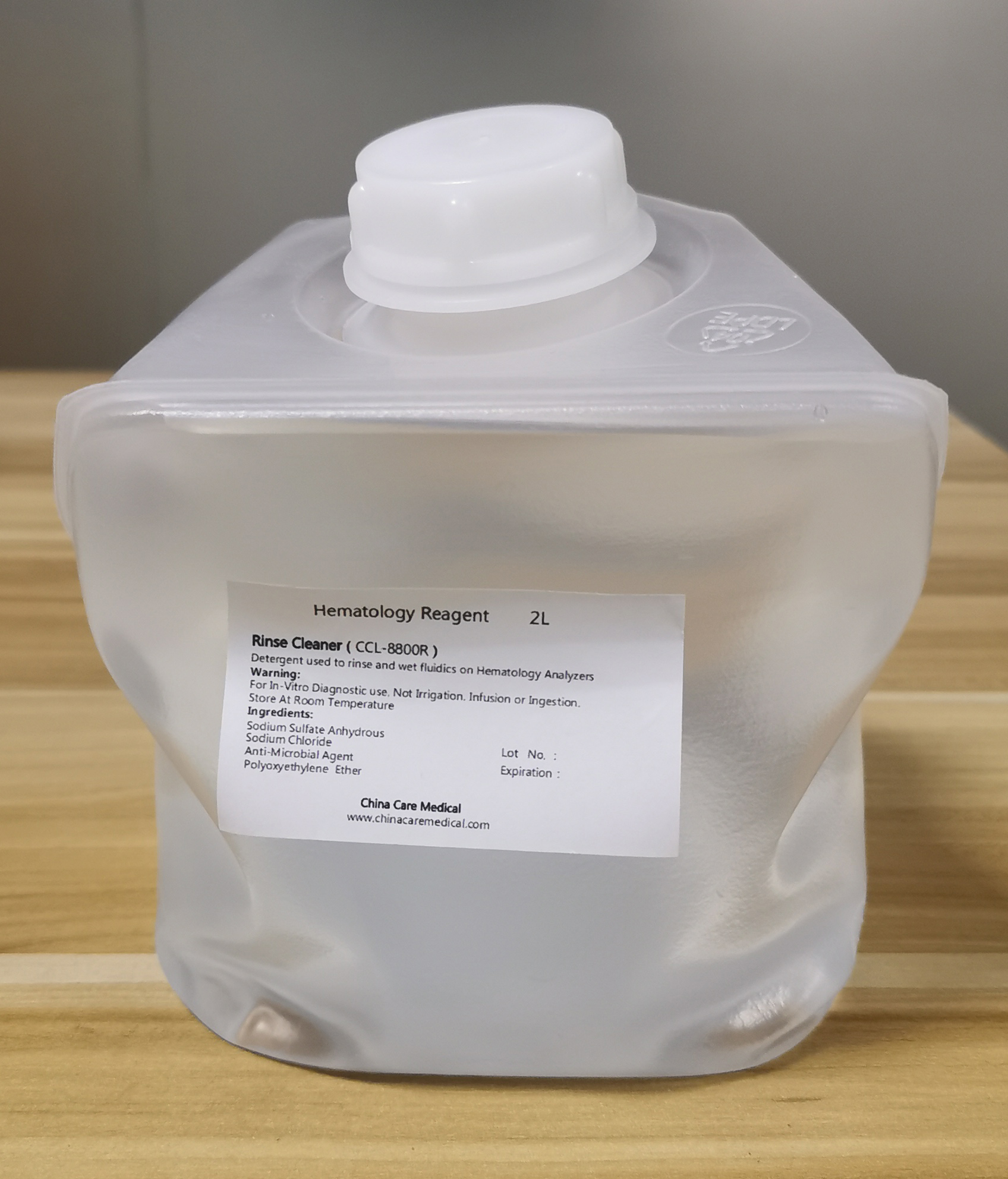

RINSE, 1L (can be offer freely, please remind us. if without remind, we wont ship it)

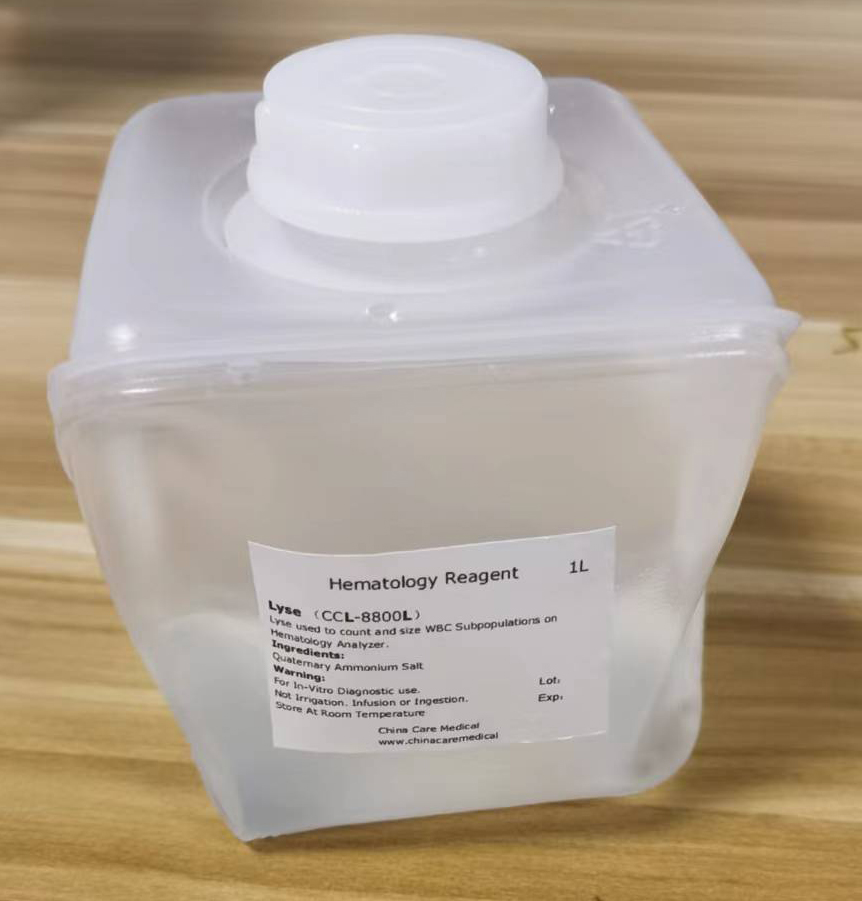

LYSER, 200ML (can be offer freely, please remind us. if without remind, we wont ship it)

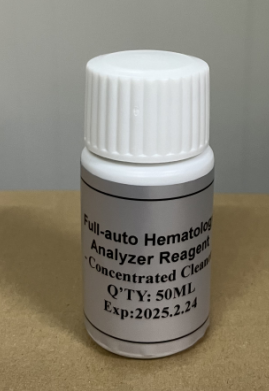

CONDENCE RINSE, 50ML (can be offer freely, please remind us. if without remind, we wont ship it)

Our Reagent Expire time is ONE AND HALF YEAR
The is liquid, it is difficult to ship by air. we suggest you buy several sets then ship together by sea.
Or you can also buy other brand Reagent from your native market.
Following Reagant brand can be used in our machine also,
Mindray, Beckman, RANDOX, SFRI and other international reagent brand

Everage Reagent Consumption,
install machinery : Diluent : 56 ml     RINSE : 12 ml    lyser : 8 ml
power on             : Diluent : 32 ml      RINSE :  12 ml    lyser : 8 ml
power off            :   Diluent :  6 ml     RINSE : 0 ml    lyser : 0 ml
test one time       :  Diluent : 35 ml      RINSE:   6 ml     lyser : 0.6 ml

Main Technical Specifications for automated cell counter,
Methodology: Electrical resistance for counting, hemoglobin cyanide method and SFT method for hemoglobin
Parameter: 3-part differentiation of WBC; 20 parameters and 3 color histograms (WBC, RBC, PLT)
Work mode : Single Channel + unique Hemoglobin test system
Sample volume: 9.6μL for Venous and capillary mode, 20μL for pre-diluted mode
Throughput: More than 35 samples per hour, operate 24 hours a day, auto sleeping and waking-up functions
Storage: up to 100000 sample results including histograms can be stored, convenient for inquiry and management of history data
Operation langue: English, Chinese
QC control : X-B, L-J, X , SD, CV %
Reference Value Setting : Male , Female, Children, Neonate
Alarm : 25 test of alert messages
Input / output : RS232, parallel printer and keyboard
Print : Graphic thermal printer with various printing format, optional external printer
Temperature : 18℃ - 30℃,wet ≤ 10-90%
Power supply : 220 V ±22 VAC, 50±1Hz
Dimension : 33 CM ( L ) * 38 CM ( W ) * 43 CM ( H )
Weight : 20 KG

Precision for automated cell counter.
Parameters                 linear range            CV %
WBC( 10 9 / L )              0.0 - 99.9              ≤2%
RBC ( 1012 / L )              0.0 - 9.99             ≤1.5%
MCV ( fL )                  40-150                ≤0.5%
PLT ( 10 9 / L )              0-999                  ≤4.0%
HGB( g/L )                 0.0-300.0               ≤1.5%

Parameters for automated cell counter.
WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB,HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV,PDW,PCT,L-PCR
3 –histograms : WBC,RBC and PLT

Test Report Sample
