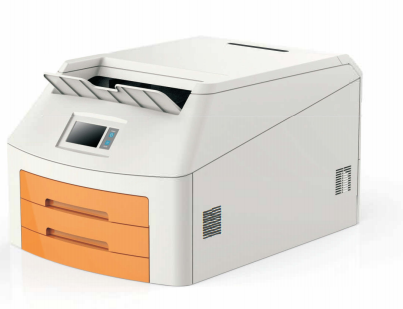

The Dry lmager is a thermo-graphic film processor designed to copy and send images through DICOM network protocol. It uses the latestdirect dry thermal
imaging technologywhich accommodates for afullrange of modalities includingCT, MRI, DR, CR, DigitalGastrointestinal, Nuclear Medicine, Mobile X-Ray Imaging, and Dentistry,
etc. The Dry lmager dedicates to precision in diagnosis with its outstanding image quality, and offers affordable imaging catering to your needs.


Model	CCX430DY	CCX460DY	CCX760DY
Print Technology	Direct thermal (dry, daylight-load film)
Spatial Resolution	320dpi (12.6 pixels/mm)		508dpi (20 pixels/mm)
Throughput	14"x17" >=70 sheets/h; 8"x10"  >=90 sheets/h		14"x17''>= 60 sheets/h;8"x10">=80 sheets/h
Grayscale Resolution	14 bits
Film Transferring Method	Rubbing
Film Tray	One supply tray,100-sheet capacity total	Two supply trays, 200-sheet capacity total
Film Sizes	8"x10", 10"x12", 11"x14",14"x17"
Applicable Film	Medical Dry Thermal Film (blue or clear base)
Interface	10/100/1000 Base-T Ethernet (RJ-45)
Network Protocols	Standard DICOM 3.0 connection
Image Quality	Automatic calibration using built-in densitometer
Control Panel	Touch Screen, Online Display, Alert, Fault and Active
Power Supply	100-240V AC 50/60Hz 600W
Weight	50Kg
Operating Temperature	5"C-35°C
Operating Humidity	35%-85%
Storage Humidity	30%-95%
Storage Temperature	below -22°C-50°C
Base Holding	Optional
