Conform to international safety standards and regulations
Powerful centrifugal force of 15100xg and max. speed of 15000rpm ideal for various applications
Brushless DC motor drive quickly accelerates the rotor to set speed
Quiet working, Low noise ≤56dB
CCL-D2012 is proven by IEC/EN 61010-1
CCL-D2012 Plus passed the rigorous explosion-proof test and accredited with CE, cTUVus, FCC certificates, and MCA test. MCA test according to IEC/EN61010-2-20

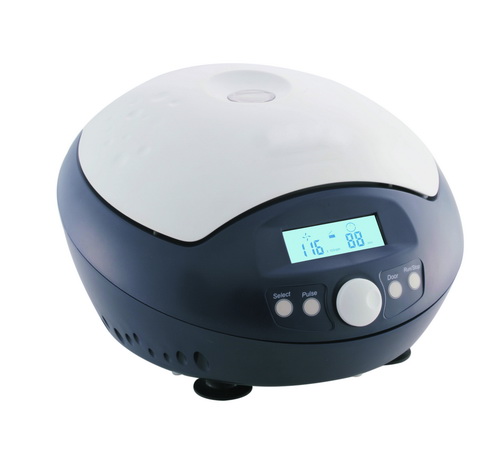

                       Picture of High Speed portable centrifuge machine

Powerful personal centrifuge for High Speed portable centrifuge machine
• Powerful centrifugal force 15100xg and Max speed 15000rpm, serves many applications
• Brushless DC motor drive quickly and effortlessly accelerates the rotor to the set speed
• The rotor is designed for 1.5/2.0mL tubes and smaller 0.2mL and 0.5mL tubes through use of adapters.

Specifications for High Speed portable centrifuge machine
Max. Speed : 15000rpm(500-15000rpm), increment: 100rpm
Max. RCF: 15100×g, increment: 100×g
Speed Accuracy: ±20rpm
Rotor Capacity: 0.2mL/0.5mL/1.5mL/2mL×12
Run Time: 30sec-99min/Continuous
Driving Motor: Brushless DC motor
Safety Devices: Over-speed detection,Over-temperature detection,Automatic internal diagnosis
Power: Single-phase, AC110V-240V, 50Hz/60Hz, 3A, 100W
Noise level: ≤54dB
Acceleration/Braking time: 11s↑/9s↓
Dimension[D×W×H]: 255×245×140mm
Weight: 6kg
Certification: EMC, CE, FCC, ICES, cTUVus, CB
Advanced features: Speed/RCF switch, Short-time run function,sound-alert function

Standard Configuration for High Speed portable centrifuge machine
High Speed Mini Centrifuge (CE marked),
with A12-2P plastic rotor kit (package contain in the box)

Optional Information for High Speed portable centrifuge machine
A12-2P,

Plastic rotor kit with lid (blank LOGO), fixing clips and O'ring, 15000rpm, 2ml*12, used with D2012 plus

A02P2,

2ml to 0.2ml rotor adapter, used with A12-2, A12-2P, AS24-2 and A24-2P rotors，24pcs/pk

A05P2,

2ml to 0.5ml rotor adapter, used with  A12-2, A12-2P, AS24-2 and A24-2P rotors，24pcs/pk
