The centrifuge can process a volume of up to 3 liters, offering a complete solution in separation of samples to be centrifuged for blood bank center, research labs, clinic, bio-technology, industry and hospitals.
The large selection of rotors and adapters, Ac converter motor maintenance free, a software allows the operator to control the configuration parameters easily, the control panel provides the user with an easy to handle machine an ally in the daily tasks.

Feature

1. Induction motor maintenance free.
2. Controlled by microprocessor.
3. Large scree, touch panel , shows rotor code, rpm, rcf, time etc.
4. Lid open programmable, motorized.
5. Lid dropping protection.
6. Imbalance cut off.
7. Manual emergency lid release( very useful in unexpected power
8.  interruption)
9. Can’t run when lid open, neither open the lid when rotor runs.

Technical parameters

Model	CCL-DL5M	CCL-DL6M
Max Speed	5000r/min	6000r/min
Speed Accuracy	±20rpm	±20rpm
Max RCF	4390×g	5120×g
Timer Range	0~99min	0~99min
Temperature Range	-20℃~+40℃	-20℃~+40℃
Motor	Converter motor	Converter motor
Screen	Touch LCD Display	Touch LCD Display
Acceleration/Deceleration Rate	0~9 grade	0~9 grade
Noise	≤65dB(A)	≤65dB(A)
Power Supply	AC220V & 110V 50Hz 5A	AC220V & 110V 50Hz 5A
Dimension	800×600×825mm(L×W×H)	800×600×825mm(L×W×H)
Weight	150kg	150kg

Note: Main Unit must use at least one set of rotor.

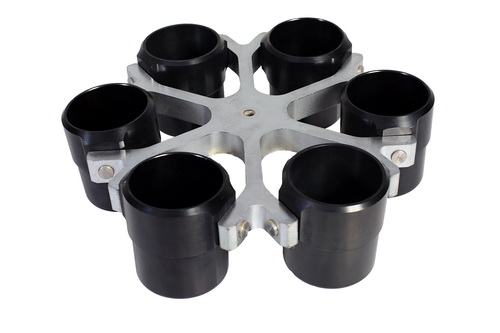

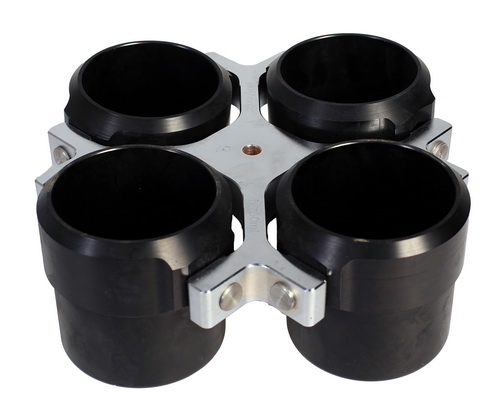

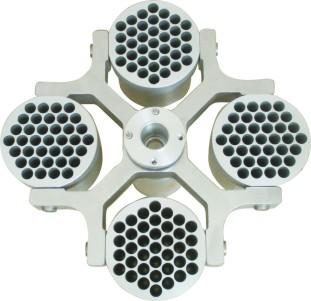

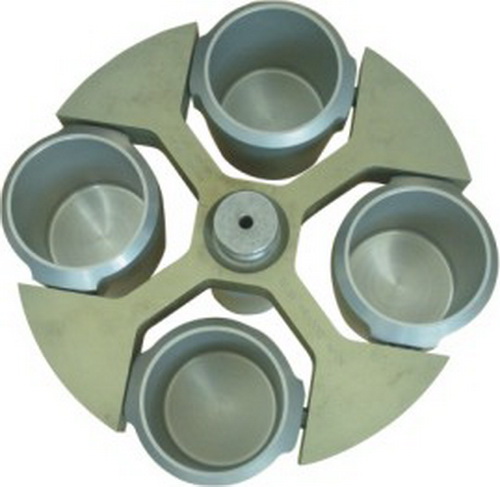

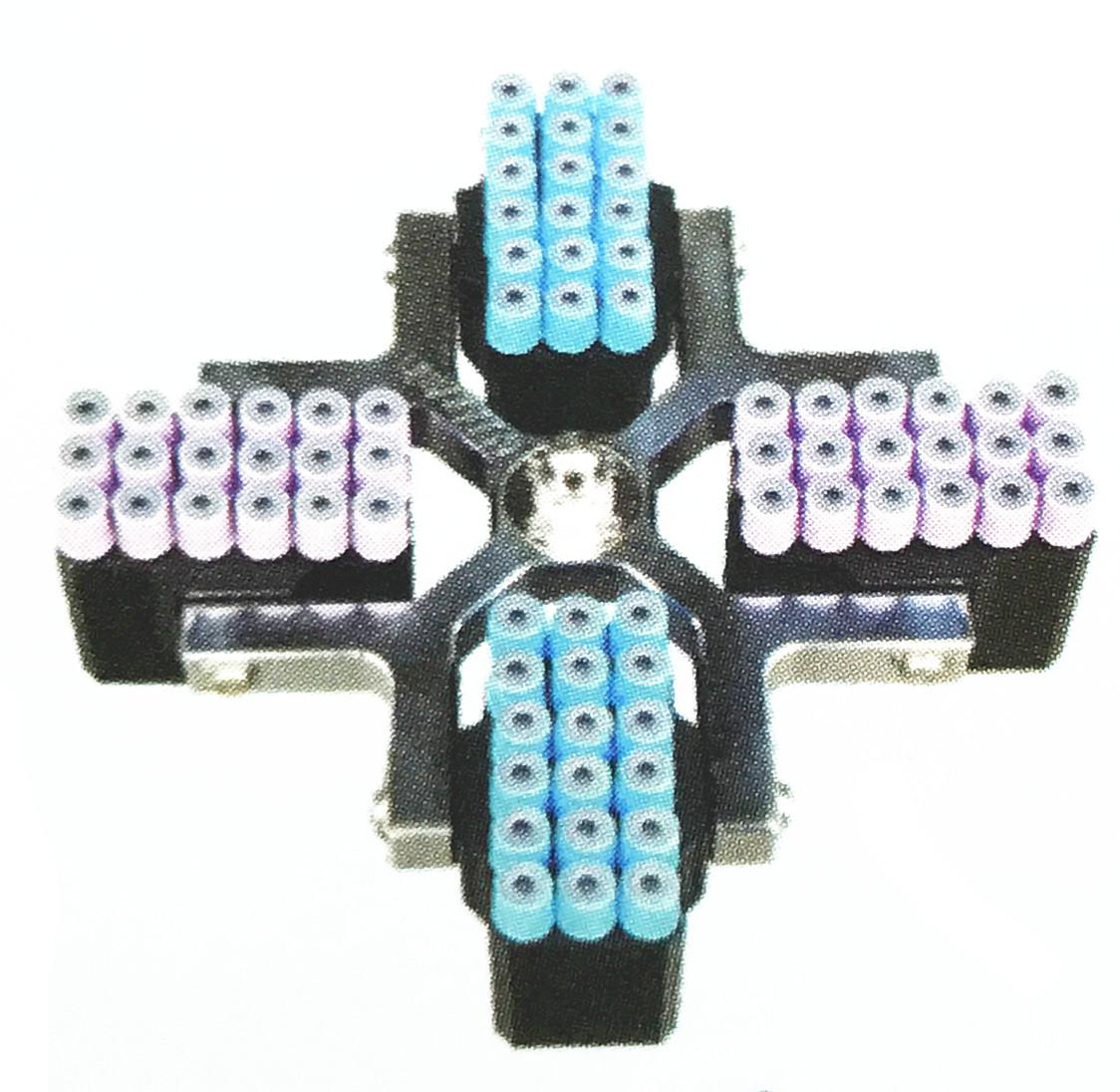

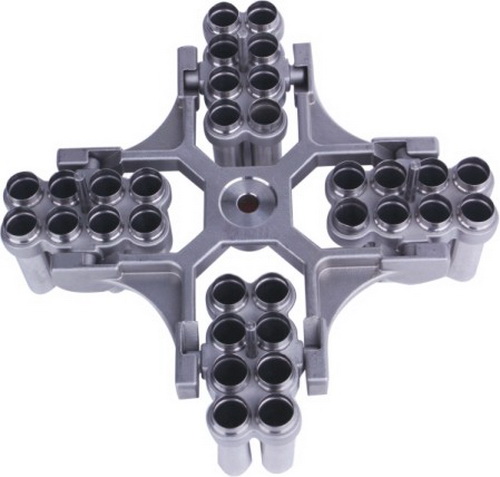

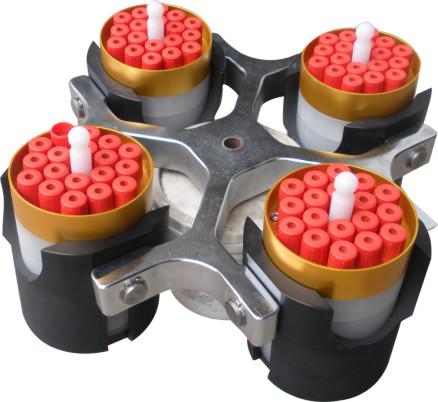

Rotor Optional,
No.1,

Max Speed:5000r/min
Max Capacity:12×15/10ml
Max RCF:4390xg

No.2

Max Speed:4000r/min
Max Capacity:148×15/10ml
Max RCF:3000xg

No.3


Max Speed:4000r/min
Max Capacity:4×100ml
Max RCF:2810xg

No.4

Max Speed:4000r/min
Max Capacity:32×10/15ml
Max RCF:2810xg

No.5

Max Speed:4000r/min
Max Capacity:48×5/7ml
Max RCF:2810xg

No.6

Max Speed:4000r/min
Max Capacity:72×5/7ml
Max RCF:3400xg

No.7

Max Speed:4000r/min
Max Capacity:4×250ml
Max RCF:2990xg

No.8


Max Speed:4000r/min
Max Capacity:4×500ml
Max RCF:3600xg

No.9

Max Speed:4000r/min
Max Capacity:4×500ml blood bag
Max RCF:3780xg

No.10

Max Speed:4000r/min
Max Capacity:6×500ml
Max RCF:4390xg

No.11

Max Speed:4000r/min
Max Capacity:4×750ml
Bottle, with rotor cover, blood bag.
Max RCF:3780xg
