Description
User Manual

Specifications

Type: TableTop Speed Type: High Speed (≥10000rpm) Max speed rpm: 15000 Application: Beauty, Hematocrit, Blood Bank, Cell Smear

Features for microfuge:
Special multi-flow air cooling design with patent ensures fast cooling of the rotor and low energy consumption
Unique temperature display appropriate for gentle handling of sensitive samples,
Bio-safe rotor/anti-sample overflow prevents accidental leakage during centrifugal process allowing risk-free microbial contamination,
High strength aluminum alloy rotor can be fully autoclaved for unlimited service life
Four rotors are optional complete with 24 places 1.5/2.0mL tubes, bigger 5.0mL, smaller 0.2mL and 0.5mL tubes with adapters.

Specifications for microfuge,
Max. Speed : 15000rpm(200-15000rpm), increment:10rpm
Max. RCF: 21380×g, increment:10×g
Speed Accuracy: ±20rpm
Rotor Capacity: 5mL×18, 5mL culture tubex12,0.2mL/0.5mL/1.5mL/ 2mL×24, 0.5mL×36,PCR8×4
Run Time: 30sec-99min/Continuous
Driving Motor: Brushless DC motor
Safety Devices: Dual door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis

Power: Single-phase, AC110V-240V, 50Hz/60Hz, 3A, 200W
Noise level: ≤54dB
Acceleration/Braking time: 25s↑25s↓
Dimension[D×W×H]: 280×364×266mm
Weight: 12kg
Certification: CE cTÜVus FCC MCA
Advanced features: Speed/RCF switch; Short-time run function; sound-alert function

microfuge range is widely used in physical and chemistry analysis, biochemistry, cellular and molecular biology, clinical Labs and blood donation centers, and is ideal for high-end research applications:
Sedimentation of cells and viruses
Separation of sub-cellular organelles
Isolation of macromolecules such as DNA, RNA, proteins or lipids

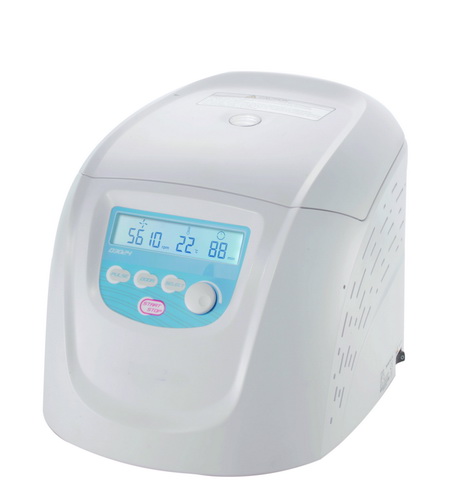

Picture of microfuge

Advantages for microfuge
☆ Conforms to international safety standards and regulations
- it is the first Centrifuge manufacturer in China that cooperates with TUV Rheinland Company and its Centrifuges have passed CB scheme by TUV Rheinland China and marked with CE, cTUVus and FCC.
All test items are positive which according to IEC/EN 61010-1 and MCA test according to IEC/EN61010-2-20, including explosion-proof and bio-safe tests.
- Quiet and stable operation for the lab
- High strength metal casing ensures security of centrifugal process
- Dual door interlock design for safety
- Gentle braking at low speed with efficient separation

Unique Features for microfuge
- Special multi-flow air cooling design（Patent No. 201120322916.0）helps keep lower rotor temperature
- Unique temperature display protects sensitive samples

Rotor capacity
- Bio-safe rotor/anti-sample overflow ensures the samples do not leak during the centrifugal process helps prevent microbial contamination
- High strength aluminum alloy rotor can be fully autoclaved, with unlimited service life
- Four rotors are optional, comes with 24 x 1.5/2.0ml tubes. Smaller 0.2ml and 0.5ml tubes can be used with adapters

Precise control
- Brushless DC motor accelerates quickly and effortlessly to the set speed
- High accuracy of speed in ±20 rpm
- Operation can be timed from 30 seconds to 99 minutes or used in continuous mode
- Timer starts once the target speed reached, for accurate separation time

Ergonomic design
- User-friendly large LCD display shows running information
- Both RPM or G-force can be set and displayed
- The parameters can be modified after the set speed is reached.
- The short spin function is used for quick spins by pressing and holding PULSE key. The centrifuge speed can be accelerated and held at the target speed.
- Automatic release of lid when the rotor stops to save processing time (excluding D3024R)
- Easy-to-read display and sound alerts

Configuration
High Speed Micro-Centrifuge，
with AS24-2 aluminum alloy rotor kit 19400006(package contain in the box)

Optional Accessories
AS18-5,

Max. speed: 15000rpm
Max. RCF: 21380×g
Rotor capacity: 2mL/1.5mL×24/0.2mL×24/0.5mL×24
Rotor material: Aluminum alloy
Bio-safe(Bio sealing): Yes
Available rotor adapters: A02P2,A05P2
Aluminum alloy rotor kit with lid (blank LOGO), fixing clips and O'ring, 15000rpm, 5ml*18

AS12-5V,

Max. speed: 15000rpm
Max. RCF: 21380×g
Rotor capacity: 5mL×12(culture tube)
Rotor material: Aluminum alloy
Bio-safe(Bio sealing): Yes
Aluminum alloy rotor kit with lid (blank LOGO), fixing clips and O'ring, 15000rpm, 5ml*12(eppendrof tube)

AS24-2,

Aluminum alloy rotor kit with lid (blank LOGO), fixing clips and O'ring, 15000rpm, 2ml/1.5ml*24

AS36-05,
Max. speed: 15000rpm
Max. RCF: 21380×g
Rotor capacity: 0.5mL×36,0.2mL×36
Rotor material: Aluminum alloy
Bio-safe(Bio sealing): Yes
Available rotor adapters: A02P05
Aluminum alloy rotor kit with lid (blank LOGO), fixing clips and O'ring, 15000rpm, 0.5ml*36

AS4-PCR8,

Max. speed: 15000rpm
Max. RCF: 21380×g
Rotor capacity:0.2mL/PCR8×4
Rotor material: Aluminum alloy
Bio-safe(Bio sealing): Yes
Aluminum alloy rotor kit with lid (blank LOGO), fixing clips and O'ring, 15000rpm, 4*PCR8

A02P2,
