Description
Optional Information

Specifications

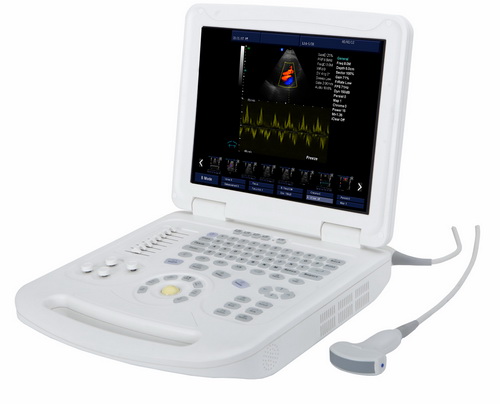

Application: Abdomen, OB/GYN, Small Parts, Vascular, Anaesthesia, Emergency, Breast, Veterinary Style: Portable Types: Color Doppler

Standard configuration
1, 15inches LCD main unit without any probes;
2, one probe sockets;
3, USB,VGA,VIDEO,PRINT,dicom ports;
4, Pw, thi, tdi, itouch,color dopper;
5, Ful digital Windows xp system
6, 18months warranty 64G hard disk
7,Convex Probe
Display mode
B&W mode: B, 2B, B/M, B/C
Color Doppler mode: CFM, PDI, PW
Duplex: Real-time simultaneous 2D, Doppler
Gray scale: 256
Display: 15 inches LCD monitor
Transducer frequency: 2.5-10 MHz
Digital technology: Dynamic Receiving Focusing (DRF)
                Dynamic Frequency Scanning (DFS)
Scanning depth: 300mm
Imaging Processing
Pre-processing:   8-segment TGC
                Preset
                Gain (B&W, Color, Doppler)
                Audio
                PRF
                Dynamic Range
                Image enhancement
                Acoustic Power
Post-processing: gray map
               Black/white reverse
               Left/right reverse
               Up/down reverse

Functions:
Cine-loop:      1000 frame cine loop memory
Storage media:   64G massive image-storage capacity
Zoom:         Pan Zoom
USB ports:     2
THI:          tissue harmonic imaging

ITouch
IClear Imaging
Measurement & Calculations
B mode: distance, circumference, area, volume, angle, fetal growth, cruve
M mode: distance, time, velocity, heart rate
Software package: abdomen, gynecology, obstetrics, cardiology, small parts, urology Others
Transducer connectors: 1 active transducer connector port
Peripheral ports: video, S-video, VGA, 2 USB ports, Diom ports
Power supply: 100~240VAC+_10%, 50Hz/60Hz

Transducers:
Electronic convex array transducer
Electronic transvagional array transducer
Electronic linear array transducer
Electronic micro-convex transducer

Focusing	Electronic focusing + acoustic lens focusing Transmission focus: single focus, double focus, 3-focus and 4- focus Continuously dynamic focusing mode is used for front end reception
B-type display	Image amplification (real-time or freeze status), max. 4-times
	Image vertical / horizontal overturn
	Display depth is continuously adjustable
M-type display	Scanning speed: 4- stage
Digital beam formation	Image whole range continuous dynamic focusing Image whole range dynamic aperture Image whole range dynamic trace change Image whole range receive delay weight summation Support semi-moment scanning, and support ± 10 ° linear reception deflection angle Multiple beam parallel processing technology
Signal processing and Doppler	Provided with dynamic filtering and orthogonal demodulation Provided with total gain adjustment Gain adjustment: 8-segment TGC B-type, C-type, D-type total gain, respectively adjustable B/W image gain and color bloodflow gain, respectively adjustable Doppler stereo output volume adjustment : 0-255 Doppler baseline adjustment : 6-stage Pulse repetition frequency can be respectively adjusted: CFM PWD Provided with D-linear speed adjustment
Image processing function	Image realizes dynamic range conversion and logarithm compression Image realizes time filtering Image realizes spatial filtering Image realizes frame correlation Image realizes edge enhancement Image realizes grey scale convertion Provided with selection of B\|M-type or M-type scanning speed Provided with high-density and high frame frequency selection Provided with image convex array scanning angle, linear array scanning depth control Provided with image optimized processing: 6-stage Image left/right, up/down overturn Color grey scale bar inversion selection B/W image resolution 1024 × 768 × 8 bit (256 grey scale) Color image resolution: 1024 × 768 8 bit × 8bit × 8 bit color coding
Basic measurement Calculation function	B mode basic measurement: distance, angle, perimeter and area(ellipse method, trace method), volume, stenosis, column diagram, cross-section diagram
	M-mode basic measurement: heart-rate, time, distance, speed
	Doppler measurement: time, heart rate, speed, acceleration
Obstetrics measurement Calculation function	Gestational sac(GS), biparietal diameter (BPD), cephalo-rump length(CRL), femur length (FL), Humerus length (HL), Transverse Abdominal Diameter (TAD), backbone length (LV), occipitofrontal diameter (OFD), Abdominal circumference (AC), head circumference (HC), estimation of parietal transparent length, gestational age and expected date of childbirth.
Obstetrics report	Measure and calculate amniotic fluid index(AFI) Calculate the rate (BPD/OFD, FL/AC, FL/BPD, HC/AC） Estimate fetus weight Infer the gesattional weeks and expected date of childbirth according to LMP , BBT Fetal Biophysical Score Fetus growth curve
Gynaecology measurement Calculation function	Measurement and calculation of uterus, left ovary, right ovary, left follicle, right follicle etc
Andrology measurement Calculation function	Measurement and calculation of prostate, testicle etc Calculation of prostate peculiar antigen predicted value PPSA, and prostate peculiar antigen density PSAD
Urology measurement Calculation function	Measurement and calculation of left kidney, right kidney, bladder, residual urine volume etc.
Peripheral blood vessel measurement Calculation function	Measurement and calculation of area stenosis rate, tube diameter stenosis rate
Small parts measurement Calculation function	Measurement and calculation of thyroid, breast , enclosed mass etc
Cardiac measurement Calculation function	Cardiac measurement software packet – providing analysis and measurement method for heart rate, speed, left ventricle, aorta, mitral valve, ventricle (right/left) Area stenosis rate percentage (％Area Sten), tube stenosis rate percentage (％Diam Sten) Body surface area (BSA).
Memory Function	Probe parameters memory Image memory Cine memory Measurement result memory Report memory
Cine function	Auto playback Manual playback Playback speed selection Retrieval playback Forward/reverse playback frame by frame
Reports	Obstetrics report Gynaecology report Uology report Andrology report Cardiac report (left ventricle, aorta, mitral valve, ventricule ) Add ultrasonic imgae in report Directory management File management
Grey scale	256 Grey scale
Input/Output interface	Network interface USB interface Video interface Serial communication interface
Probes	Probe socket: 1 PCS Probe frequency: 2.5MHz～10.0MHz, 8-stage multi-frequency
Probe class	Large convex array, micro- convex array, high-frequency linear array, transvaginal probe
Software upgrading functions	Available
Liquid Crystal Display	SVGA line-by-line, flashless,15 inch high resolution LCD
Power supply	Built-in switching power supply: input power ≤150VA Power supply adaption range: 220V ± 10％，50Hz ± 1Hz (AC)

Optional
7.5Mhz high frequency linear probe

5.0Mhz micro-convex array probe

7.5 Mhz transvaginal probe

7.5Mhz Trans-rectal probe

3.5Mhz convex array probe

Printer
Any Video Printer, you can buy from your native market.
We suggested model is Mitsubishi Brand Video Printer P93C
