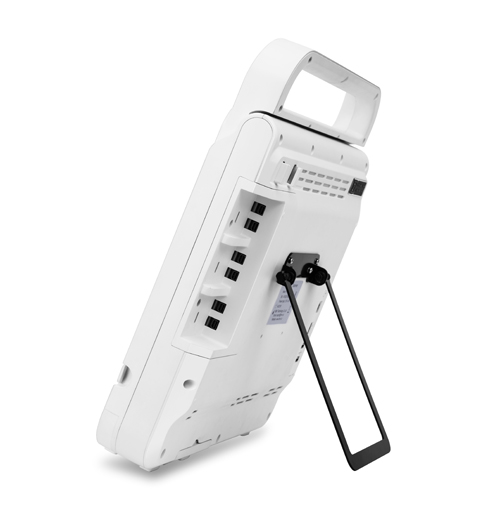

CCPT50C Touch Color Doppler Ultrasound Scanner System
Technical  Specification



CCPT50C Unique Selling Point:
1#	Ergonomic Design	Up to 3 Transducer Ports
		Light Weight and Compact
		Large Anti‐flickering HD Screen
		Tilting Monitor Angle Adjustment
		Long‐ lasting Battery
2#	Ease of Use	Touch, enhance exam productivity also minimize most of users learning curve.
		Auto Image Optimized
		Simply software work flow
		Wi‐ Fi Available
		“Station” for patient management	Entry level color Doppler systems
3#	Expansive Accessories	DICOM 3.0	for professional practicer,very
		Height Adjustable Trolley
		Durable, Carry‐on Site Suitcase
4#	Efficient Diagnosis	Spatial Compound Imaging
		Wide‐angle imaging
		Panoramic focusing technology
		Tissue Specific Imaging


1       System Overview
Standard Features:              An entry‐ level fully‐featured touch Color Doppler ultrasound system, CCPT50C employs the advanced
technologies and ergonomic concept developed for next generation imaging systems, in all applications. Simple touch to save time, this simple operation helps enhance exam productivity and increase patient  throughput, also minimize most of users learning curve. In additional, CCPT50C is the most lightweight        hand‐carried portable ultrasound with three probe ports in the world, deliver superb image quality in     many clinics, hospitals or practice settings across multiple examinations.
Application scenarios:         • Applicable to different body scans, for example, Abdomen,Obstetrics,Gynecology,Cardiology,Small
Parts,Urology,Kidney,MSK(Musculoskeletal);Carotid; Orthopedic; Vascular
•  and varied user environment. Ultrasonography, emergency, operating room, ICU, ward and out‐call, etc
Based on linux, stable performance, security data
B,B&M,2B,4B,B+Color,B+Power,PW
256
Convex Array,Linear Array,Endocavity Array
2‐ 12Mhz
3 active transducer connectors support quick switch between different probe needs,unique micro connector
up to 300mm


Language:                              Software: English, Chinese, Spanish,Russian,Italian, Czech , and more(ODM support!)
Keyboard Input: English, Chinese, and more(ODM support!)
User Manual: English, Chinese
2       Physical Spec
System Dimension:              Height: 402 mm Width: 385mm Depth: 53mm
Weight:                                   Around 4.8 kg (Include Battery)
Monitor:                                  • 15' high resolution LCD monitor with tilting to view it freely and comfortably
• Resolution: 1024×768
• Brightness Adjustable
• Max Opening Angle:45°
Touchscreen:                         Fully resistive touch screen/
capacitive touch screen(reserved)
Transducer element :          128
Power:                                     System operates via AC power & battery
AC Adapter:                           • Model:MANGO‐ ChinaCare‐ 15AD
• Voltage: 100‐ 240VAC
• Frequency: 50/60 Hz
• Currency: 5A
• Output: 15V
Battery:  (optional)               • Model: LY606090
• Lithium‐ Ion, 11.1V , 7000mAH
• Charge to Full: 6 hours
• Max Duration: 180 minutes realtime scan *
* vary on the configuration and different working condition, for more details to contact the sales.
Operating Evironment:       • Temperature: 0‐40 °C
• Humidity: 30%‐85% (non‐condensing)
• Pressure: 700hPa‐ 1060hPa
Storage and Transport:       • Temperature: ‐ 20‐55 °C
• Humidity: 30%‐95%(non‐condensing)
• Pressure: 700hPa‐ 1060hPa
3       User Interface
Control Panel:                        • Easily be adjusted to the user's preferred height( up to 45°)
• iBscan™ Quick Image Optimization
• Image clip board for thumbnail view
Boot‐ up and Power off:      • Hard boot‐ up in 35s
• Power off in 1s
Comment:                               • Text and arrow available
• Size of text and arrow adjustable
• Set home position for comment initiation
• Full packages for all application
• User‐defined text
Bodymark:                              • Bodymark patterns for all application
• Support transducer mark

Screen Displayed Info*:      • ChinaCare Logo
• Hospital Name
• Exam Date
• Exam Time
• Acoustic Power
• MI
• ID, Name
• Probe
• TGC Curve
• Focus Position
• Thumbnail
• Image Parameters
*Not all items are listed in here, please refer to user manual for detailed info.
4       Imaging Processing
Dynamic imaging                 Wide‐angle imaging
technologies:                         Panoramic focusing technology
Rolling M technology
THI:                                          Tissue Harmonic Imaging
Pre‐processing:                     Cloud processing technology
8‐segment TGC
Gain(30‐ 120dB)
Dynamic range
Persisitence
M Soften
Noise suppression
Post‐processing:                   Image enhancement
Gray Map
Pseudo Color Map
Tissue Specific Imaging
Left/right reverse
Up/down reverse
5       Measurement & Calculations
B mode:                                   Distance, angle, area, volume, trace length, distance ratio
M mode:                                 Distance, time, slope, Heart Rate
Software packages:             abdomen, cardiac, gynecology, obstetrics, urology,, small parts (thyroid), etc. *
*Individual Measurements and Calculation packages for different applications.
6       Input and Output
HDMI:                                      1
WIFI                                         1
USB 3.0:                                  2
MIC:                                         1
DC in:                                       1
DICOM3.0*:     (optional)    1
*DICOM3.0 Connect by WIFI,this is optional function.
7       Storage and Data Management
Storage:                                  • SSD for patient data
• Digital formate storage of single frame

Exam Management:            • “Station” for patient management
• Patient quick search and retrieve
• Able to review current exam and past exam
• Support new exam, activate exam, continue exam
• Able to measure on stored images and cines
• Able to export file as JPG/AVI
• Able to back up data to USB device
8       Connectivity
Network Connection:           • WIFI
• Ethernet(reserved)
DICOM 3.0 (optional):         • DICOM Basic
‐ Print
‐Storage
9       Multi‐frequency probes
Convex probes


C5‐2Ds  color Doppler	Applications:ABD, Renal, ABD‐Vascular, Ped‐ABD, GYN, OB, Fetal Heart, Urology, Prostate
Convex probe(standard	Frequency Bandwidth: 2.0‐5.0MHz
configuration):	Central frequency: 3.5 MHz Radius: 60 mm View angle: 61 degrees Scanning Depth: 30‐300 mm Element: 128 Biopsy guide available
C8‐5Cc  color Doppler	Applications:Pediatric, fetal heart
Micro convex probe:	Frequency Bandwidth: 5.0‐9.0 MHz Center frequency: 6.5 MHz Radius: 15 mm View angle: 100.7 degrees Scanning Depth: 10~150 mm Element: 128
E10‐4Cs  color Doppler	Applications:Early OB, OB/GYN, Urology
Trans‐ vaginal probe:	Frequency Bandwidth: 5.0‐9.0 MHz Center frequency: 6.5 MHz Radius: 13 mm View angle: 150 degrees Scanning Depth: 10~150 mm Element: 128
Linear probes
L11‐4Ds  color Doppler	Applications: Vascular,Carotid,P‐Arterial,SMP,Thyroid,Breast,Testicle,SmEye,MSK, ABD
Linear probe:	Frequency Bandwidth: 5.0‐ 10.0 MHz Center frequency: 7.5MHz Scanning width: 40 mm Scanning Depth: 10~184 mm Element: 128 Biopsy guide available

10     Peripherals and Accessories (Optional)
MITSUBISHI P93W

• High Speed Printing
• High‐density 325 dpi thermal Head •Worldwide compatibility
•Simple and Convenience to Operate
Digital B/W Video Printer: SONY UP‐895MD
‐ Built‐ in WIFI Adapter
• Encryption: WPA/WP2/WPAI, 64/128/152‐ bit WEP, WPS
• Max transfer speed: 150Mbps
• Protocol: 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Graph / text printer:            HP DeskJet F2418 、HP DeskJet D2568 、HP Deskjet 2050 、HP Deskjet 1050 J410 、HP Deskjet 2520hc、
HP Laserjet M1005 、HP Laserjet P2035 、HP Laserjet P1102 、HP Laserjet P1102w 、HP Laserjet P1108
、HP Laser Jet 1536dnf MFP, and more!
11     Certificate and Security


Quality Certificate    Complied Standards

ISO 9001,ISO 13485
CSA C22.2 No. 601‐ 1
EN 60601‐ 1 and IEC 60601‐ 1
EN 60601‐ 1‐ 2 and IEC 60601‐ 1‐ 2
EN 60601‐ 1‐ 6 and IEC 60601‐ 1‐ 6
EN 60601‐ 2‐37 and IEC60601‐ 2‐37
EN 62304 and IEC 62304
EN 62366 and IEC 62366
EN ISO 17664 and ISO 17664

12     Standard Configurations
CCPT50C Systems
15" high definition LCD monitor
Touchscreen
C5‐2Ds convex array transducer
WIFI module
Two USB ports
One s‐ video out port
One HDMI port
One power inlet
Three transducer connectors
Two special‐designed probe holder
Plenty of measurement&calculation software packages
lithium Battery Supporting normal diagnosis
User defined exam settings
12 months warranty since ex‐factory date for main unit
12 months warranty since ex‐factory date for probes

13     Opions:
Convex array transducer
Linear array transducer
Endocavity transducer
High frequency linear probe
Micro convex probe

Optional

Rectal linear probe
Needle‐guided brackets
