Description

Specifications

MA: 200ma Type: Stationary

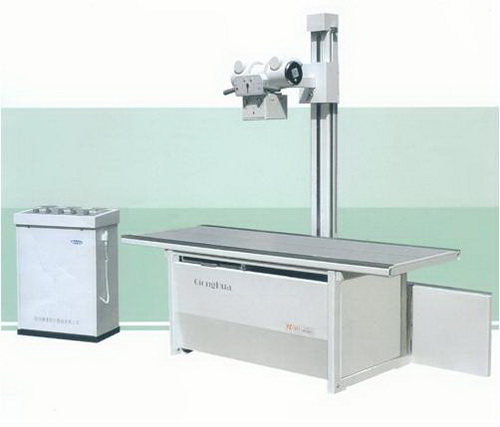

1. Single bed with single tube
2. Rotary anode X-ray tube unit tangential annular tubes,
3. Single-phase full-wave rectification high-voltage generator
4. Power volage(V) photograph kilovolt(kV),infinitely variable control and electric mechanism
5. Be equipped with the manostat for the filament of X-ray tube and space charge complementor
6. Photographic volume, kV, mA and s, subsection, grading and interlock protection
7. Adopt the digital circuit timer. Grading according to R10 pririty coefficient, which is exact in time control.
8. High-voltage primary uses the zero controlled circuit of silicon-controlled rectifier of large power
9. Photographic bed of the 200mA Medical X-ray Equipment can move in length and breadth.
10 The photographic bed, upright and vibrating ray-filter of the 200mA Medical X-ray Equipment are in a whole without top and bottom track.

Specifications,

Power supply	Adjustable range	With power supply 380V 340V—420V
		With power supply 220V 195V—250V
Fluoroscopy	Adjustable range of tube voltage	50~95kV (Can adjust continuously)
	Adjustable range of tube current	0.5~5mA (Can adjust continuously)
	Adjustable range of tube voltage	50~100kV (Can adjust continuously)
	Adjustable range of tube current	Small focus: 50mA
Radiography		Big focus: 50, 100, 150 and 200mA
	Tube current of spot-film	150mA (fix)
	Adjustable range of time	0.04~6.3s 23 grades together
High-voltage	Max. DC output voltage	100kV
Generator unit	Max. DC output current	200mA at instant 5mA at running
X-ray tube	Model	XD51-20.40/100
	Focus	1mm×1mm 2mm×2mm
	Rotary angle	+90°~0°~-5°
	Move range of gastrointestinal spot-film device (fluorescent screen)	Pressure direction: 300mm
		Horizontal direction: the center of diagnostic bed moves left (right)			±80mm
		Vertical direction: 400mm
Diagnostic bed	Ray-filter for fluoroscopy	Manual single blade
	Distance between focus and bed face:
	At fluoroscopy and gastrointestinal radiography: 400mm(fix)
	Ray-filter tube (device) for radiography (fix X-ray field)	Big (rectangle)	14”×17”	Distance between focus and film=1m
		Middle (rectangle)	10”×12”
		Small (circle)	φ5”

The standard Configuration is without Chest Bucky Stand, It is optional

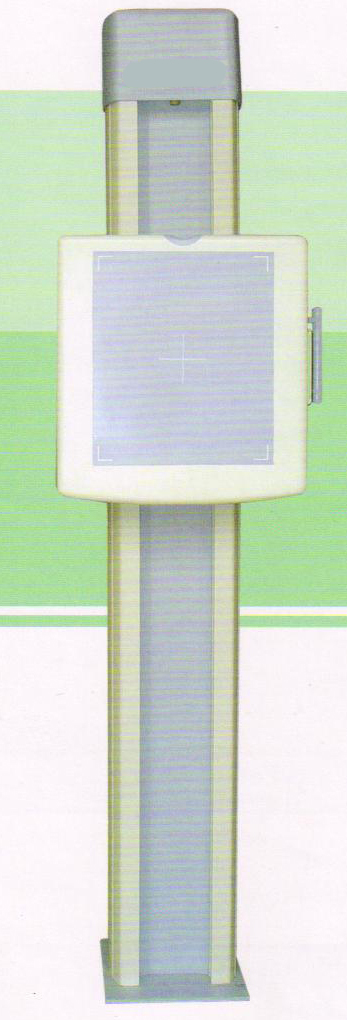

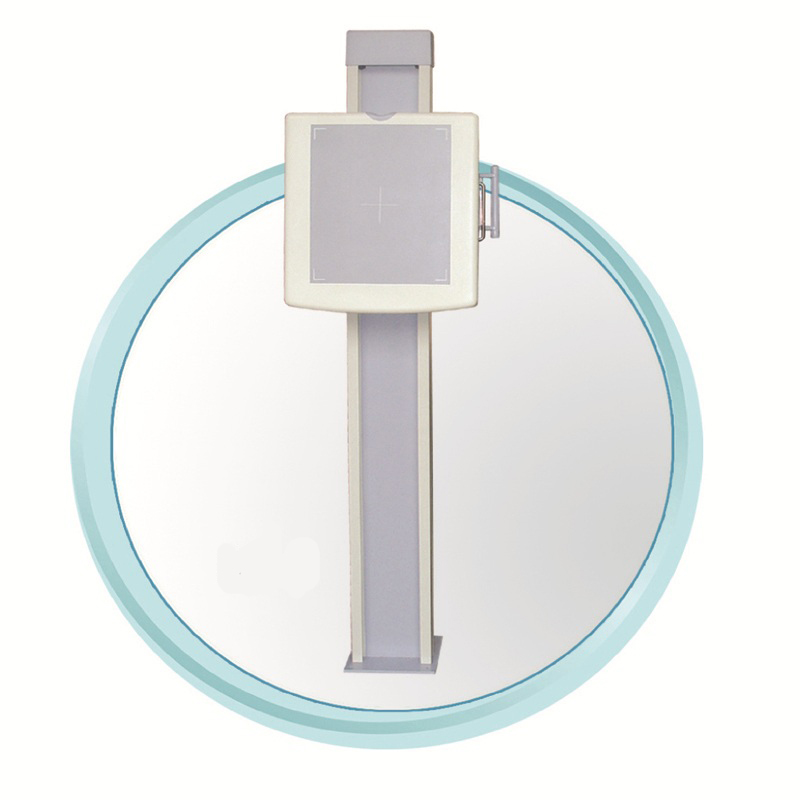

Chest Bucky stand Information

Consists of:
This device consists of grids, cassette drawers, columns, sliding frames and other parts.
1 column
2 sliding frame
3 cassette drawer
4 brake handle
5 groove pulley
6 weight screws
7 floor
8 suspension wire rope

Installation instructions
2.1 Safety Tips:
Equipment, installation and operation of the relevant units, the installation must comply with.
This photo frame is a monolithic chip packaging, the product will balance the heavy hammer before the factory bolt for easy handling, the bolt removed before installation.
2.2 Room conditions:
Environmental conditions: 0 ~ 40 ℃
Relative humidity: ≤ 75%
Atmospheric pressure: 700kpa ~ 1060kpa
Room height: 2700mm above the door width of the receiving equipment room door size of 1200mm width dimension of not less than 900mm
Room construction: room walls, doors and windows of the X-ray protection should comply with relevant regulations, in addition to the environment must fully consider the room temperature, humidity, clean degree, in order to protect the life and appearance of products. Room may not be used within the flammable gas or liquid.
2.3-ray bucky stand in the engine room to determine the installation position must meet the following conditions:
2.3.1-ray film holder in the engine room installation location, you must maintain the holder panel centerline alignment radiography X-ray Center.
2.3.2 Radiography rack-mounted film cassette to the X-ray tube to keep the focus away from the nearest point of 1000mm, the farthest point of ≥ 1500mm.
2.3.3 The ray film photography bed frame and supporting the use of only the X-ray tube head rotated 90 °, to open limit beam splitter lighting to make the limited cross-line alignment beam splitter light chest film frame panel can be centerline, while pulling Open tape, you can easily measure the distance between the focus away from the film.
2.4 that the selected election radiography and X-ray tube frame
To determine the best location between the base position, the water
Mud-based area of not less than 500 × 500mm.
2.4.1 Setting cement base, cement-based subject to the level of
Scale calibration level degrees.
2.4.2.Drill two M8 × 94 I-type expansion bolt hole, and screw in the expansion bolt buried.

Pacakge Information of this Chest stand,
1 Wooden Package, 208*60*46cm, Gross Weight: 127Kg, Net Weight: 100Kg

More detail information about the verticle chest stand, please use our user manual.
/u_file/1803/file/5301a945fe.pdf
