Specifications
For Amplifier:

1. Input channels: 24 Monopolar EEG; 12 channels PSG
2. Power supply: Internal rechargeable lithium battery(16.8v); External charger input: AC100～240V, output DC 19V
3. Connection to PC: Network cable (wireless router)
4. Operation Modes: Real-time
5. A/D conversion: 24 bit
6. Sampling Rate: 256/512/1024Hz per channel
7. Input impedance: ≥100MOhm
8. CMRR: ≥110dB
9. Noise: ≤0.5uVRMS
10. Low-pass filter: 0-120Hz
11. Amplitude-frequency characteristic: 1-60Hz
12. High-pass filter: 0.01-0.3s
13. Dimension & Weight: 300*230*60(mm); 1.65Kg (amplifier only)

Key Features & Advantages:

1. Professional EEG amplifier suitable for all standard applications of routine EEG and long term EEG monitoring in the research and clinical areas.
2. Configurable in a number of setups according to user’s needs:

1. 24 channels monopolar EEG + 12 channels polysomnography (PSG) parameters including: ECG (1 channel), thoracic and abdominal Resp (1 channel), Airflow (1 channel), EOG (2 channels), EMG (3 channels), Snore (1 channel), SpO2 (1 channel), body position (1 channel)

3. 24 bits A/D conversion rate, with high sampling rate of up to 8 kHz.
4. High quality real-time EEG signal acquisition is transmitted via Wi-Fi, which shields away interference from power line and other signals, transmitting stable and reliable measurement data at high-speed while greatly ensuring patient’s safety.
5. Amplifier can be operated by DC power without affecting signal quality.
6. Head-box design to access single shielded cup/clip electrodes with touch proof connectors (1.5mm).
7. Built-in impedance testing function and automatic calibration (for both sine wave and square wave signals).
8. Optional video system for recording, editing and displaying video images synchronously with EEG signals.



Software Functions:

1. Acquisition & Settings

1. Colors of waveforms are in accord to colors of events, and users can mark on the waveforms with character directly; it’s available to open respiration leading sound to instruct patient's respiration frequency in a deep respiration event;
2. EEG channels can be arbitrarily set up for users to customize the layout of channels during collection process and playback analysis. This includes the choice of processing EEG waveforms with filters, baseline and other arbitrary parameters;
3. Configuration chart display and data source of physical channel configuration are displayed together at the same interface, making channel editing simpler and more intuitive;
4. Events markers enable user to mark timings of seizures or any abnormal wave occurrences during recording, whereby events marked are listed and can be traced with the event localization feature during playback;

1. Same-screen, and real-time display brain tendency chart is in synchronism with EEG waveforms acquisition. Brain tendency chart include various energy curve maps: energy curve, peak value frequency, relative energy, absolute energy, energy peak frequency, medium frequency index, side frequency index and coma index.

2. Replay & Analysis

1. EEG mapping;
2. EEG tendency analysis;
3. EEG spectral analysis;
4. Brain waves fast playback and fast positioning function;
5. Automatic spike recognition with adjustable arbitrary spike-wave parameters;
6. User can list the events marked during replay and locate each of the event markers in the waveform. User can add, change or remove event markers based on manual observation made during recording;
7. User can also review the EEG waveforms with a different combination of parameters and filters;

1. Contains PSG parameters like ECG, EMG, EOG, RESP, FLOW, body position, Spo2 for diagnose of sleep disorders.
2. Automatically generates EEG case reports with customizable print templates.

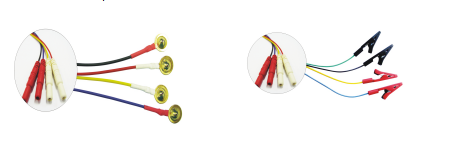

Accessories: Shielded Single disc electrode cable; Shielded Single bracket electrode cable, Net cap, General bracket electrode cap.


Optional accessories: Split-type EEG cap (23holes/51holes); Electrode cables for split-type EEG cap



General Specifications:

1. Dimension and Weight:

Type-C EEG with standard accessories: 1 carton; 370*260*225(mm); Charge weight: 6kg
Photic Stimulator with tripod (Optional): One carton; 630*260*190 (mm); 10kg
Pentagonal stand with Photic stimulator (Optional): 1 carton; 1000*620*210 (mm);
Charge weight: 25kg
Video system (optional): 1 carton; 450*300*300(mm); Charge weight: 7kg


2. Environment:

Temperature: ±10°C ~+50°C
Relative humidity: 30%~80%
Power supply: AC100—240V (Host computer system)
Amplifier: DC 6V


3. Quality System:

ISO13485: 2003; CE (93/42/EEG)


Optional,
1, Video System
1. Video signal and EEG (or EEG/ERP) signal can be synchronously collected, edited and quickly displayed;
2. MPEG4 integrated capture software, sync frame by frame to EEG;
3. Video camera with remote control by software.

  CCE-Video1

2, Video System (Infra-red function)
1. Video signal and EEG (or EEG/ERP) signal can be synchronously collected, edited and quickly displayed;
2. MPEG4 integrated capture software, sync frame by frame to EEG;
3. Video camera with remote control by software;
4. Day-night monitoring with infra-red function.

CCE-Video2

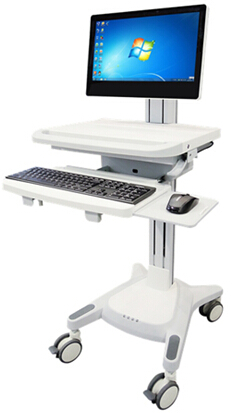

3, Trolley
Mobile operation platform for EEG system

  CCE-Trolley


4,Photic stimulator
For flash event with frequency 1~30HZ.

      CCE-NC1

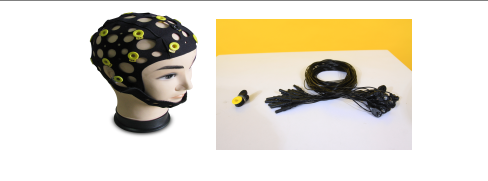

5,Elastic fabric EEG cap
For fast EEG electrodes placement.

     CCE-NC2

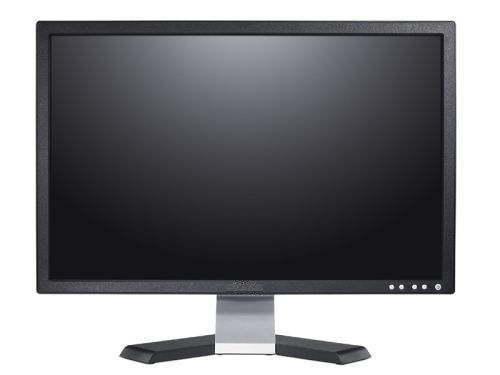

6, HP Computer (Desktop)
HP, AMD processor; 17''LCD; HDD 500G; RAM 2G.

           CCE-NC4

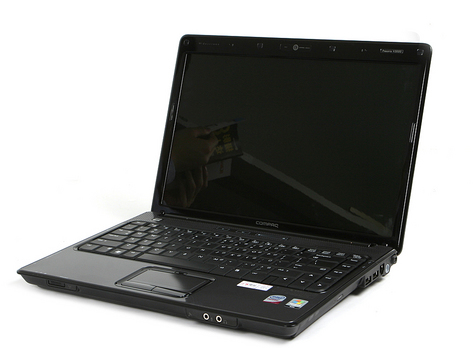

7,HP Computer (Laptop)
HP, AMD processor; 14''LCD; HDD 320G; RAM 2G.

     CCE-NC5

8,Printer
color ink printer

     CCE-NC6
