Description

Specifications

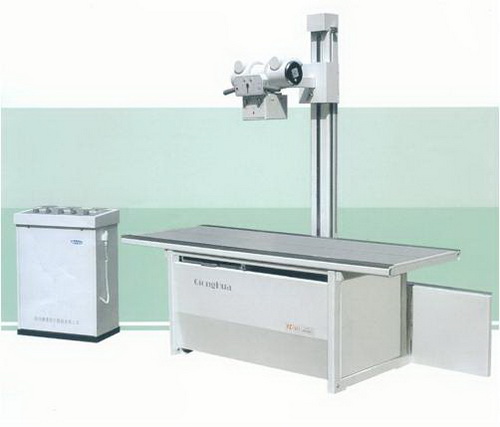

MA: 300ma Type: Stationary

USE:
General photograpy
Filter-ray device photograpy.

MAIN TECHNICAL PARAMETER:
1. Single bed with single tube
2. Rotary anode X-ray tube unit tangential annular tubes
3. Single-phase full-wave rectification high-voltage generator
4. Power volage(V) photograph kilovolt(kV), infinitely variable control and electric mechanism
5. Be equipped with the manostat for the filament of X-ray tube and space charge complementor
6. Photographic volume, kV, mA and s, subsection, grading and interlock protection
7. Adopt the digital circuit timer. Grading according to R10 pririty coefficient, which is exact in time control.
8. High-voltage primary uses the zero controlled circuit of silicon-controlled rectifier of large power
9. Photographic bed can move in length and breadth.
10 The photographic bed, upright and vibrating ray-filter are in a whole without top and bottom track.

Main technical indexes:

Power supply	Adjustable range	With power supply: 380V 340V—420V
Power supply	Adjustable range	With power supply: 220V 195V—250V
Photographic Parameters adjustment	Adjustable range of tube voltage	50~125kV (Can adjust continuously)
	Adjustable range of tube current	Small focus: 50, 100mA Big focus: 50, 100, 200 and 300mA
	Adjustable range of time	0.04~6.3s 23 grades together
High-voltage Generator unit	capacity	20kVA at instant (0.4kVA at running)
	Max DC output voltage	120kV
	Max DC output current	300mA at instant
X-ray tube	model	XD51-20.40/125
	Focus	Small focus: 1x1 , Big focus: 2x2
	Highest Operation voltage	120kV
Radiographic bed	Longitudinal direction:	Longitudinal direction:
	Move horizontal(if being)	Move horizontal(if being)
	Film specification	127178mm(5”7”)~ 356432mm(14”17”)
