- Description
Specifications
MA:
500ma
Type:
Stationary
KW:
36KW
Max mA: 500 mA Max voltage::125KV
Function:

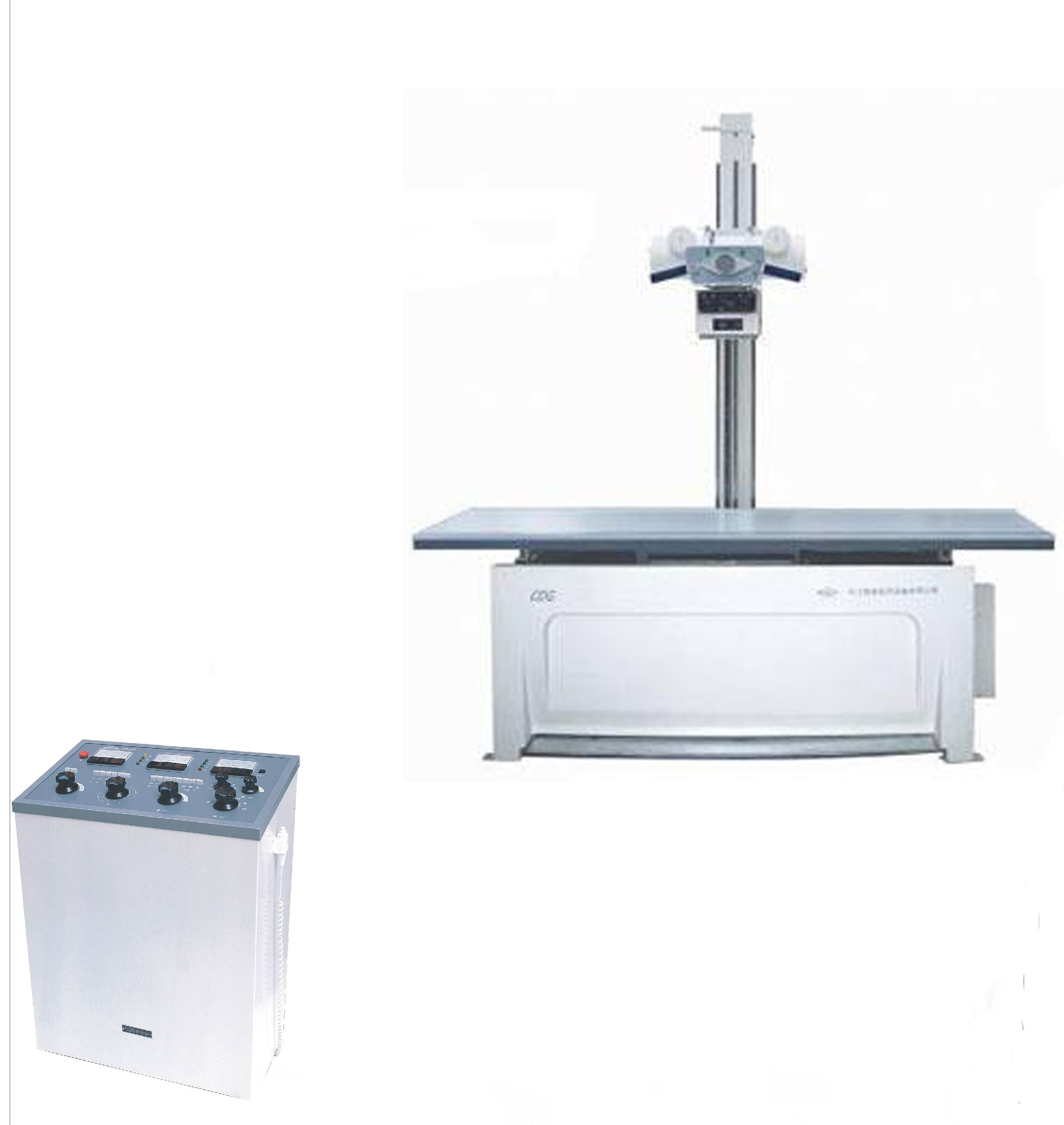

Configured with single table and single tube,
radiography, satisfying ordinary clinic usage
Standard configuration:
1 controller,
1 generator,
1 tube,
1 all-in-one radiographic table and
4 high-voltage cables
Specifications:
Power:
A.C. 380V±10%，frequency 50HZ±1HZ, Capacity≥50KW; Power resistance:≤0.30Ω,Earth resistance≤4Ω
High Voltage Generator:
Fluoroscopy: 0.3-5mA , step enters:0.1mA, 50-110KV, step enters: 1 KV， continuous exposure time ≥3h
Radiography: 30-500mA divided adjustable, 45-125KV, step enters: 1 KV，0.01-6.3s, totally 26 steps are adjustable
X-Ray Tube Assembly:
Diagnostic table: Small focus: 1×1, 20KW, Large focus:2×2, 40KW, normal revolving speed 2800r/min, heat capacity 140KHU
Radiographic table: Small focus: 1×1, 30KW, Large focus:2×2, 50KW, normal revolving speed 2800r/min, heat capacity 140KHU
Collimator:
Photographic table: Manual and leafy type
Multi-function Radiographic Table:
Movement of the tabletop: Longitudinal ±450mm;transverse: ±120mm
The tabletop height: 700mm
Moving grid: Grid density: 28L/cm, Grid ration: 8:1, Focusing distance: 100mm, moving range: ≥600mm
Film’s specifications:5″×7″,8″×10″,10″×12″,11″×14″,12″×15″,14″×14″,14″×17″
Movement of X-Ray tube assembly: To go around the horizontal axle ±180°，up and down: 1100mm
Shipping Information:
G.W: 950kg
Packing Size: 2.72m,1.11m,1.105m
Unit: Piece
Special: No
