- Description
Specifications
MA:
500ma
Type:
Stationary
KW:
50kW
Main Component Technical Spe. | ||
X-ray generator (include console) |
Output Power | 50KW |
Power Voltage | 380V±38V | |
kV range | 40~150kV | |
mA range | 10~630mA | |
mAs range | 0.1 ~630mAs | |
Exposure time | 0.002~6.3S | |
X-ray tube |
Anode Heat Storage Capacity | 240kHU |
Small focus | 0.6 | |
Large focus | 1.2 | |
Anode speed | 3000r/min | |
Collimator |
Inherent filtration | 1.0mm Al /75kV |
Light Source | LED | |
Radiographic Table |
Top Table Size | 2100X800X650mm |
Bucky Size | 18X18inch | |
Table longitudinal movement | ≥900mm | |
Cassette Movement Distance | ≥500mm | |
Vertical Chest stand |
Vertical moving range | ≥1200mm |
Bucky Size | 18X18inch | |
Double Grid |
Size | 18X18inch |
Ratio | 1:1 | |
F.D. | 100cm | |
Density | 40 L/cm |

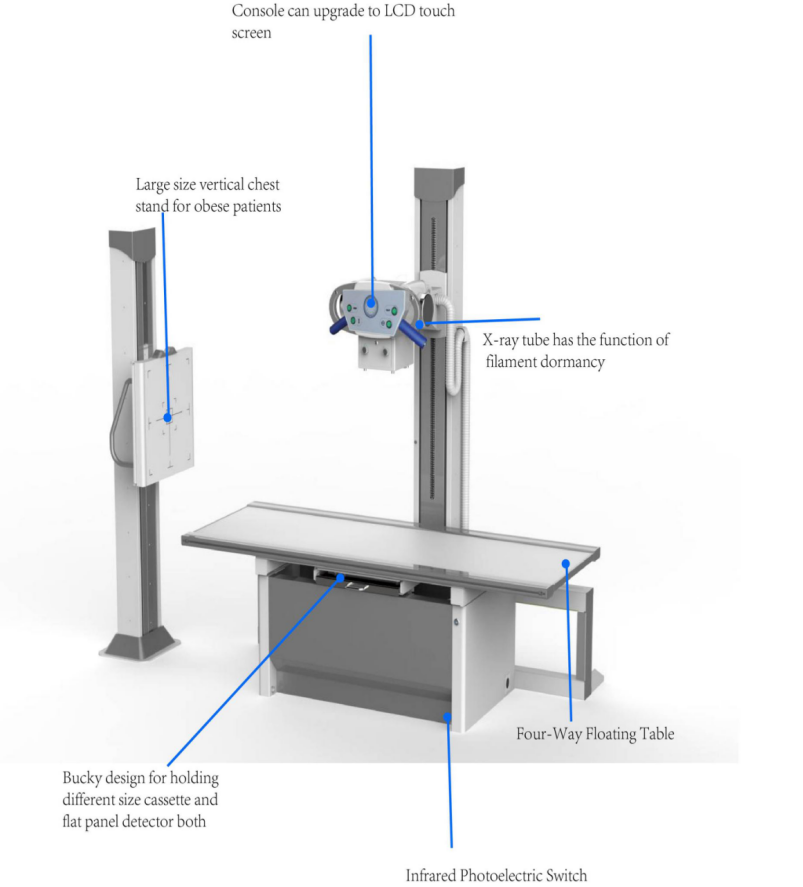

X-ray generator
Rich DR upgrade reserve interface
Fault self-diagnosis and protection
Automatic calibration of tube current
X-ray tube has the function of filament dormancy
AEC function, different ionization chamber as optional
Analog - digital double - loop control, simple operation, high intelligence
High kV, high current, high power,strong penetration,able to handle obese patients
Applicable to orthopedics, emergency room, operating room, etc.,

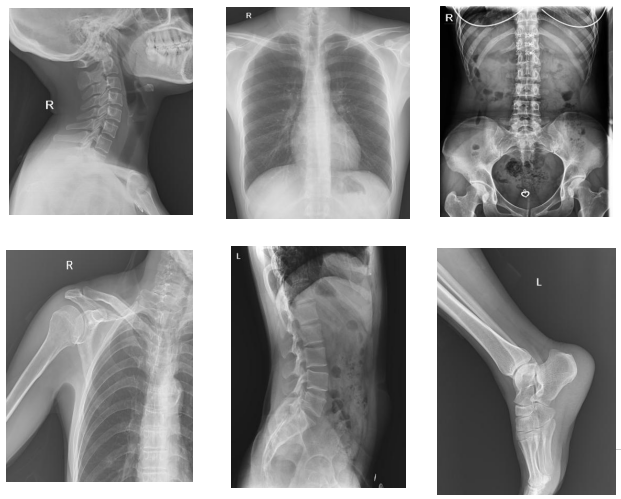

As human head, limbs, chest, spine, lumbar spine for medical diagnosis
Shipping Information:
G.W: 690kg
Packing Size: 2m,1m,1.5m
Unit: Piece
Special: No
