Specifications
Volume:
90L
Principle:
High Pressure Steam
Type:
Horizontal
Normal working condition shall comply with the following conditions:
a) Environmental Temperature +5℃～+40℃;
b) Relative Humidity ≤80%RH
c) Atmospheric Pressure 70kPa～106 kpa;
f) Working Power Supply :AC 220V±20V，50Hz±1Hz

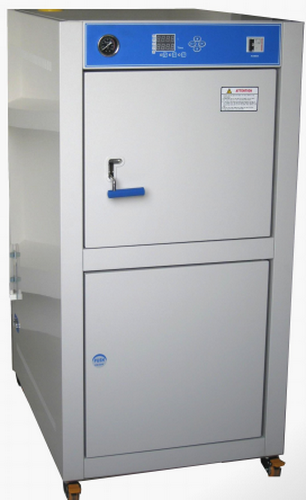

Construction (See picture 1)
1、water inlet
2、pressure gauge
3、control system
4、breaker
5、chamber door
6、handle
Parameters:
| Chamber Capacity | 90L |
| Rating working pressure | 0.22MPa |
| control way | Micro computer |
| Rating working temperature | 134℃ |
| Timer Adjust | 0～99min |
| Temp. And Pressure Control range | 115～134℃/ 0.07～0.22MPa |
| Consumption/power supply | 4000W/AC220V.50Hz |
| feature | Water lack protection, over current power cut off, safety lock system |
| Outer size | 940×690×1330mm |
| Package size | 1030×770×1460mm |
| N.W/G.W/ | 187KG/232KG |
Shipping Information:
G.W: 112kg
Packing Size: 0.88m,0.73m,0.75m
Unit: Piece
Special: No
