Main Features

1. Max 400W Electrosurgical Generator, with mono-polar and bipolar function.
2. Nine working modes: pure cut, blend1, blend2, blend3, contact coag, forced coag, soft coag, bipolar coag, bipolar cut.
3. Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
4. Microprocessor controlled, LCD touch screen display. With audible and visual indicators and errors codes during the process of outputting.
5. Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
6. Both hand and foot controlled.
7. Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
8. The unit always remember the last setting when it turned off.
9. Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
10. The ESU unit can be connected with laparoscope and endoscope, etc.
11. Protection against over-voltage and over-current.
12. Defibrillation protected.
13. Convection refrigeration without ventilator.
14. Mounted on a 4 wheels cart(optional).
15. Meets the requirements of international safety standards EN60601-1 and EN60601-2.


Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Operating frequency: a)Monopolar:512KHz  b) Bipolar:1024KHz
Power rating: 1100VA±10％

Nine working modes:
◆Mono-polar Cut
a) Pure cut：1W～400W( Load 800Ω)
b) Blend1：1W～300W(Load 800Ω)
c) Blend2：1W～200W(Load 800Ω)
d) Blend3：1W～150W(Load 800Ω)
◆Mono-polar Coag
e) Spray Coag：1W～80W( Load 800Ω)
f) Forced Coag：1W～120W( Load 800Ω)
g) Soft Coag：1W～120W( Load 800Ω)
◆Bipolar
h) Bipolar Coagulation: 1W～70W( Load 200Ω)
i) Bipolar Cut: 1W～120W( Load 200Ω)
◆Power Consumption: ≤1100VA

Configuration Sheet
Main Unit machine
Power Cable, can customize according to your country type
User Manual

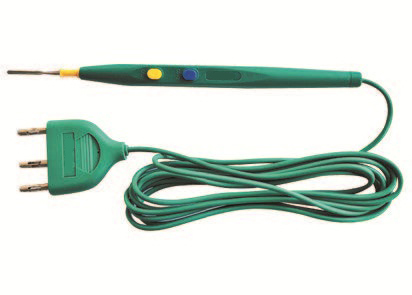

disposabe ESU pencil     5pcs


Neutral Electrode         10pcs

Neutral Electrode cable    1pcs

Footswitch                1set

Bipolar Forceps           1pcs

Bipolar forceps cable       1pcs
