Specifications
Type:
Trolley Type
(Anaesthesia Machine Digital display)
Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa.
4-tubes Flowmeters, O2 & N2O ; 0.1L/Min ~ 10L / Min;
Oxygen Flush: 25~75 L / Min
Respiration Mode: A/C,IPPV(VCV),SIPPV(VCV),IMV,SIMV,MANNUAL
Tidal Volume: Adjustable range: 50 ~ 1500 ml, Display range:0~2000ml
I/E Ratio: 8:1~1:10

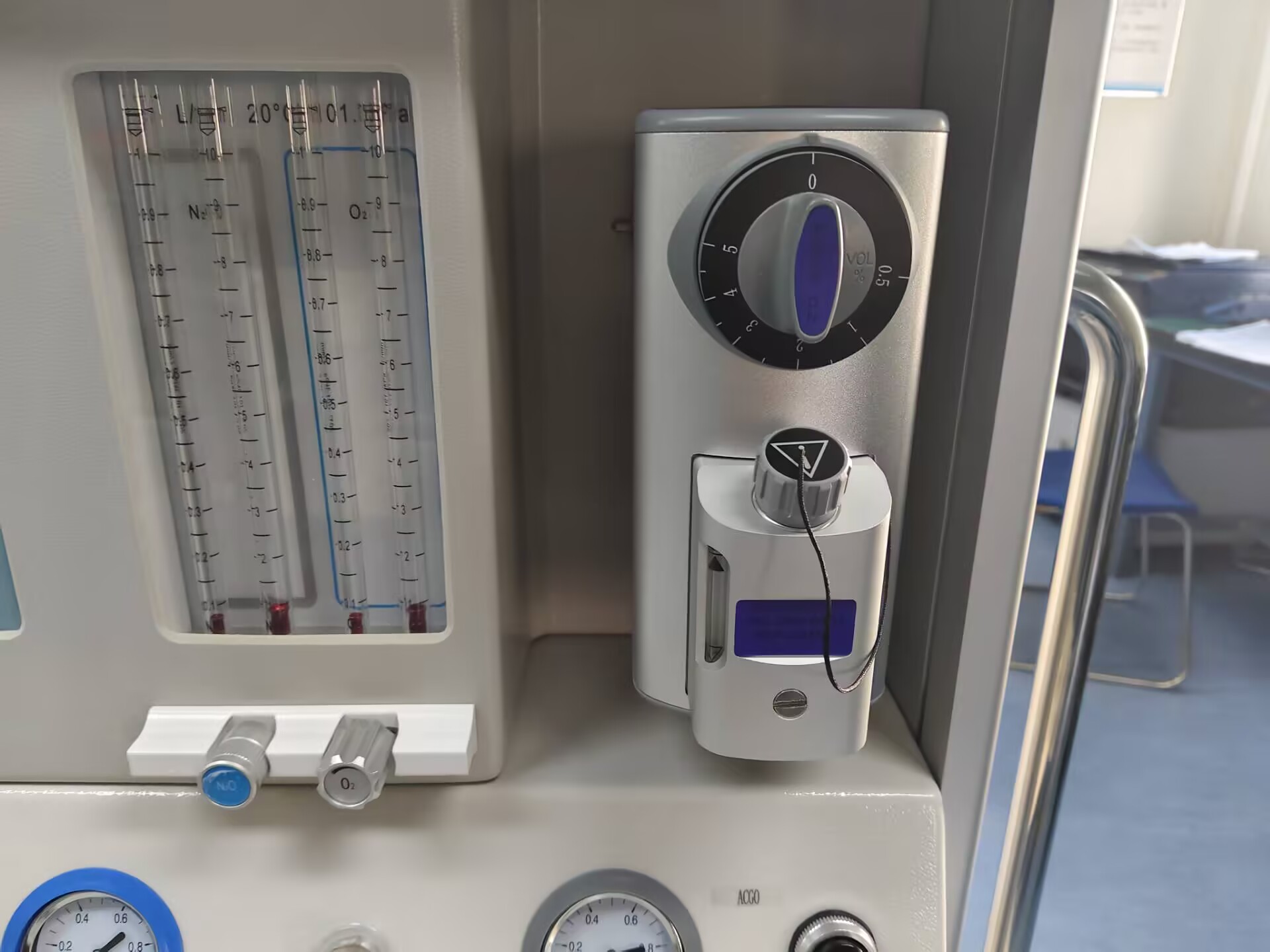

One vaporizer: Enflurane/ Isoflurane/Sevoflurane/Halothane
(Enflurane/ Isoflurane/Sevoflurane/Halothane for Anaesthesia Machine)
Vaporizer Setting Range: 0.5%~5%
Respiration Frequency : 1~100 bpm;
Lung compliance: ≤30 mL / kPa
IMV frequency: 1~20 bpm;
PEEP: 0~2.0KPa
Ptr: -1.0~2.0KPa
CO2 absorber capacity : 1 kg
Inspiratory Plateau: 0~1 S;
Optional: Patient monitor

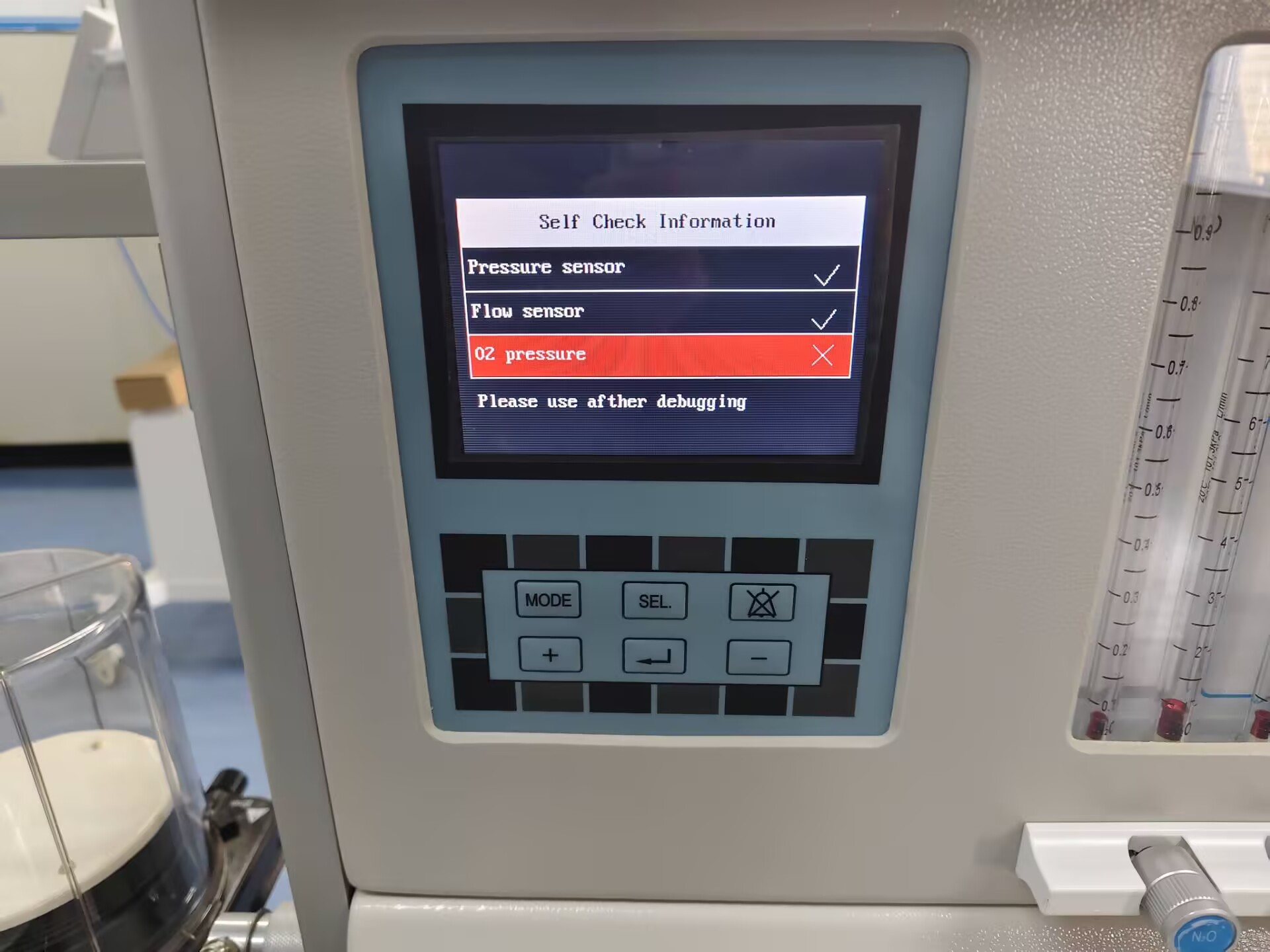

Alarm parameters for Anaesthesia Machine:
Upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea,oxygen concentration, AC power malfunction,Battery low power.
If this Anaesthesia Machine model can't satisfy your request, please click following links to check more other models.
Contact Us Now, Get Discount Now,
Shipping Information:
G.W: 91kg
Packing Size: 0.66m,0.62m,0.35m
Unit: Piece
Special: No
