Specifications
Type:
Trolley Type

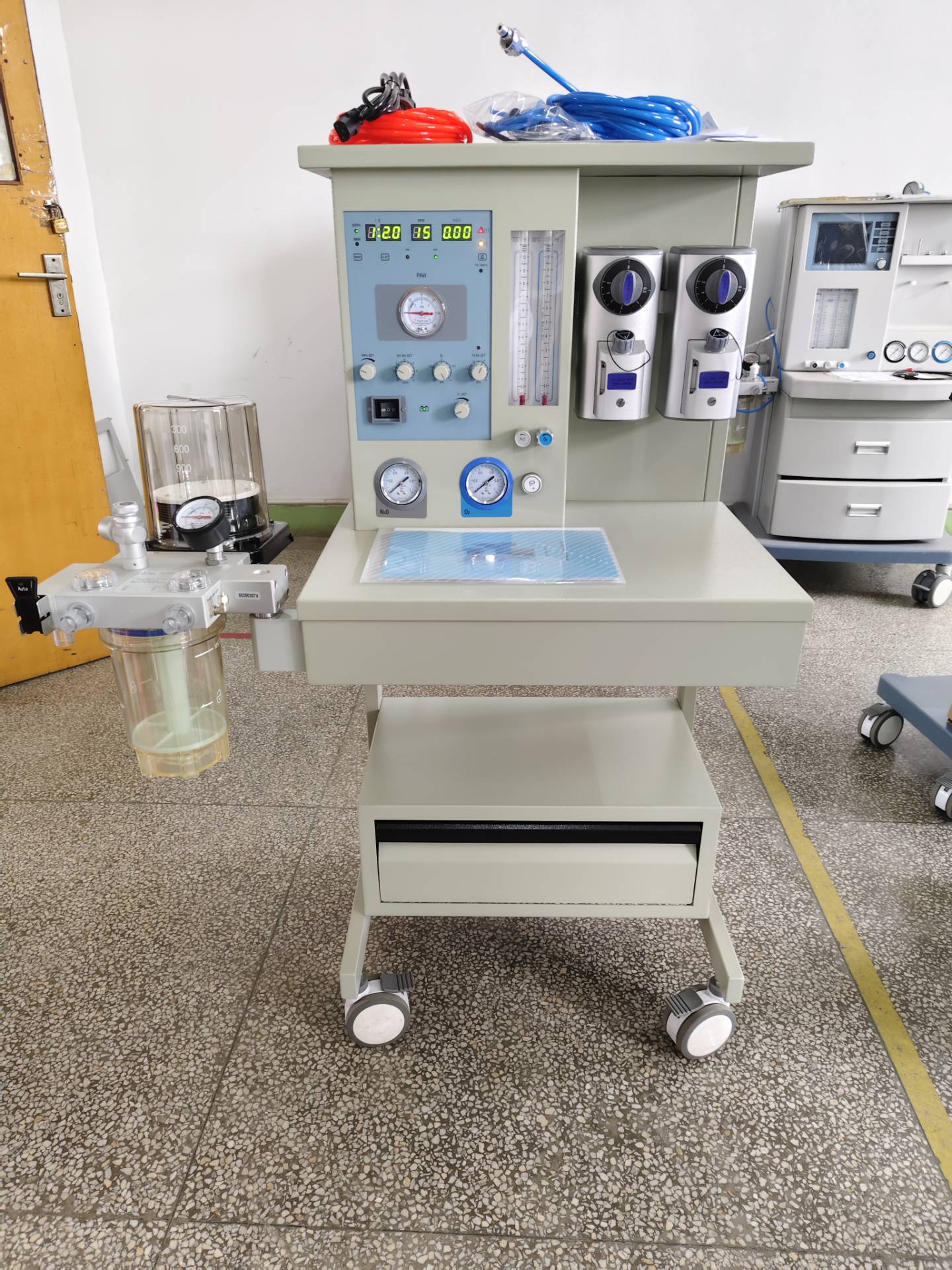

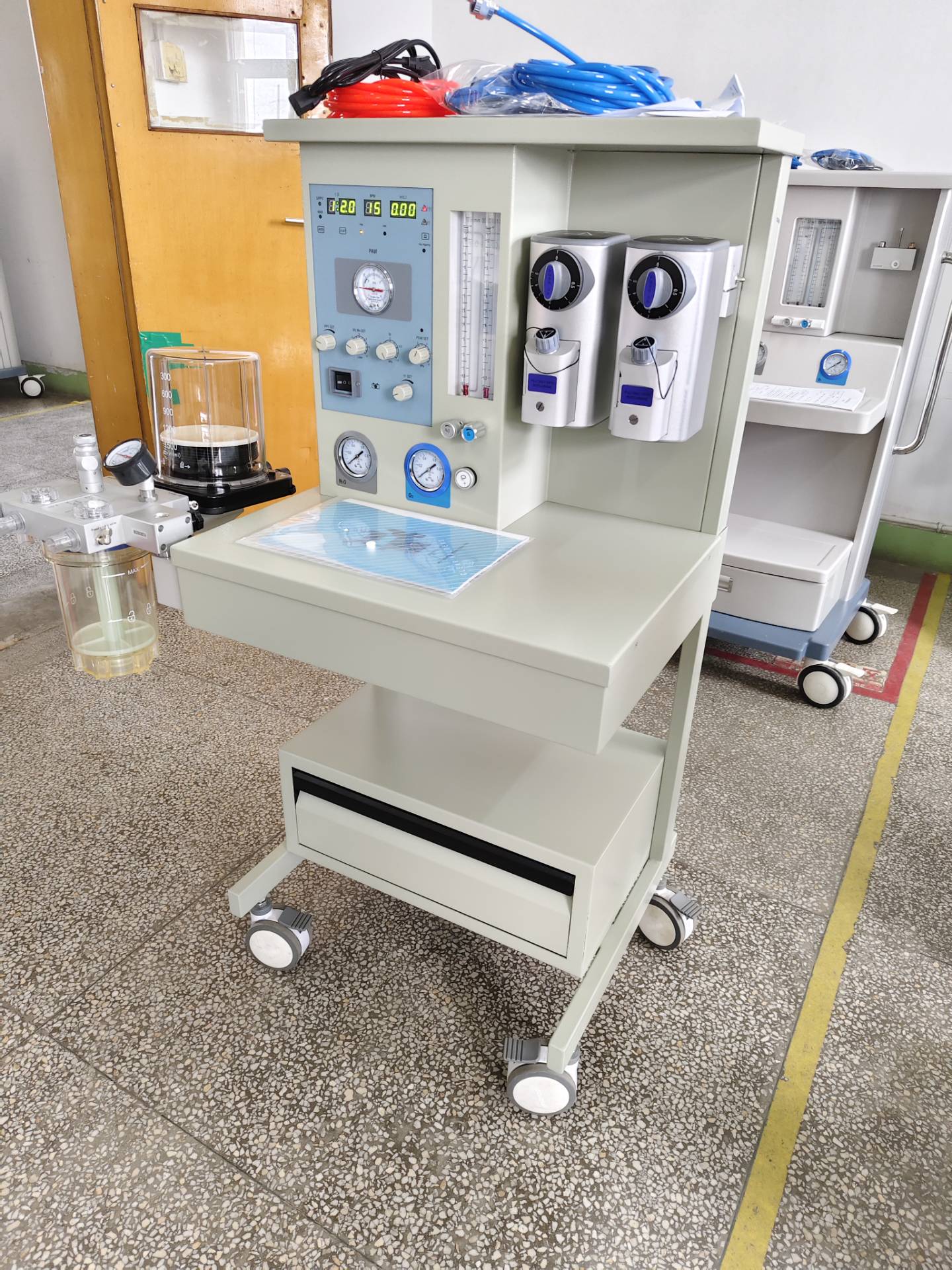

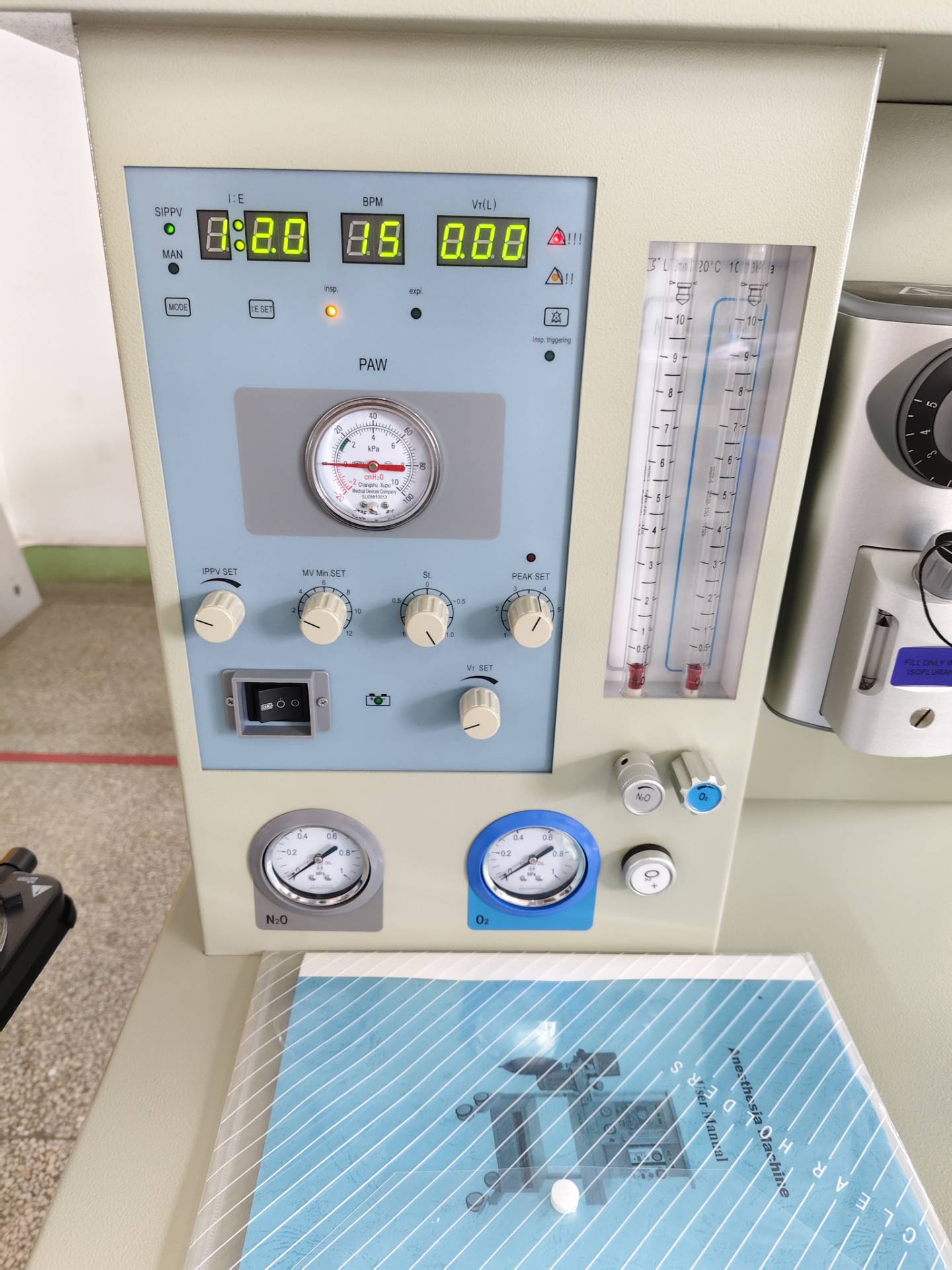

Main technical specifications for Anesthesia Workstation,
Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa.
2-tubes Flowmeters, O2 & N2O; 0.1L/Min ~ 10L / Min;
(Anesthesia Workstation 2-tubes Flowmeters)

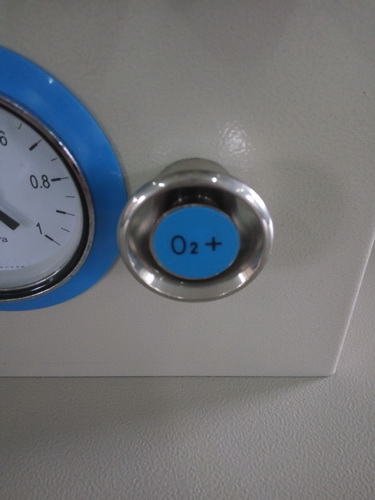

Oxygen Flush: 25~75 L / Min
Respiration Mode: A/C,IPPV,SIPPV,MANUAL
Tidal Volume: 0~1500ml
I/E Ratio: 1:1.5 ~ 1:3.0
Two vaporizers: Enflurane/ Isoflurane/Sevoflurane/Halothane

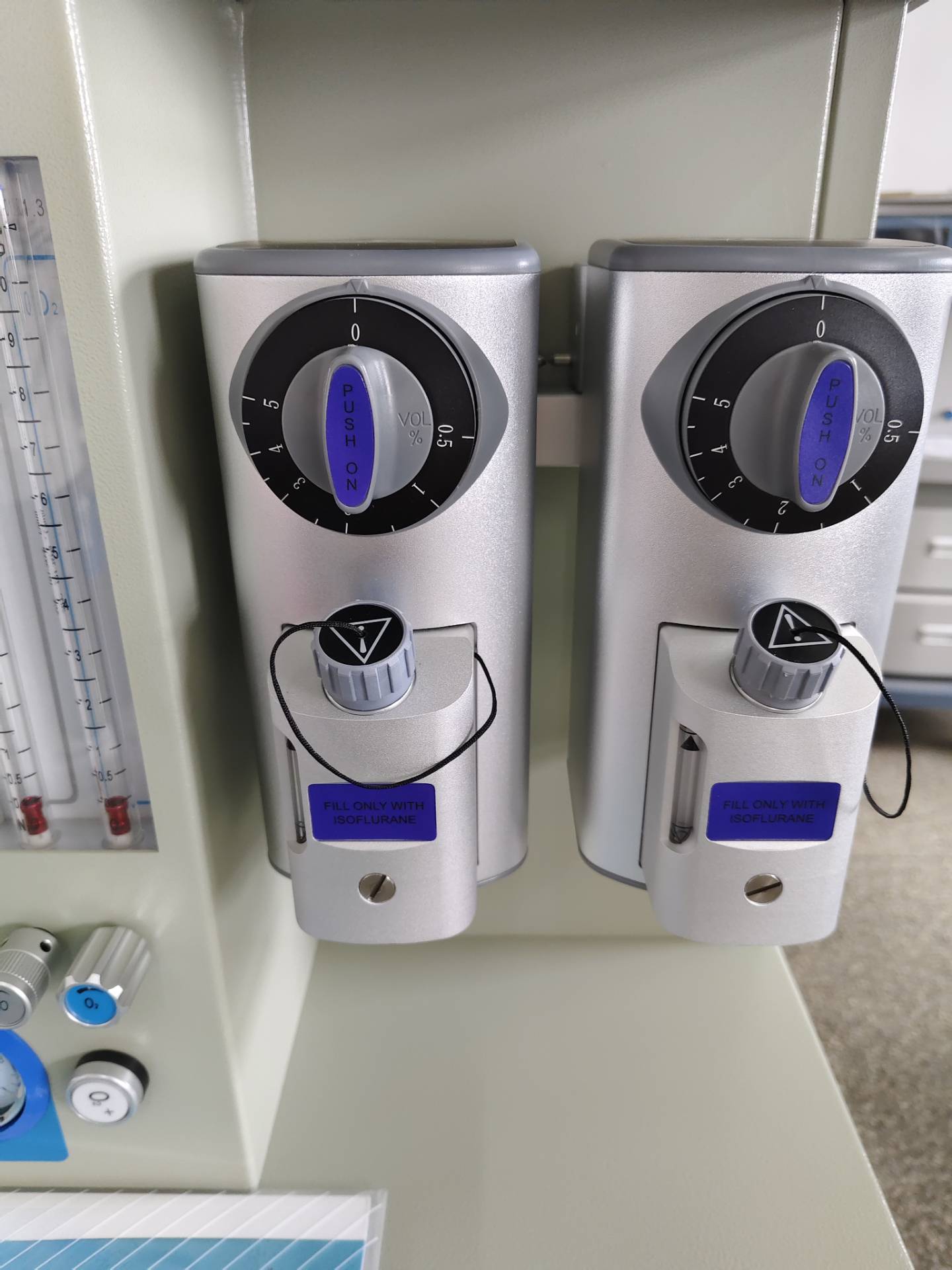

(Anesthesia Workstation vaporizer)
Vaporizer Setting Range: 0.5%~5%
Respiration Frequency : 4~40 bpm;
Ptr: -1.0kPa ~ 1.0 kPa
CO2 absorber capacity : 1 kg

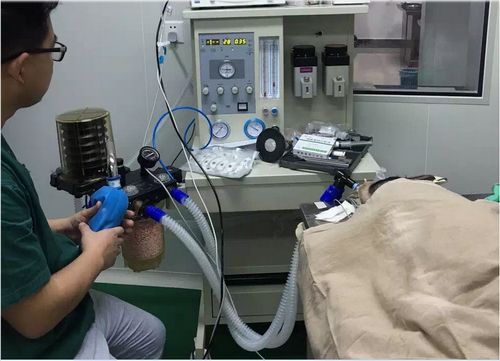

(Anesthesia Workstation Application)

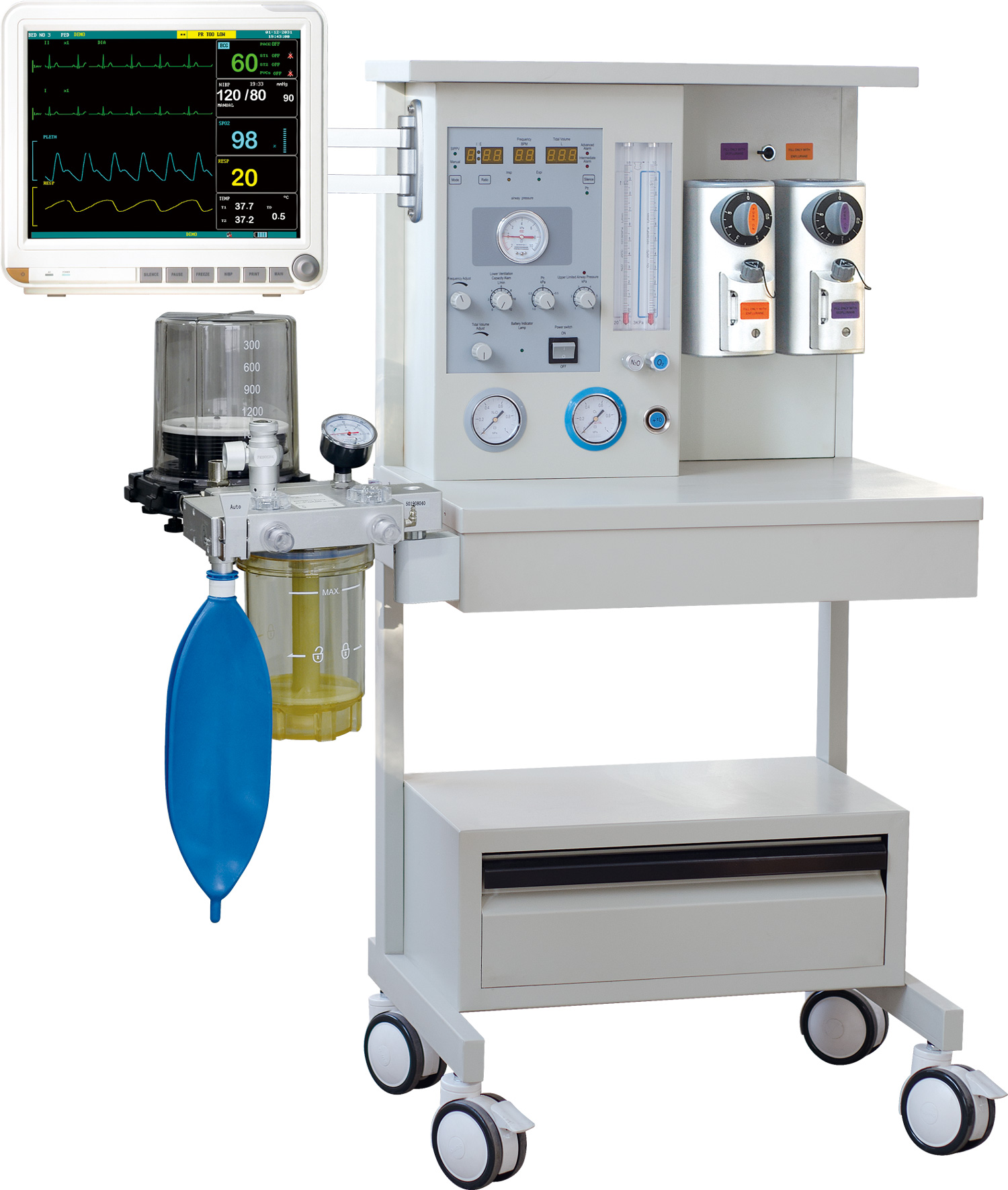

Optional: Patient monitor
Alarm parameters:
Upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea,AC power malfunction,Battery low power.
If this Anesthesia Workstation model can't satisfy your request,
please click following links to check more other models.
Contact Us Now, Get Discount Now,
Shipping Information:
G.W: 95kg
Packing Size: 0.83m,1.2m,1.23m
Unit: Piece
Special: No
