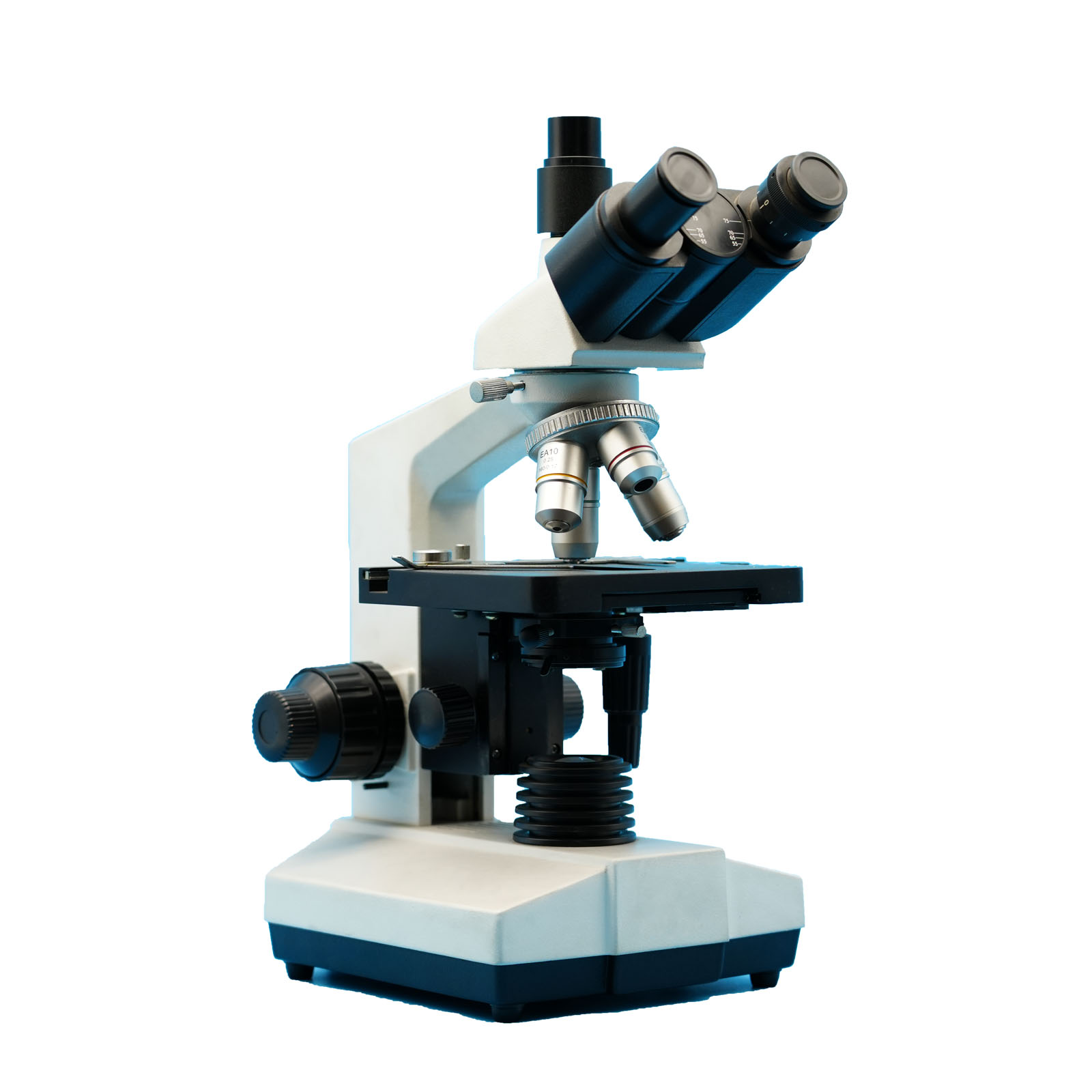

- Description
Standard Configuration:

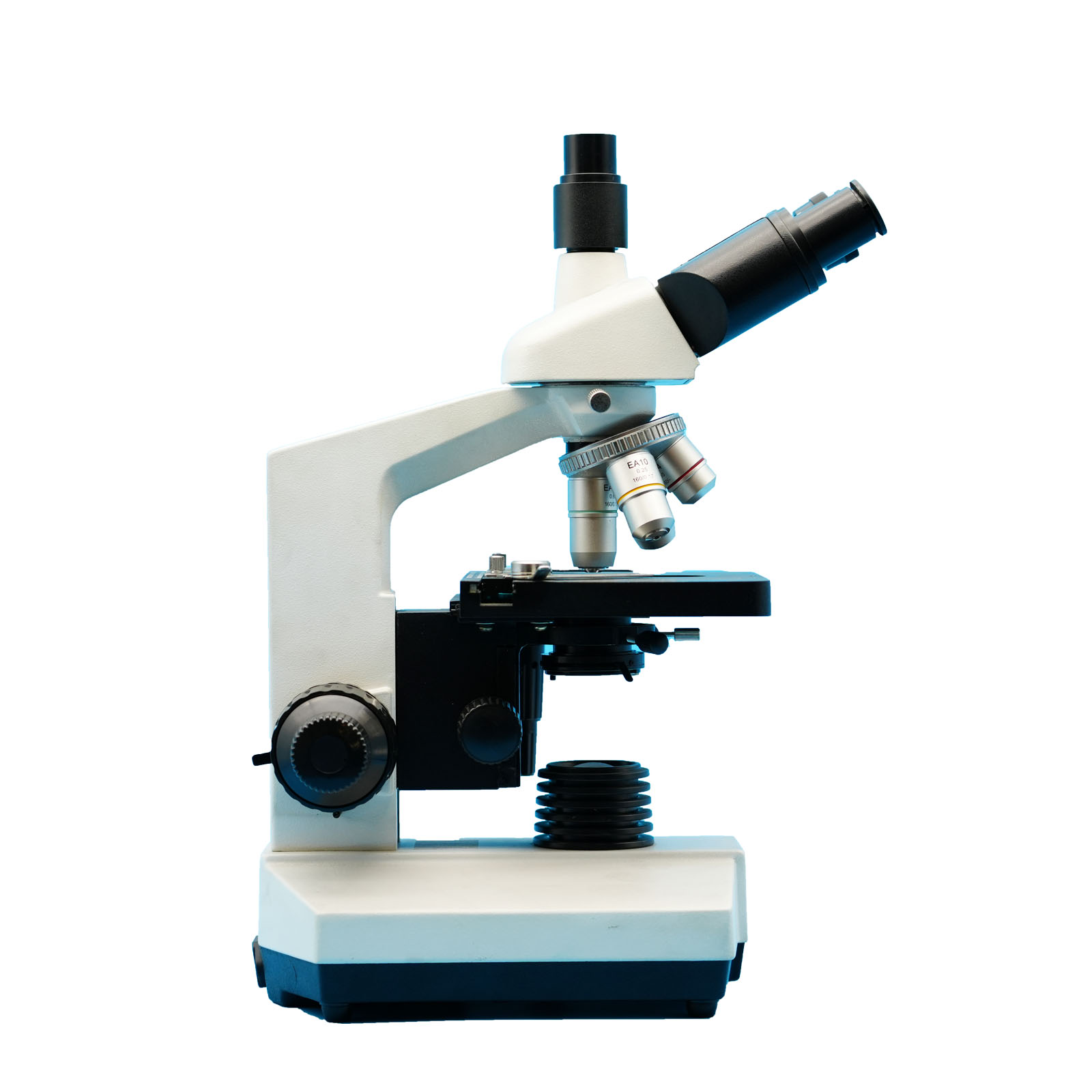

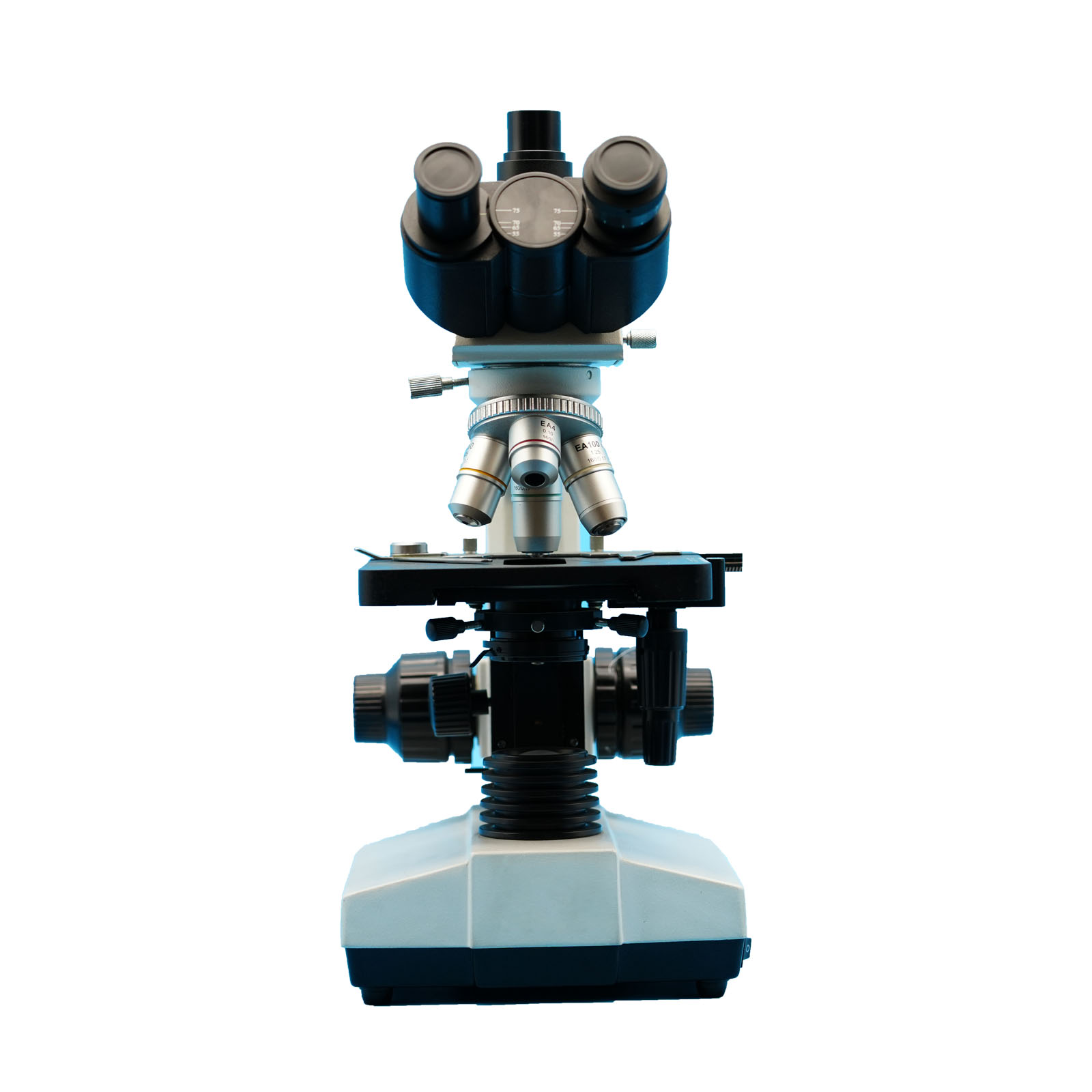

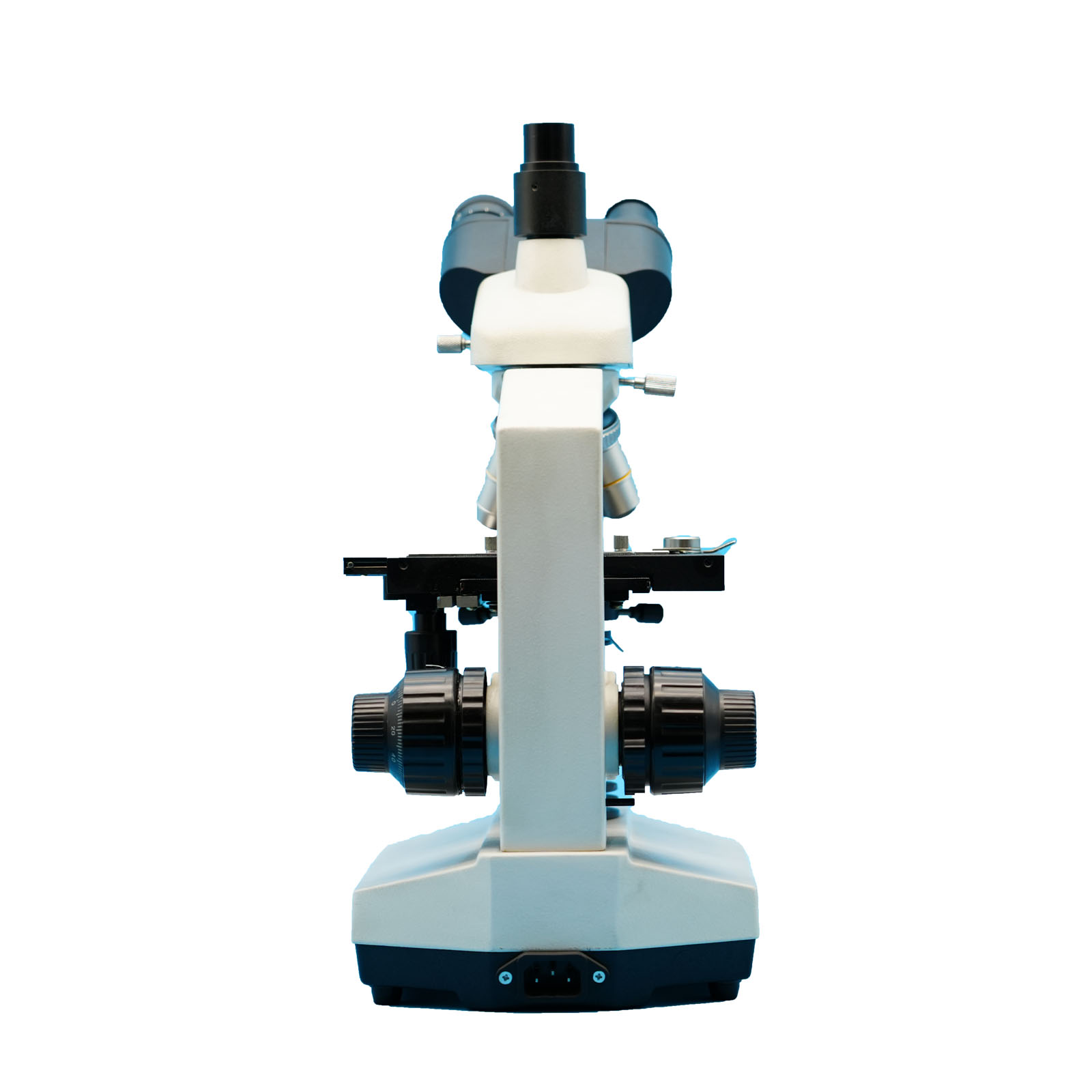

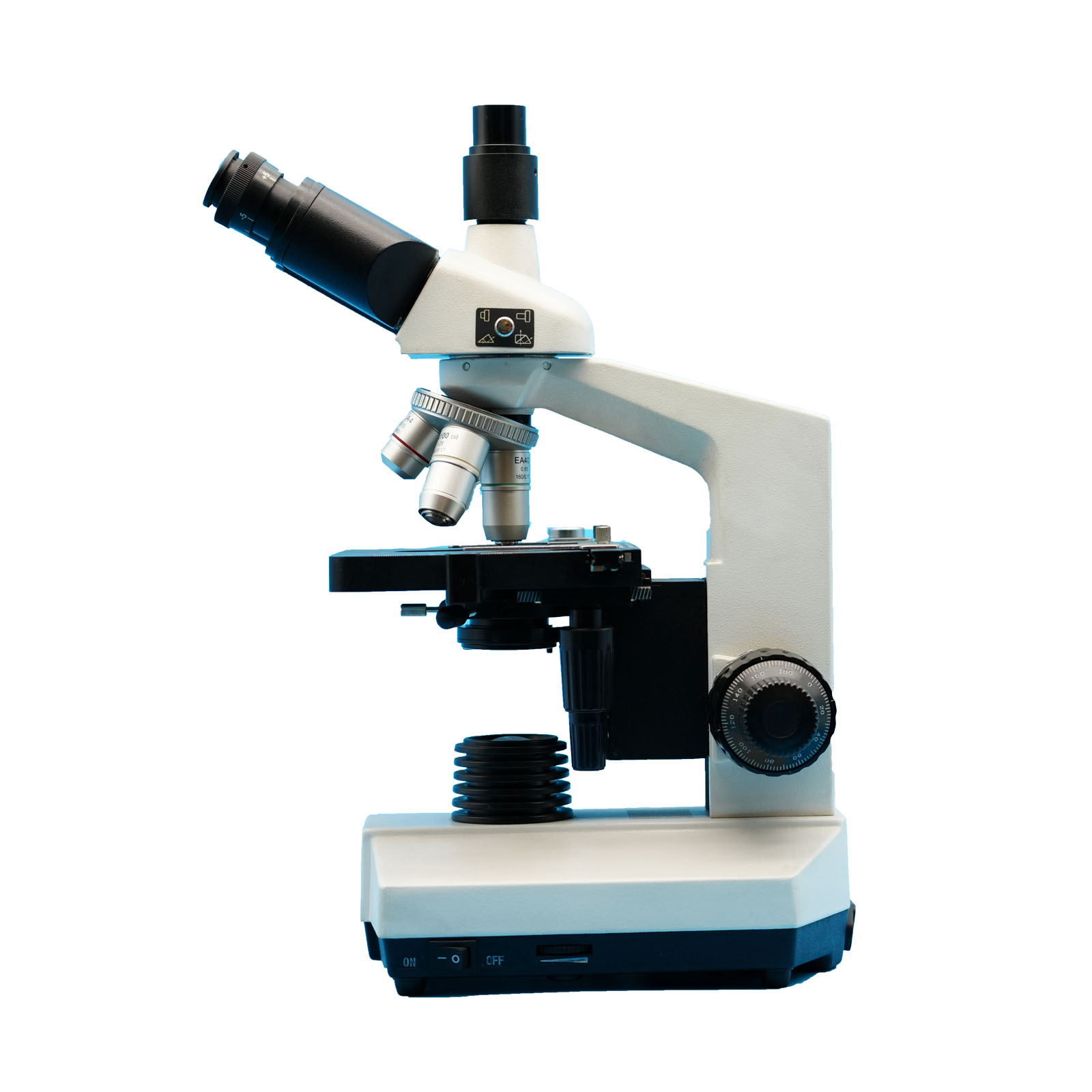

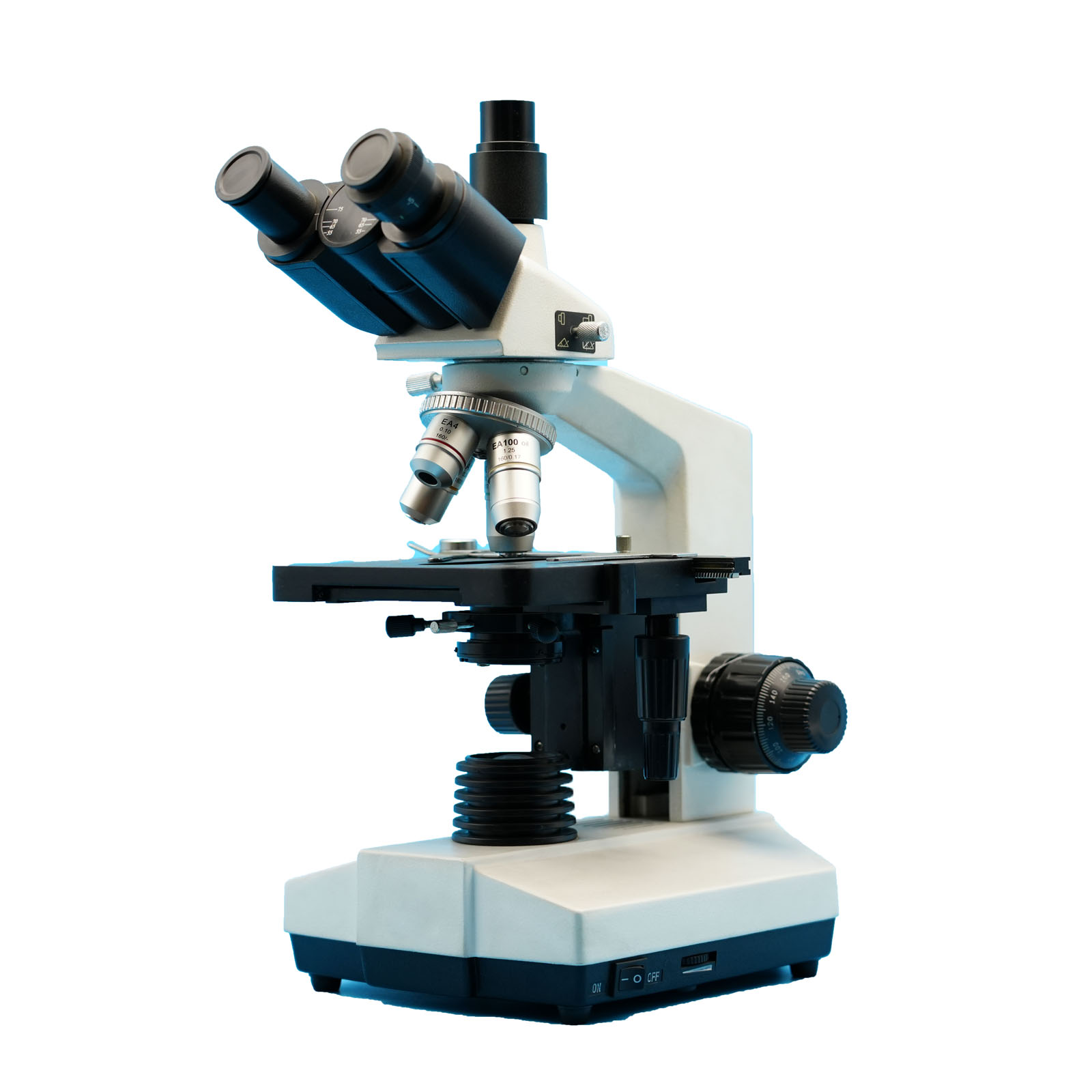

Microscope without Camera,
if you need that, please optional.
Optional

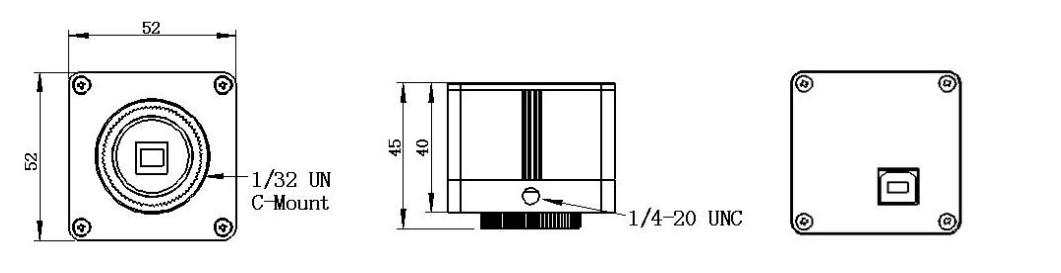

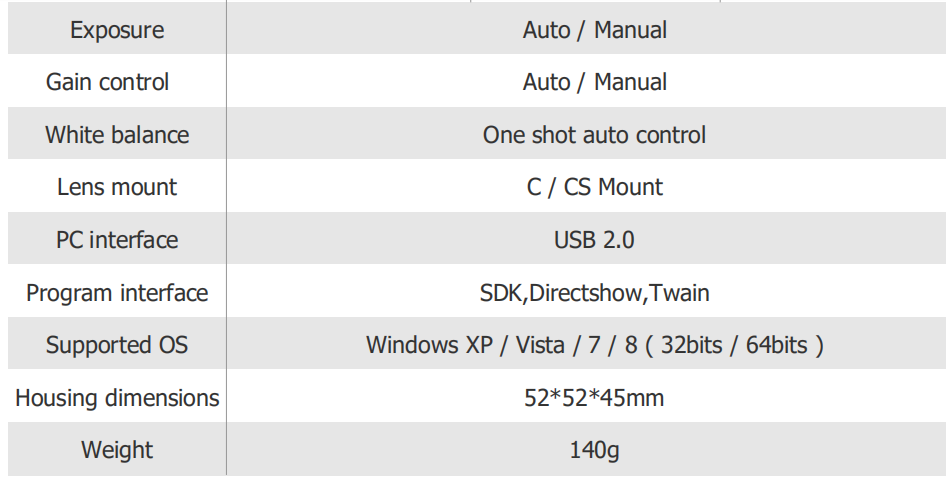

Camera,
Microscope without Camera,
if you need that, please optional.
- Objectives
| Category | Magnification | Numerical aperture | Working distance | Remark |
| Achromatic objectives |
4X | 0.10 | 37.5 | |
| 10X | 0.25 | 7.613 | ||
| 40X(s) | 0.65 | 0.632 | Spring | |
| 100X(s.oil) | 1.25 | 0.198 | Spring |
- Eyepieces
| Category | Magnification | Diameter of view-field(mm) | Remark |
| Wide field eyepiece | WF10X | ф18 | |
| WF16X | ≥ф11 |
- Total magnification
| Eyepiece/Total magnification/Objective | 4X | 10X | 40X(S) | 100X(S.oil) |
| 10X | 40X | 100X | 400X | 1000X |
| 16X | 64X | 160X | 640X | 1600X |
- Mechanical tube length:160mm
- Object to primary image distance:195mm
- Stage size:140X140mm,moving range:75X45mm
- ABBE condenser, NA=1.25 with iris diaphragm(Kohler illumination is optional)
- Coarse/fine focal range:30mm
- Illumination:6V 20W halogen lamp, adjustable brightness
- Power: AC input 220V ±22V 50HZ±110V,Dc output 6V
- Net weight:6.5Kg
- Measurement(including binocular head):185(L)X270(W)X400(H)mm
Optional
Camera,

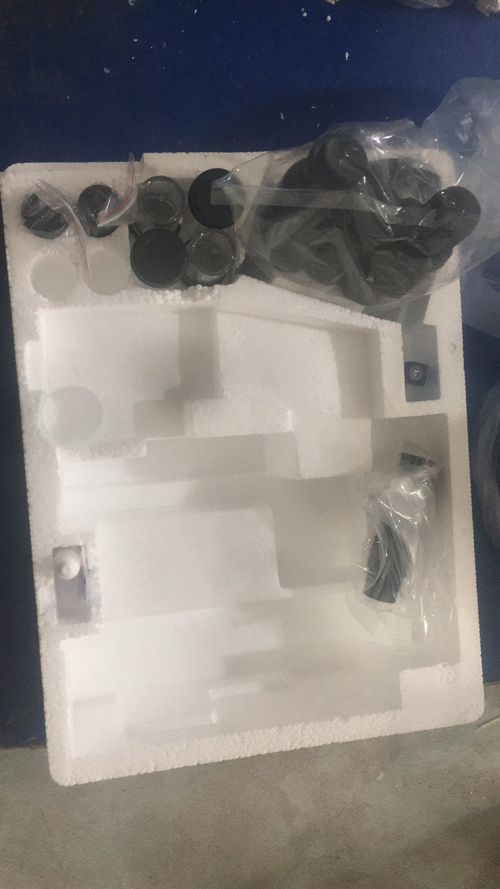

Shipping Information:
G.W: 8kg
Packing Size: 0.32m,0.3m,0.43m
Unit: Piece
Special: No
