The machine is open system.

Test Items: PT, APTT, TT, Fib, RepT, VT, AT-III, Protein-S, Protein-C, LA, Hep
Test Method: Dispersion light nephelometric analysis
Test Principle: The highest point on first order differentiation, Percentage analysis
Zero point correction: auto track the zero point, eliminate the interference of sample and reagent
Wavelength: 470nm
Light Source: Cold Lamp with high brightness and long lifetime
Detector: unique Dispersion light detector with high sensitivity and repeatability, immunized the effect
on result of jaundice,hemolysis,chyle and turbidity on plasma
Test Channel: each channel is independent, one or more,same or different items can be tested
Simultaneously
Incubator: Provide reagent and sample with stable incubator
Incubator Temperature: 37+/-0.2°C
Measure trigger: Auto trigger the measurement through configured pipette
Item modify: easy to add or edit items, easy to set the items parameters
Calibration: single-point calibration; multipoint calibration; auto store and match with calibration curve
Quality control: auto draw the quality figure
Reagent: Open reagent system
Reagent volume: ≤40μL
Sample volume: ≤40μL
Memory: Save more than 10000 samples results, and auto recovering the results when power is off during working .
Repeatability: CV≤5%
Calculative item: S,%,PTR,INR,Fib can be get through PT, This leads to lower the cost of reagent
Printer: Inner thermal printer,can be connected to external printer
Information edit: easy to input and edit the detail information of patients
Interface: RS-232 serial port,can be connected to external printer and computer
Working Environment: Temperature:10°C~30°C;Humidity:≤70%RH
Voltage: 85-264V,Auto adapt according to the input voltage
Power :   ≤80W
Quality System: Recognized by CE, TUV and CMD.

Test Items
PT
APTT
TT
Fib
RepT
VT
AT-Ⅲ
Protein-S
Protein-C
LA
Hep

Package information:
N.W: 3KG
G.W: 4KG
Package information: 36*36*26cm

Standard Configuration
DESCRIPTION    Quantity

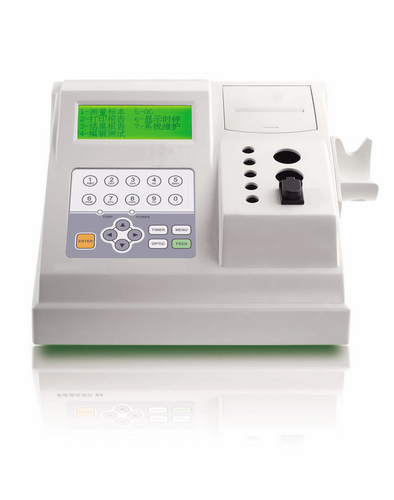

Main unit,    1
Three-core Power line,    1
Earth line,    1
Pipette（20－200ul）,    1
Pipette tip,    50
Cuvette cup,    40
Reagent cup,    4
Anticoagulant Tube,    5
Thermal Printer（57mm）,    2
Operation  manual,    1
Operation  Guideline,    1
Service manual,    1
QC Passed,    1
