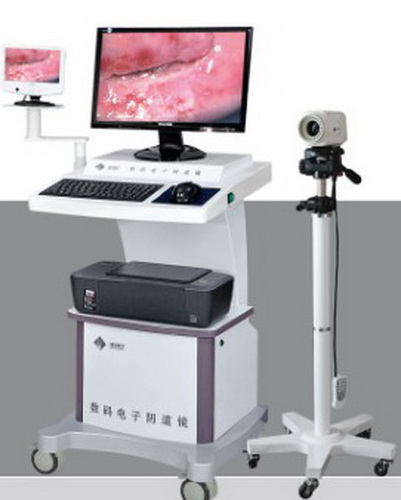

Your position: Home > Product By Name > Colposcope

Description

Specifications

Function:
Adopting imported low-power, low-attenuation LED light source, color reduction degree is 100% and the light source has no attenuation for 30,000 hours, avoiding the image blurring caused by light source attenuation.
Adopting the most advance high-power zoom anti-shake function design.
Adopting the camera intelligent control technology ensures the zoom position not shifted when high magnification zoom
Humane wired control button design avoids the jitter caused by operator.
The unique green over filter technology get a clearer image of the small lesions.
It has the functions, such as display, freeze, acquisition, delete for the image.
The imaged could be carried out various handle, for example, filling the identification, measurement of lesion length, area, etc.
The diagnosis result report could contain true color image.
The medical record management system could make a quick glance at the stored medical records and maps.
The specially designed filtering technology make the image clearer, displaying vascular morphology and systolic function.
Dedicated trestle could up/down freely. The range is 50-150cm, comprehensive free rotation.

Technic Specifications:
. Image Sensor: 1/4 SONY color digital super HAD CCD
. 19-inch high resolution LED monitor
. Visual interface: Video, PAL
. Horizontal Resolution: ≥650 TVL
. Zoom: optical zoom1- 28 times, digital zoom 1-12 times
. Innermost scope: 320-1500mm
. Minimum illumination: 0.2 Lux
. Largest magnification: 312times
. Visual Field: 20mm-25mm-320mm
. White balance: AWB model
. Function: zoom in, zoom out, magnification, narrowing, filter, green light, hardware control acetate timing
. Light source : Multi-point surrounded high-brightness white cold light source, reaching 100,000 hours.

Standard Configuration:
The main unit
Colposcope lens
Dedicated trestle
19-inch high-resolution LED monitor
Color inkjet printer

Optional:
Laser printer
Fluorescent light
