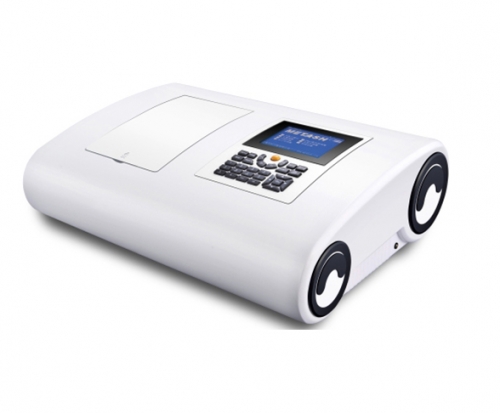

Double Beam UV/VIS Spectrophotometer

CCL-9000A series are wide screen double beam spectrophotometer.They adopt double beam long light path design to ensure the stability and accuracy; They are the best choice of high quality spectrophotometers.
Item Code: CCL-9000A
Sold: 10
    Please select the information you wantX
Wholesale Price:
2
$5,390.00
3
$5,100.00
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description
Specifications

CCL-9000A series are wide screen double beam spectrophotometer.They adopt double beam long light path design to ensure the stability and accuracy; They are the best choice of high quality spectrophotometers.

Features

Light path design: double beam

CCL-9000A series’ double light path design can prevent circuit fluctuation and stray light to ensure stability of the instrument.

Powerful software functions

Multi functions like spectrum scanning, standard curve, kinetics, multi wavelength scanning,DNA/Protein testing can be operated directly on the pc.

Long path light design

CCL-9000A series’ unique 520mm long light path design greatly improved resolution and the bandwidth can reach 0.5nm.

Multi functions on Spectrophotometer

Multi functions operated directly on the spectrophotometer and display the test results’ curve and data: wavelength scanning, standard curve, kinetics, multi wavelength scanning, DNA/Ptotein test.

16mm optical base

CCL-9000A series use a rigid 16mm diecast aluminim base as their optical mount to ensure the stability and reliability.

Perfect calibration system

All baseline, wavelength ,dark current can be calibrated automatically to keep good running conditions.

6 inches LCD display

CCL-9000A series have a 6 inches LCD display to show results and curves directly on the screen.

Data output

CCL-9000A series are equipped with USB port to connect with a PC, the softwore comes standard with the instrument.





Technical Specification



Model

CCL-9000A

 Optical System

 Double Beam(1200 Lines/mm Grating)

 Wavelength Range

190-1100nm

 Bandwidth

1nm

 Wavelength Accuracy

±0.3nm

 Wavelength Repeatability

0.2nm

 Photometric Accuracy

±0.3%T

 Photometric Repeatability

0.2%T

 Photometric Range

-0.3-3A

0-200%T

0-9999C

 Stability

± 0.001A/h @ 500nm

 Baseline Flatness

± 0.001A/h

 Noise

 ± 0.001A/h

 Stray Light

≤0.05%T @ 220nm,360nm

 Data Output Port

USB

 Printer Port

Parallel Port

 Display

320*240 Dots LCD

 Lamps

D2  Lamp & W  Lamp

 Detector

Silicon Photodiode

 Power Requirements

AC   220V/50Hz or  110V/60Hz

 Dimension

625*430*206mm

 Weight

30kg

Shipping Information:

G.W: 28kg

Packing Size: 0.63m,0.43m,0.22m

Unit: Piece

Special: No
