Description:

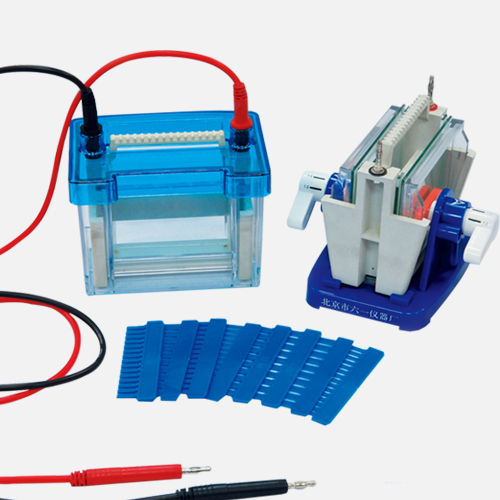

CCL-DYCZ 24DN is a delicate, simple and easy to use system. It is manufactured from high acrylic with platinum electrodes. Its seamless, injection-molded transparent base prevents leakage and breakage. This system is very safe for the users. Its power source will be turned off when user opens the lid. The special lid design avoids making mistakes.

Features:

■ Different combs and spacers is available;

■ Transparent tank for visibility without obstructions;

■ Casting and running the gel at the same place;

■ Gel casting device makes gel casting simply and save your precious time;

■ Special wedge frame design can fix gel room firmly;

■ Molded buffer tank equipted the electrodes with pure platinum;

■ Easy and convenient to add the sample;

■ Run one gel or run two gels at the same time;

■ Save buffer solution,and the basic solution only needs 170 ml;

■ Special configuration design of the tank and lid avoid the mistakes during the operation;

■ Power fails when you open the lid  for users’ safe;

■ High resolution separation with simple operation.

Specifications:

■ Gel dimension(L X W): 83 × 75 (mm);

■    Runs up to 10 or 15 samples;

■    Comb thickness: 1.0 and 1.5 (mm) ( standard configuration), 0.75 (mm) (optional configuration) ;

■    Full buffer volume: about 400ml and basic running buffer volume: about 170 ml;

■    Size (L X W X H):150×100×140 (mm);

■    Weight: about 1.0 kgs.

Applications:

For SDS – PAGE, Protein Electrophoresis.

Suitable Electrophoresis Power Supply

CCL-DYY6C,
CCL-DYY12,
