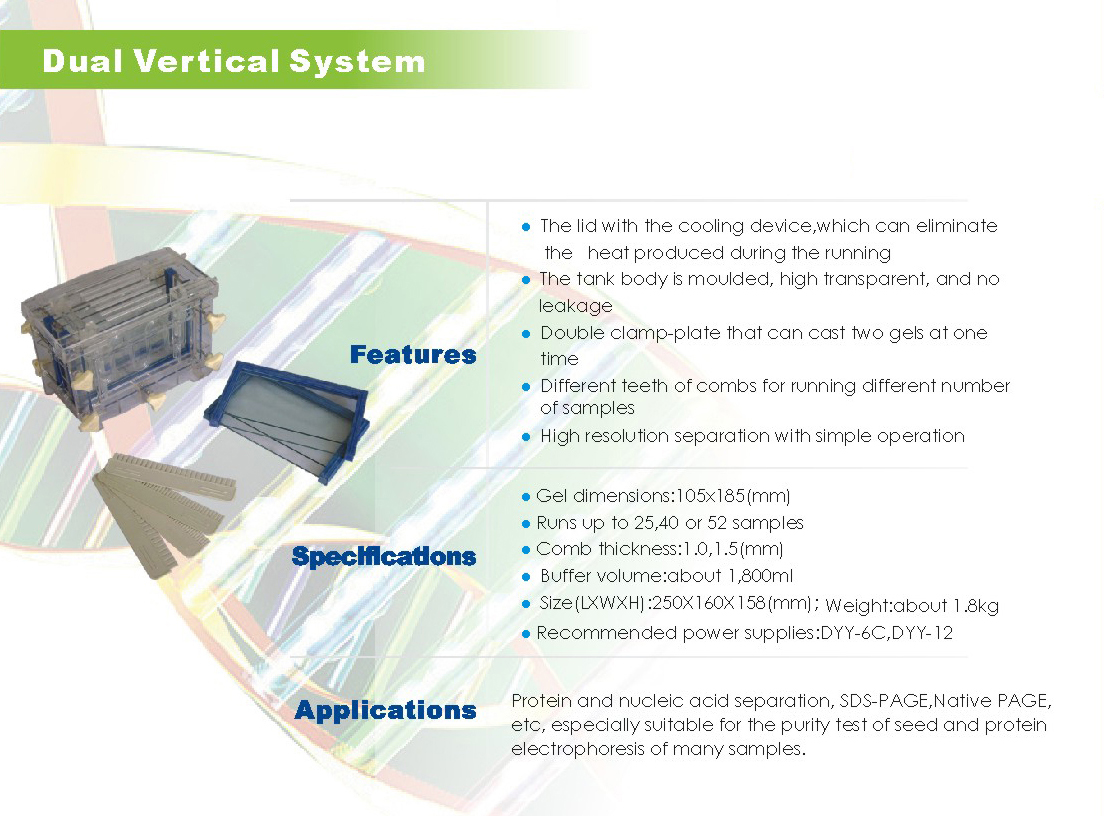

Features:

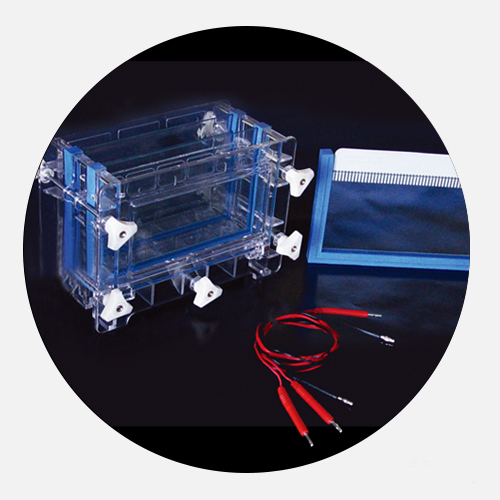

■   The tank body is moulded, high transparent and no leakage;

■   Double clamp-plate that can cast two gels at the same time;

■   Different teeth of combs for running different number of samples;

■  Electrodes are made by pure platinum ( the purity quotient of the noble metal≥99.95%)which have the features of corrosion resistance of electroanalysis and withstand high temperature.;

■   High resolution separation with simple operation.

Specifications:

■ Gel dimension (L X W): 105 × 185 (mm);

■  Runs up to 25, 40 or 52 samples;

■  Comb thickness: 1.0 (mm) ,1.5 (mm);

■  Buffer volume: about 1800 ml;

■  Size (L X W X H):250×160×158 (mm);

■   Weight: about 1.8 kg.

Applications:

Protein and nucleic acid separation, SDS-PAGE,Native PAGE,etc. especially suitable for the purity test of seed and protein electrophoresis of many samples.

Suitable Electrophoresis Power Supply
CCL-DYY6C,
