Features:

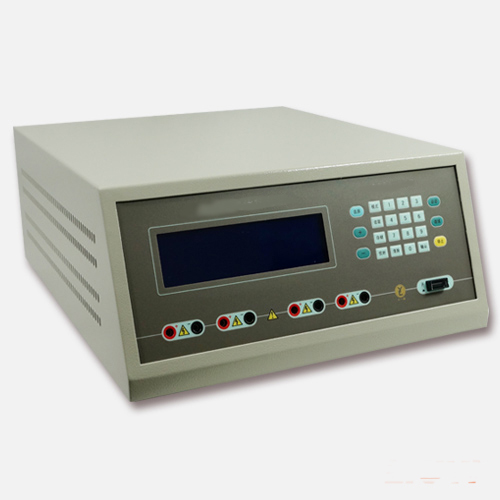

■ We adopt the microcomputer processor as the control center of the electrophoresis power supply, LCD.
■ High-powered ON/OFF switch is the output core of the electrophoresis power supply. High output power, high capability of load, high precision of the control and the high stability of the function;
■ It can work in the constant state of voltage, or in the constant state of electric current. And it can be converted automatically according to the pre-assigned parameters for different needs;
■ It has the protection functions of over voltage、short circuit, overload, sudden load change, unloaded , leaks electricity, etc.;
■ It has the function of memory for convenient use and programming with a minimum of time and effort;
■ Four groups of shunt-wound output terminals;
■ It can memorize and store nine groups of nine steps of programs that you edited;
■ Parameters can be adjusted finely during the running;


Application:

It is suitable for the ordinary protein electrophoresis or nucleic acid electrophoresis.

Specifications:
■ Power requirement:A.C. 220V±10% (50Hz±2% );
■ Input power: about 500 VA;
■ Output voltage: (4-1000)V (Increase or decrease: 1V/step);
■ Output current: (4-500) mA (Increase or decrease: 1mA/step);
■ Output power: (4-300) W (Increase or decrease: 1W/step);
■ Stability: constant voltage ≤1%; constant current≤2%; constant power ≤3%;
■ Adjustment rate:constant voltage ≤2%; constant current ≤3%; constant power≤5%;
■ Size(W x D x H): 303 x 364 x 137 (mm);
■ Weight: about 7.5 kgs.
