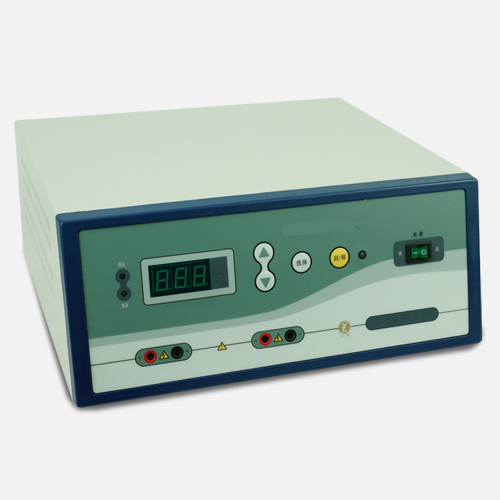

- Description
Features:
■We adopt the microcomputer processor as the control center of DYY-2C, ON/OFF switch.
■CCL-DYY2C has the following strong points:small, light, high output-power, stable functions;
■ The LCD can show you the following info.at the same time: voltage, electric current, pre-assigned time, etc.;
■ It has the warning function of timing;
■ It has the function of storing the operation parameters of last time;
■ It can work in the constant state of voltage, or in the constant state of electric current, and it can be converted automatically according to the pre-assigned parameters for different needs;
■ It has the protection function when it is under the circumstances of the unloaded, overload, suddenload change and when it is beyond the limitation
■ Parameters can be adjusted finely during the running
■ Output terminals: 2 pairs in parallel
Application:
CCL-DYY2C is most suitable for the low-current and low-power electrophoresis
Specifications:
■ Output voltage: 0 -600V, (Increase or decrease: 1V/step);
■ Output current: 0 -100mA, (Increase or decrease: 1mA/step);
■ Output power: 60W;
■ Size(L x W x H): 315 x 290 x 128 (mm);
■ Weight: about 5.0 kgs.
