Product Details

Product introduction

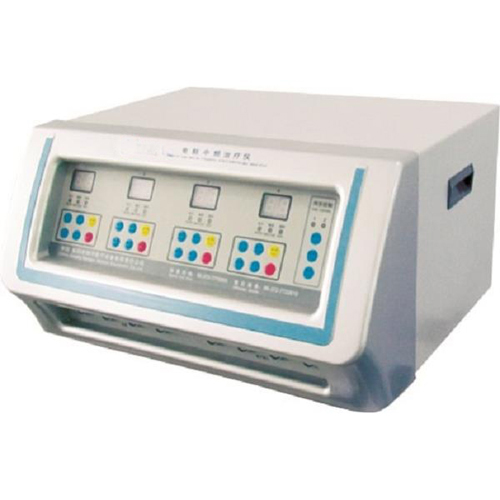

Medium Frequency therapy Device is also one of electrotherapy, which stimulates the human body with the current of 1KHZ~100KHZ to bring the analgesic, muscle exercise, blood circulation improvement, scar softening and adhesion release effects.

Product parameter

Model	CCRPID
Power supply	220V
Input power	130VA
Frequency range	1-10kHZ
MF modulation range	0-200Hz
MF modulation wave	Sine wave, square wave, triangle wave, exponential wave, sawtooth wave, sharp wave
Modulation mode	Continuous, discontinuous, intermittent, variable frequency and alternating modulation
Medium frequency modulation	50%, 75%, 100%
Medium frequency output current	Less than 100mA, adjustable
Stability of medium frequency output current	±10％
Dynamic rhythm	4s-10s
Various cycle of beat frequency	15s-30s
Output model	Four channels medium frequency diathermy output, four iontophoresis DC output, two channels interferential output
DC range	Less than 50mA
Treatment time	20min, 25min, 30min, 40min, 45min
treatment prescription	99

Product feature

a) Four channels medium-frequency plus diathermanous output, four channels ion induction direct-current output, two-way interferential current output;

b) Electrode plate temperature range: 38℃～55℃, adjustable by 3 levels;

c) 0-99 medium-frequency treatment prescriptions, prepared by the physiotherapical experts based on different diseases, for reference of doctors;

d) Optional treatment time: 20min, 25min, 30min 40min and 45min based on the prescription, sound prompt and output stopped when the treatment time is over.
