Description
User manual

Specifications

Type: Trolley

Video,

Technical Parameters

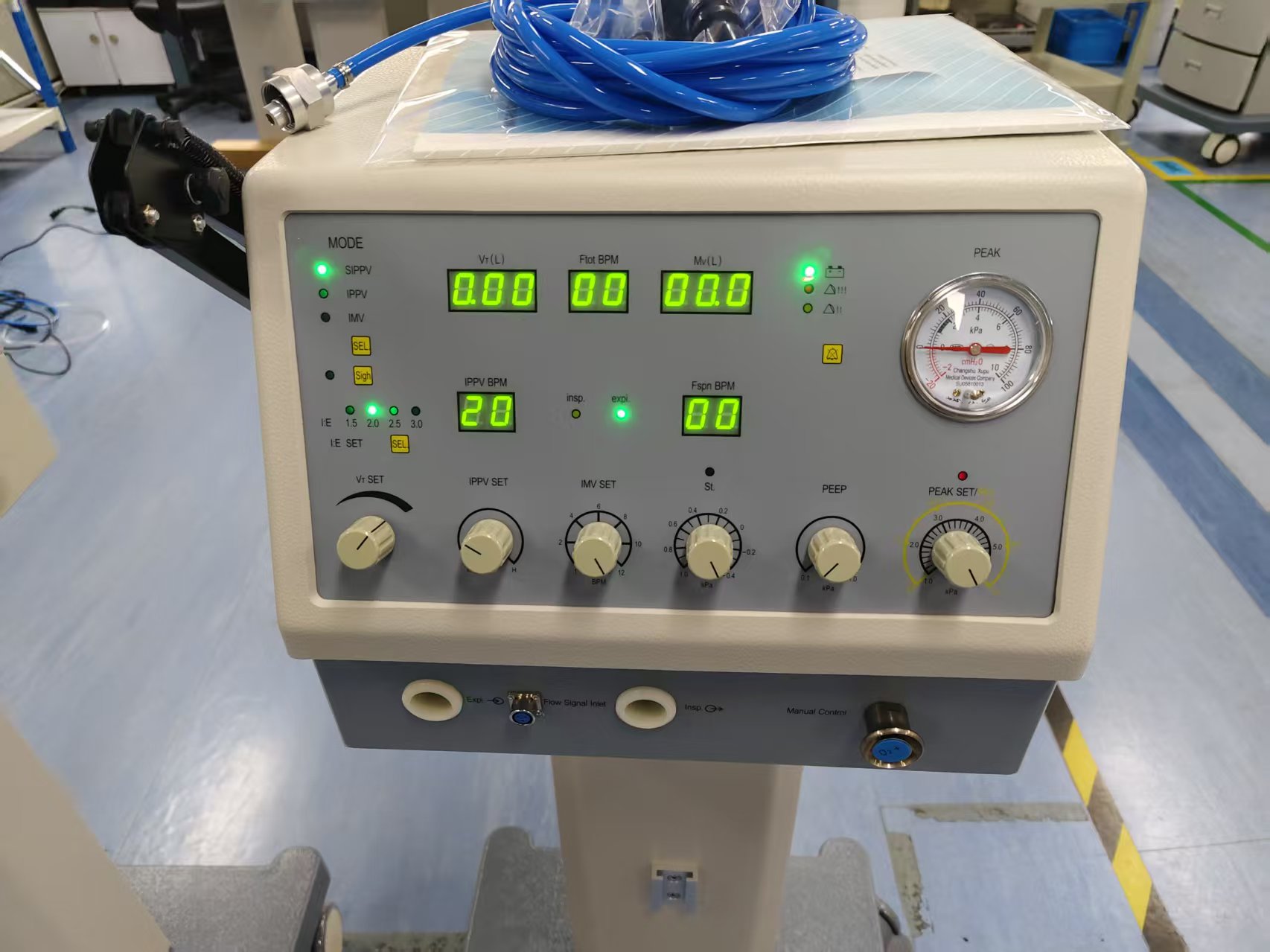

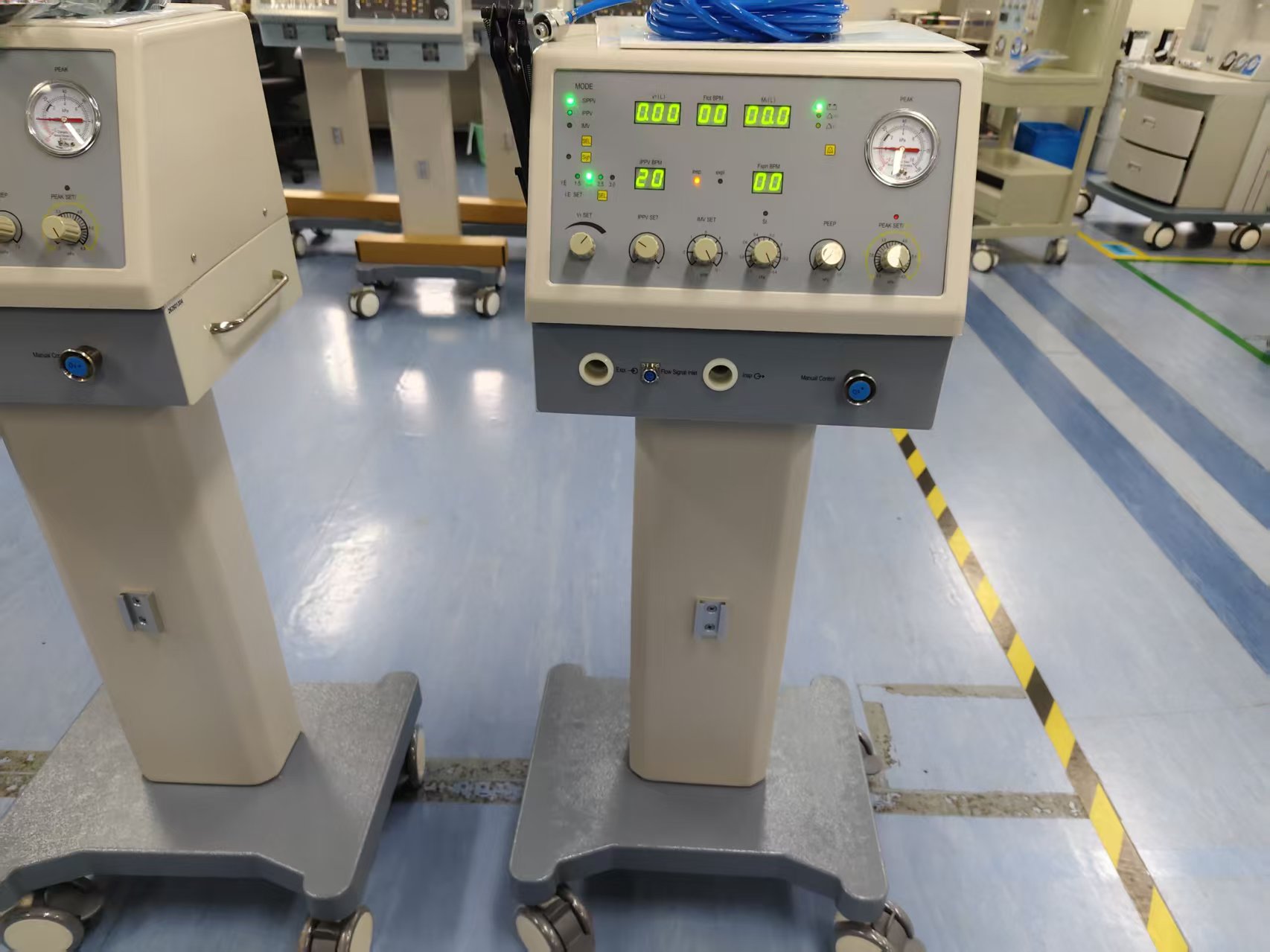

Display: LED Display Following Parameters Operating mode and respiratory rate; ——Ventilator control frequency set by medical staff; ——Tidal volume of each breath in the patient; ——Occurrence of spontaneous breath in the patient and spontaneous breathing frequency; ——Expiratory phase and inspiratory phase and actual respiratory rate; ——Minute volume; ——Setting and adjustment of inspiration triggering pressure, PEEP, and highest airway pressure; ——Real-time variation in internal airway pressure.

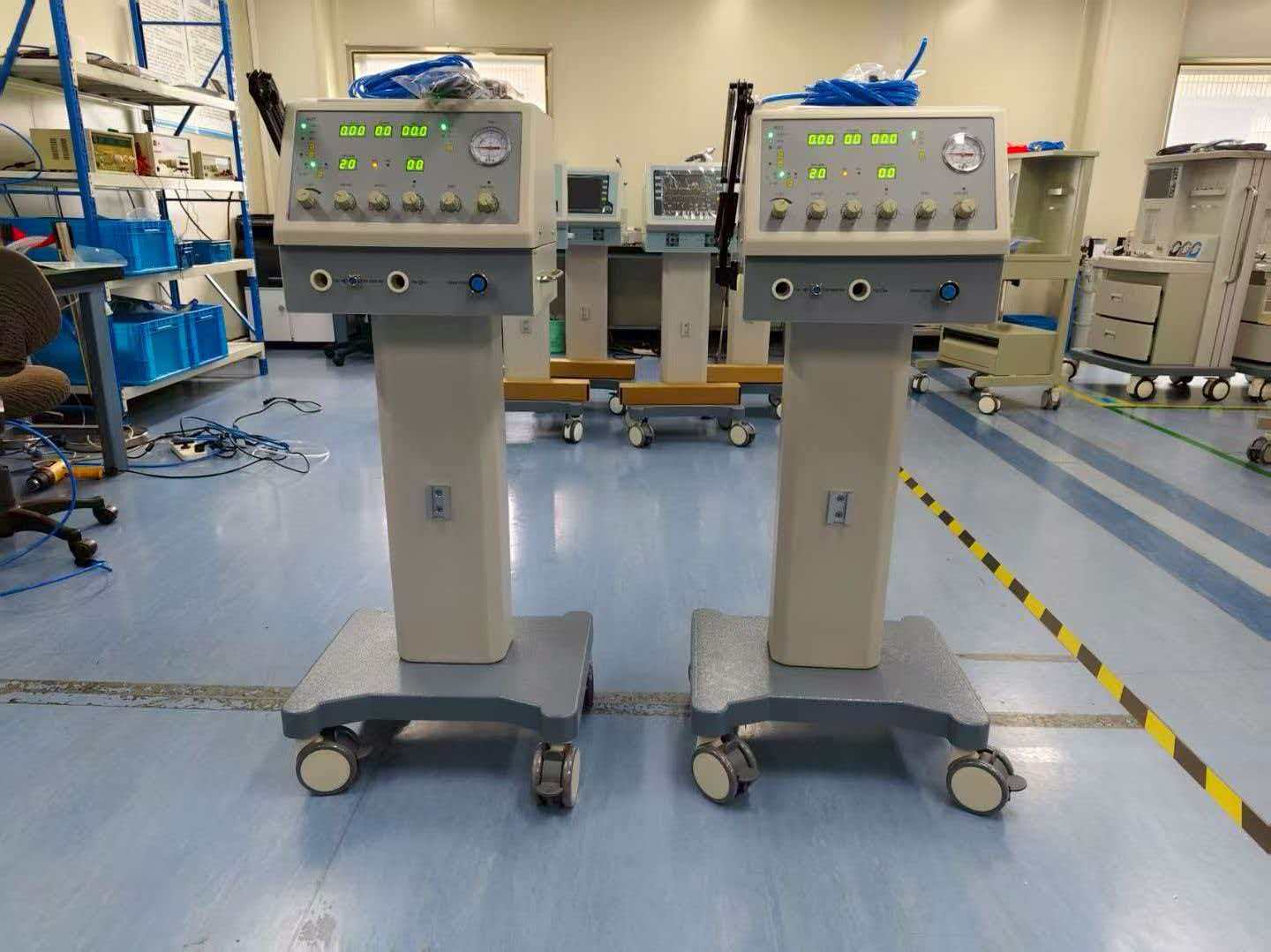

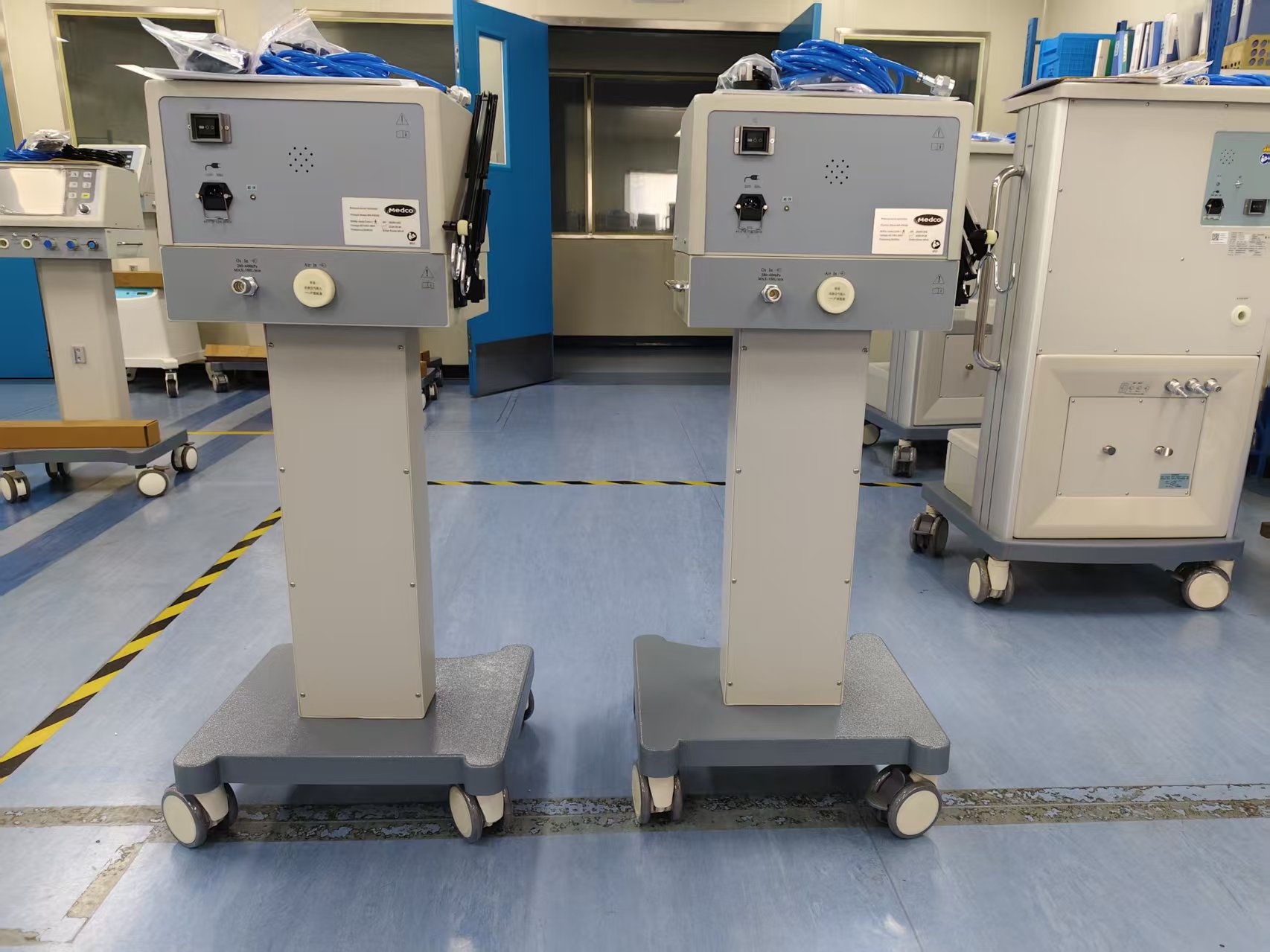

Ventilator Construction: --Environmental Protection Material construction, hardly to be broken. -- Trolly: Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions

Product Features
Physical specifications
Display   LED Display
Mode:pneumatically powered and electrically controlled system
Trolley:Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions
Technical Specifications:
Gas requirement:Medical oxygen with a pressure ranging from 280~600kpa
safety valve:<12.5 kPa
Respiratory Rate:6~60 times/ min
Oxygen concentration output:<50%
minute volume:≥18L
modes of ventilation:A/C, IPPV, SIPPV, IMV, SIMV, PEET. MANUAL
PEEP:0.1 ~ 1.0 kPa
Ptr:-4 ~ 10 hPa
IMV frequency:1~12 bpm
I/E Ratio:1:1.5; 1:2.0; 1:2.5; 1:3.0
Tidal Volume:0-2000ml
Inspiratory Plateau:0~1s
Maximum Safety Pressure:≤ 6.0kPa
Sigh:    one deep breath per 80 controlled respirations, the inspiration time is 1.5 times of the setting point
Pressure limit range:0 ~ 6.0 kPa
Airway pressure alarm: Audible and visual and with yellow and red color indicating   Lower: 0.9 kPa ~ 5.4 kPa; Upper: 0.5 kPa
   ±0.2 kPa
Ventilation Volume alarm:    ≥ 18L/ MIN
Power Supply Alarm   "Ac/dc power supply are after failing to send out alarm immediately
Alarm Time: keep >120s"
The airway pressure continues to be higher than 15 hPa ±1 hPa for 15s±1s, then the machine will raise an audible alarm, the pressure will be displayed in red and the continuous high pressure red alarm wording is displayed on the screen of the anesthetic respirator.
Operating conditions
Ambient temperature:10 ~ 40oC
Relative humidity:no higher than 80 %
Atmospheric pressure:860 hPa ~ 1060 hPa
Power requirement:100-240 Vac, 50/60 Hz;
Attention:the AC power supply used for the anesthesia machine must be well grounded.
Attention:the anesthesia machine used must be equipped with a carbon dioxide monitor complying with ISO 9918:1993, an oxygen monitor complying with ISO 7767:1997 and an expiratory gas volume monitor complying with 51.101.4.2 of Medical Electrical Equipment Part II: Special Requirements for Safety and Basic Performance of Anesthesia System.
Storage
Ambient temperature:-15oC ~ +50oC
Relative humidity:no higher than 95 %
Atmospheric pressure:86 kPa ~ 106 kPa.
   It should be stored in a room without corrosive gas and well ventilated
Package
packaging box   comply with the requirement of GB/T 15464
   Between the packaging box and product, soft material with appropriate thickness provided to prevent loosening and mutual friction during transportation
   Moisture protection and rain protection to ensure that product is protected from natural damage.
Safty & Alarm
Gas source pressure:Immediate alarm; “high level alarm” indicator flickers raising an audible alarm.
Airway Pressure Alarm:The airway pressure exceeds 15hpa. The maximum delay is no longer than 17s. The “high level alarm” indicator flickers raising an audible alarm.
Tidal Volume Alarm   Lower than 50ml, The alarm will be raised after one breathing cycle.
Ventilation Volume Alarm:Lower: 0~12L/Min; Up: 18L/ Min
Battery Voltage Alarm:It alrms when the battery voltage is lower than 10.5V.
Power On Self Test:Self test before working, assure it's working normally.

STANDARD CONFIGURATIONS
QTY   NAME
1 set   Main unit
1 set   Oxygen tube
2 set   Silicone Mask
1 pc   Power line
2 pcs   Threaded pipe
2 pcs   Standard Pipe
1 set   Oxygen Reducer
1 set   Humidifier
1 pc   Battery
1 set   flow sensor
2 pcs   A leather bag ( Blue)
1 set   Tools with the machine
1 set   User Manual (English Version)

Kits
Ventilator(including air-oxygen mixer,automatic airway pressure relief valve),oxygen cylinder,regulator,face mask,laryngoscope,endotracheal tube,suction device,suction union pipe,airway opener,oxygen refill fitting,oxygen supply extension pipe,wrench,portable nylon bag or hard case.
