Description

Specifications

Introduction
CCE-EH9803 Dynamic ECG Systems adapts 3-lead system defined by our company, can record continuouslyECG waves for 24h, and analyses waves with PC software. It is applicable in hospital and community medical establishment.

Main Features
■Quick and accurate analysis system.
■The 3-lead synchro analysis, to find accurate, QRS search can be accurate and no distortion.
■There are more than 10 templates as atrial premature beat module, ventricular premature beat module, long interval module, atrial flutter module, atrial fibrillation module etc. and multiplicate User-defined templates could almost identify every kind of pathologic waveforms.
■Flexible analysis channel selection function, can choose any channel as the mainly analysis the channel.
■Flexible atrial fibrillation analysis,so that physicians can use full,segmented automatic,manual analysis of atrial fibrillation,make the analysis more quickly and accurately.
■Powerful pacemaker analysis, on the AAI,VVI,DDD etc. all pacemaker analysis.
■Many pacing modules have been added.
■Fast review analysis function, can be any period of time the review single lead or all leads electrocardiogram.
■Analysis of heard rate variability with short-range 5 minutes and long-range 1 hour and 24 hours analysis of heart rate variability.
■One-stop printing operation, report printing process is convenient and quick.
■Perfect function of case management.
■Advanced ST segment analysis and myocardial ischemia total load, can for the ST abnormal analysis according to the whole and event, make the doctor can comprehensive judgment myocardial ischemia.
■Unique "Sleep breath pause syndrome analysis" analysis can predict Sleep breath pause risk.
■"HRT" analysis can predict the risk of death in patients with myocardial infarction.
■"T Wave alternation" analysis is an important index to predict malignant arrhythmia and sudden cardiac death.

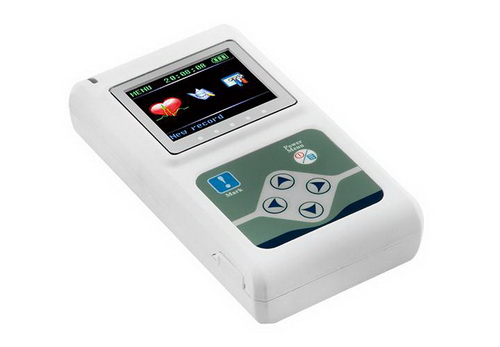

Recorder features
■With advanced design and technology, the recorder can work stably, dependably and durably.
■Be provided with the capability of anti-jamming and aseismatic.
■Small volume with OLED screen. The resolution is 160*128.
■Be provided with functions of waveform preview, record review and event marking.
■Accurate record of the start time of the data sampled owing to the real time clock of itself.
■Avoid damage owing to the repeating inserting and pulling out by using the inbuilt TF card to storage the data.
■The maximum capability can be 2GB, so the original data can be saved perfectly by no compression.
■The average review time of single case can be less than 40 seconds by using interface of USB 2.0.
■Record waveform details inextenso by the design of high precision and sampling frequency.
■Record the state of pacemaker exactly by higher sampling frequency.
