- Description

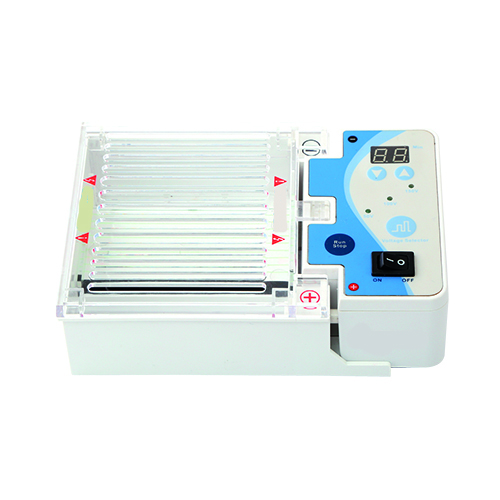

Mini Electrophoresis System is specifically designed for DNA and RNA electrophoresis. Voltages 35V / 50V / 100V, compact, lightweight and easy to operate are its features.
1. Mini-ES1: AC100~120V 50~60Hz
2. Mini-ES2: AC220~240V with transformer 50~60Hz
3. Output Power: DC35V/DC50V/DC100V
Introduce,
Mini Electrophoresis System is specifically designed for DNA and RNA electrophoresis. Voltages
35V/50V/100V, compact, lightweight and easy to operate are its features.
A magnetic sensor allows current to flow to the electrodes only when the lid is in place. If the lid is removed while the system is operating, it will be shut down immediately. It's ideal for many applications, including Northern and Southern blotting, Cosmid library restriction analysis microsatellite analysis PCR fragment analysis, DNA fingerprinting and high-throughput analysis.
Features,
1. Input Power: AC100~120V 50~60Hz or AC220~240V with transformer 50~60Hz
2. Output Power: DC35V/DC50V/DC100V
3. Bath Dimensions (WxDxH): 110x121x43mm
4. Volume of Bath: 230ml
5. Construction of Bath: PC+ABS with high temperature resistance
6. Max.Power:40W
7. Timer range:1min~99min
8. Overall Dimensions (WxDxH):190x130x60mm
Specifications,
MODEL | CCL-MNES |
Input Power | CCL-MNES1: AC100~120V 50~60Hz CCL-MNES2: AC220~240V with transformer 50~60Hz |
Output Power | DC35V/DC50V/DC100V |
Bath Dimensions (WxDxH) | 110x121x43mm |
Volume of Bath | 230ml |
Construction of Bath | PC+ABS with high temperature resistance |
Max.Power | 40W |
Timer | 1~99min |
Dimensions(mm) | 190x130x60mm |
Accessories
Tooth wide(width x thickness x no) | 3mmx1mm x 22/ 5.6mmx1mmx12/ 3mmx1mmx18/ 5.6mmx1mmx10 |
Gel Dimension (WxD)mm | 126x126mm-1pcs |
Gel Migration Board (WxD)mm | 110x60mm-2pcs/54x60mm-4pcs |
Shipping Information:
G.W: 2.5kg
Packing Size: 0.35m,0.2m,0.2m
Unit: Piece
Special: No
