Description

Specifications

Type: Trolley Type Ventilation Mode: IPPV, MANUAL

The high-precision Vaporizer is designed with a stable concentrationoutput,automatic compensation for pressure, temperature and flow rate.And it is available to choose one kind of gas from Halothane,Enflurane,Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.Reliable pneumatic transmission system.
Economic and proper configuration of technologies,optional as requiredby the Customer.
Modularized design and upgrading. Upgrading is available as required bythe Customer.

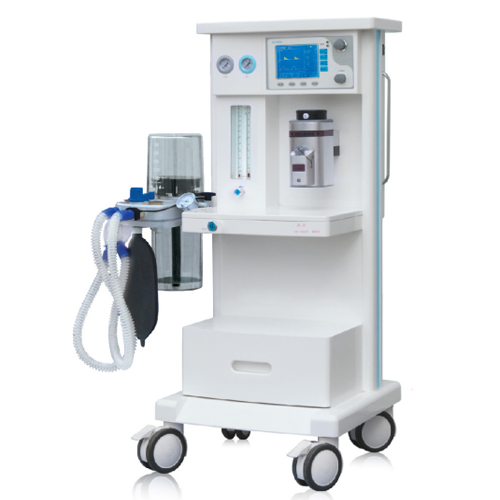

Anesthesia MachineMain body
High-strength engineering plastic rack，light,beautiful and corrosion resistant
Scope of application
adult,child
Gas source
O2:0.28~0.6MPa NzO: 0.28~0.6MPa
Flow meter
O2: 0.1~1.0L/min1.1~10L/min(O2:0.1~10L/min NzO:0.1~10L/min)
(Oz,NzO linkage and NzO Stopper )
(When using nitrous oxide, oxygen concentration≥25%;When theoxygen pressure<0.2Mpa,the flow of nitrous oxide would be cut off)Flow rate of rapid onygen supply 25~75L/min
Low oxygen pressure alarm it will be alarmed when the oxygen pressure
0.2MPa
Vaporizer
(it has the function of automatic compensation based on pressure, temperatureand flow rate.The regulation range of evaporator concentration is 0~5vol%.)Among Halothane,Enflurane,lsoflurane and Sevoflurane,one can be chosenfor application as required by the customer.
Respiratory circuit
working mode: all-close, semi-close, semi-openAPL:≤12.5kPa
Respiratory Bellows
bellows for adults,bellows for childrentidal volume range:0~1500ml

Ventilator
Display mode
High-definition 4.8-inch LCD screen display
Ventilation mode
lPPV .MANUAL (Manual monitoring of tidalvolume, ventilation volume,respiratory rate)
Ventilation function
IRV
Ventilation parameters
Tidal volume
50~1500ml
Rate
4~80bpm
I:E
2:1~1:4
Pressure range
1.0~6.0kPa
Parameters for ventilation monitoring
tidal volume, ventilation volume,IPPV rate,I/E, peak pressure of airway,pressure - time waveform
Security Alert SystemAirway pressure alarm
upper limit setting range1.0~6.OkPalow limit setting range0.4~2.0kPa
TV alarm
upper limit setting range0.5~2.0Llow limit setting range 0.02~1.0L
Sustained high-pressure alarm
it will give alarm when stress have consistentlybeen higher than 2.5kPa
Suffocation alarm
Power alarm
Power
AC 100~240V 50/60Hz
Items within brackets are optional.
