Description

Specifications

Application: Abdomen, OB/GYN, Small Parts, MSK, Vascular, Anaesthesia, Emergency Style: Portable Types: Black and White

Main Specifications

Scanning mode
electronic scanning

Display modes

T35R60GB convex array probe: B, B/B, 4B, B+M, M;

T50R20GB type micro convex probe: B, B/B, B+M, M;

T65R13GB type cavity probe: only B;

T75L40GB type linear array probe: only B;

Image multiplying factor

35R60GB convex array probe, Type B, real-time state:×0.8, ×1.0, ×

1.2, × 1.5，×1 .8, ×2.0;

×0.8, ×2.0 (display penetration depth);

T65R13GB type cavity probe: ×0.8, ×1.0, ×1.2, ×1.5.

M type:

M type scanning has eight kinds of speed can be selected;

M mode or B+M mode ：When the heart rate of more than 100,

measurement error will increase

Zoom

Local x 2.0 magnification rate

Dynamic range
0~120dB adjustable

Frequency

T35R60GBconvex array probe real-time

scan:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHzfive periodsof

frequency conversion;

T65R13GB type cavity probe/ T75L40GB type linear array probe real

time scan:

5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHzfive periods of

frequency conversion.

Focus position

Sending:1, 2, 3 and 4-segments dynamic electronic

focusing;when 1、2-segmentsfocus, the focus can be

moved.

Receiving: receive real-time dynamic focus by focus

Measuring function

Distance, Circumference/Area(method of ellipse,

method of loci), Volume, Heart rate, Gestational Weeks

(BPD, GS, CRL, FL, HC、AC), Expected date of

CCB-F30B

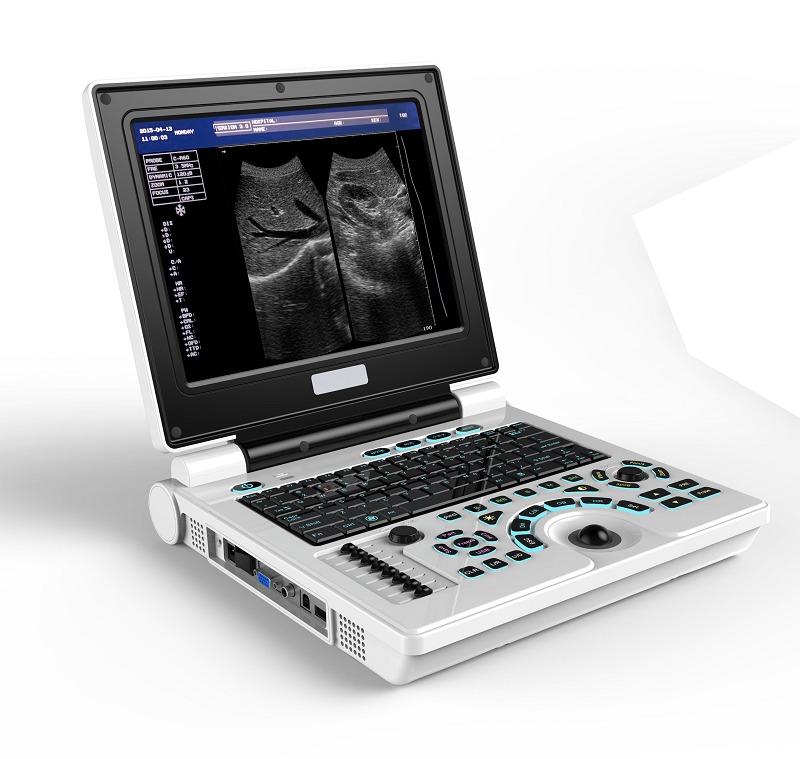

Notebook B/W Ultrasoundconfinement and Fetus weight, etc.

Annotation function

Hospital name, Patient’s name, Age and Gender;

64 body marks (with probe’s position); Full-screen character

annotation; Real-time clock display;

Puncture guide

3.5MHz convex array probe can display puncture guide

line in B mode.

Gain control

8 segments TGC and overall gain can be adjusted

respectively.

Image polarity
left and right flip,black and white flip,up and down flip.

Permanent storage

≧128 images.

Image playback

series playback or check one by one

Image processing

γ correction, Frame correlation, Point correlation, Line

correlation, Digital filtering,Digital Edge Enhancement

and Pseudo Color Processing, etc.

USB interface
Only forU disk storage image, image formatis BMP.

Output interface

SVGA video output offers connection to SVGA color display;

workstation, etc.

PAL video output offers connection to PAL display, video image

recorder and image

Probes Functions,
Convex probe
Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz
Depth: 16 level (126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm)
Applications: Abdominal, Obstetrics, Gynecology, Regional nerve block, Procedure and Biopsy guidance

Linear probe
Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level (35,42,49,62,69,76,83,90,97,104mm)
Applications: Breast, small parts, nerve, vascular, venous access, musculoskeletal, biopsy guidance

Trans-vaginal probe
Frequency: 5.0MHz,5.5MHz,6.5MHz,7.0MHz,7.5MHz
Depth: 16 level (62,69,76,83,90,97,104,111,125,139mm)
Applications: Obstetrics, gynecology

Micro-convex probe
Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level (62,69,83,97,111,125,139,152,166,180mm)
Applications: Pediatric heart, basic function
