- Description
Product Details

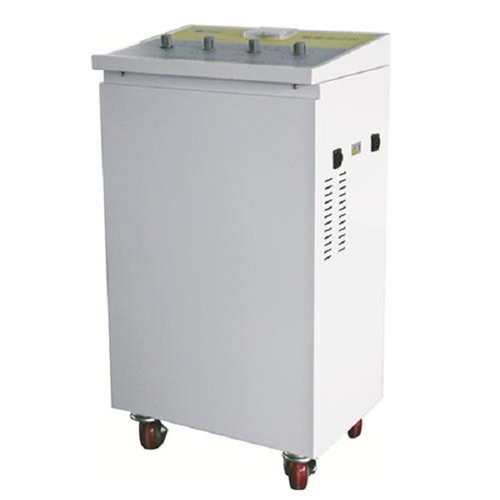

Product introduction
Electromagnetic wave shortwave therapeutic has the lower frequency than the previous radio frequency, stronger wavelength penetration, making the treatment more accurate and more effective, thereby enhancing the therapeutic effect. Through the generation of warm effects, promote the blood circulation of the lesion, accelerate the dissipation and absorption of inflammation, and promote the healing of the lesion.
Principle
Under the effect of electric field, the charged particles and polarized molecules will generate the thermal effect by mutual friction due to vigorous activity, which can dilate the local tissue vessels, accelerate the blood circulation, accelerate the tissue metabolism, strengthen the phagocytosis of blood cells, promote the absorption of pathological metabolites, and bring the anti-inflammatory, anti-swelling and analgesic effects.
Shortwave effect on the human body produces three main effects: thermal effects, micro-thermal effects and no thermal effects.
Thermal effects: endogenous heat changes after the tissue absorbs electrical energy, which can reach deep in the body, with uniformity and selectivity. This feature has a unique therapeutic effect on nerves, bones and internal organs.
Micro-thermal effects: can improve blood circulation, with analgesic anti-inflammatory, reduce muscle tension.
No thermal effects: sub-acute conditions of anti-inflammatory, accelerate tissue growth and repair, improve immunity has a unique clinical role.
Product parameter
Model |
CCRBIV |
Power supply |
220V |
Rated input power |
700VA |
Output power |
20W, 40W, 60W, 100W, 200W adjustable |
Working frequency |
27.12MHz |
Pulse modulation frequency |
Sparse wave MF 70Hz dense wave DF 350Hz |
Modulation waveform |
Square wave |
Modulation pulse width |
Thin 7.15ms, dense 1.43ms |
Modulation |
100% |
Treatment time |
10min,15min,20min,25min,30mi |
specifications |
430*330*830mm |
Application
Gastritis, ulcer disease, colitis, gastrointestinal spasm, cholecystitis, hepatitis, pneumonia, bronchial asthma, bronchitis, cystitis, pyelonephritis, acute;
Kidney failure, myositis, fibrositis, myalgia, contusion, hematoma, frozen shoulder, arthritis, prostatitis, postoperative adhesions, pelvic inflammatory disease, annex inflammation,Uterine hypoplasia, neuralgia and peripheral nerve injury and other adjuvant therapy.
Shipping Information:
G.W: 48kg
Packing Size: 0.51m,0.4m,1m
Unit: Piece
Special: No
