- Description

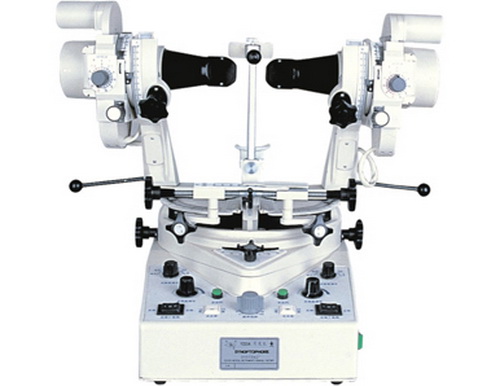

Synoptophore is an ophthalmic instrument designed with optical, mechanical and electrical technology, which can be applied in inspecting and treating various binocular functions, such as strabismus, amblyopia, diplopia, heterophoria, etc.
Detailed profile
Characteristics:
· With functions of diagnosis, treatment, simultaneous viewing, syncretic viewing, solid viewing, and afterimage.
· Equipped with a pair of Haidingers Brush and 20 pairs of pictures with different angle.
· Advanced semi-transparent and semi- reflecting viewfinder is convenient for the surgeon to observe.
· Advanced LED luminophor has even lllumination, low heat and long service life.
· Pictures designed by new technology are anti-broken and has long service life.
· Manual or automatical coruscation with accurate frequency are at surgeon’s option.
· Optional pictures for quantitative measuring of solid acutance (40”~1000”)
Specifications:
Detailed profile
Characteristics:
· With functions of diagnosis, treatment, simultaneous viewing, syncretic viewing, solid viewing, and afterimage.
· Equipped with a pair of Haidingers Brush and 20 pairs of pictures with different angle.
· Advanced semi-transparent and semi- reflecting viewfinder is convenient for the surgeon to observe.
· Advanced LED luminophor has even lllumination, low heat and long service life.
· Pictures designed by new technology are anti-broken and has long service life.
· Manual or automatical coruscation with accurate frequency are at surgeon’s option.
· Optional pictures for quantitative measuring of solid acutance (40”~1000”)
Specifications:
Magnification | 1.65x |
Diameter of Field | ≥56mm |
Red light | 640mm coruscation system |
Left and right tubes rotate around erect axis | converging 50°, diverging 40° |
Left and right tubes rotate around horizontal axis | ±30° |
Pictures of left and right can be moved up and down according optical axis |
±10 |
Pictures of left and right rotate around optical axis | ±20° |
Adjustable range of interpupillary distance | 45~75mm |
Darkroom illumination | LED bulb with symmetry design |
Adjustable Haidingers Brush | 50-100round/ minute |
Coruscation form | manual or automatic |
