- Description
Ⅰ. General Information

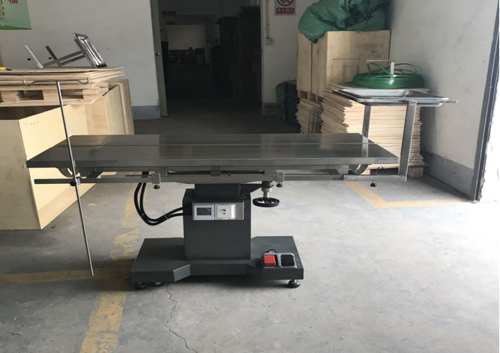

The DWV-IIDD veterinary operating table is available for the operations of many animals such as pigs, dogs, and sheep etc. And it’s reasonable and excellent machinery and credible performance makes it facile and applied.
Ⅱ. Technical Parameters
1) Table height:800mm to 1000mm
2) Table size: 1400mm × 650mm
3) Table gradient: ±15°
4) The V-top: 0 to 45°
Ⅲ. Facture and Performance
1) DWV-IIDDB veterinary operating table is made up of the table-board, pin and electric-lift base, equipped with operating bracket tray and infusion support.
2) Table board is made of stainless steel. The drain port makes easy washing and disinfection.
3) The lift mechanism of the electric-lift base is completely foot-operated, both up and down, allowing quick and easy adjustment of the table top to a comfortable height and position.
4) Moveable on wheels.
Ⅳ. Installation and Use
1) The table is set before delivery, just unpack the plywood case, take the table out, then it can be put into use.
2) When using the tray, the screw should be screwed down.
3) When adjusting the height, stepping on the left pedal gently, then the table-board goes up; stepping on the right pedal gently, the table-board goes down.
4) The tilting mechanism works when circumgyrating the handwheel.
5) The 4 supporting screws should be locked to the ground when assembling the table. The casters will make it flexible when the screws are unlocked.
6) During the operation, the slide bar should be adjusted to the right place and fixed first, and the animal would be fastened then. If the pothook is needed, it can be inserted into the side pipe and fixed.
7) Please stop stepping firmly, if the resistance is too strong during the ups and downs.
8) Please read the manual introduction before operation.
9) Please clean the table-board after using.
Ⅴ. Maintenance and overhaul
1) The maintenance free of charge lasts for one year.
2) The table you bought can be exchanged for any quality problems. The spoiling caused by improper use is not in the tradition.
3) Please handle with care during the procedures of assembly, disassembly and delivery.
Ⅵ. Others
Product certification, quality guarantee and manual are attached in the packing box.
The DWV-IIDD veterinary operating table is available for the operations of many animals such as pigs, dogs, and sheep etc. And it’s reasonable and excellent machinery and credible performance makes it facile and applied.
Ⅱ. Technical Parameters
1) Table height:800mm to 1000mm
2) Table size: 1400mm × 650mm
3) Table gradient: ±15°
4) The V-top: 0 to 45°
Ⅲ. Facture and Performance
1) DWV-IIDDB veterinary operating table is made up of the table-board, pin and electric-lift base, equipped with operating bracket tray and infusion support.
2) Table board is made of stainless steel. The drain port makes easy washing and disinfection.
3) The lift mechanism of the electric-lift base is completely foot-operated, both up and down, allowing quick and easy adjustment of the table top to a comfortable height and position.
4) Moveable on wheels.
Ⅳ. Installation and Use
1) The table is set before delivery, just unpack the plywood case, take the table out, then it can be put into use.
2) When using the tray, the screw should be screwed down.
3) When adjusting the height, stepping on the left pedal gently, then the table-board goes up; stepping on the right pedal gently, the table-board goes down.
4) The tilting mechanism works when circumgyrating the handwheel.
5) The 4 supporting screws should be locked to the ground when assembling the table. The casters will make it flexible when the screws are unlocked.
6) During the operation, the slide bar should be adjusted to the right place and fixed first, and the animal would be fastened then. If the pothook is needed, it can be inserted into the side pipe and fixed.
7) Please stop stepping firmly, if the resistance is too strong during the ups and downs.
8) Please read the manual introduction before operation.
9) Please clean the table-board after using.
Ⅴ. Maintenance and overhaul
1) The maintenance free of charge lasts for one year.
2) The table you bought can be exchanged for any quality problems. The spoiling caused by improper use is not in the tradition.
3) Please handle with care during the procedures of assembly, disassembly and delivery.
Ⅵ. Others
Product certification, quality guarantee and manual are attached in the packing box.
Shipping Information:
G.W: 150kg
Packing Size: 1.45m,0.7m,1.02m
Unit: Piece
Special: No
