Ⅰ. General Information

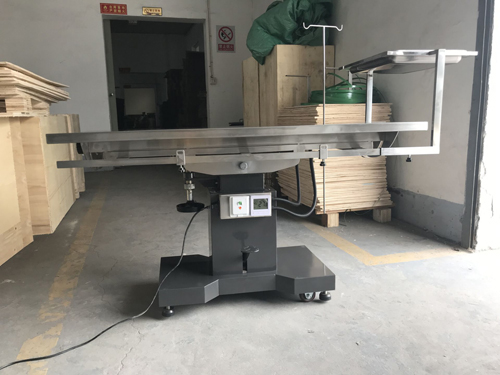

The sturdy veterinary operating table is available for the operations of many animals such as pigs, dogs, and sheep and so on. And its reasonable and excellent machinery and credible performance make it facile and applied.
Ⅱ. Engineer Parameters
1) Table height: 820mm to 930mm
2) Table size: 1400mm × 650mm
3) Table gradient: ±15°
4) The V-top: 0 to 45°
5) Constant temperature range :0-50℃
Ⅲ. Facture and Performance
1) veterinary operating table is made up of the table-board, pin and hydraulic-lift base, matching with operating bracket tray.
2) The table board is made of stainless steel. The drainpipe makes easy washing and disinfection.
3) The lift mechanism of the hydraulic-lift base is completely foot-operated, both up and down, allowing quick and easy adjustment of the table top to a comfortable height and position.
4) Base with casters adds mobility to the table.
Ⅳ. Installation and Use
1) Put the table-board on top of the table base, plug into the pin, then it can be put into use.
2) When using the tray, the screw should be screwed down.
3) When adjusting the height, stepping on the pedal gently, then the table-board goes up; stepping on the pedal to the lowest and pressing the table-board gently, then it comes down.
4) The tilting mechanism works when circumgyrating the handwheel.
5) The 4 supporting screws should be locked to the ground when assembling the table. The casters will make it flexible when the screws are unlocked.
6) During the operation, the slide bar should be adjusted to the right place and fixed first, and the animal would be fastened then. If the pothook is needed, it can be inserted into the side pipe and fixed.
7) The temperature range of table-board is 0-50℃, the temperature of table is set before leave factory.
8) Please stop stepping firmly, if the resistance is too strong during the ups and downs.
9) Please read the manual introduction before operation.
10) Please clean the table-board after using.
Ⅴ. Maintenance and overhaul
1) The maintenance free of charge lasts for one year.
2) The table you bought can be exchanged for any quality problems. The spoiling caused by improper use is not in the tradition.
3) The copper bars in the hydraulic-lift pedal need lube every half a month.
4) Please handle with care during the procedures of assembly, disassembly and delivery.
Ⅵ. Others
Product certification, quality guarantee and manual are attached in the packing box.
The sturdy veterinary operating table is available for the operations of many animals such as pigs, dogs, and sheep and so on. And its reasonable and excellent machinery and credible performance make it facile and applied.
Ⅱ. Engineer Parameters
1) Table height: 820mm to 930mm
2) Table size: 1400mm × 650mm
3) Table gradient: ±15°
4) The V-top: 0 to 45°
5) Constant temperature range :0-50℃
Ⅲ. Facture and Performance
1) veterinary operating table is made up of the table-board, pin and hydraulic-lift base, matching with operating bracket tray.
2) The table board is made of stainless steel. The drainpipe makes easy washing and disinfection.
3) The lift mechanism of the hydraulic-lift base is completely foot-operated, both up and down, allowing quick and easy adjustment of the table top to a comfortable height and position.
4) Base with casters adds mobility to the table.
Ⅳ. Installation and Use
1) Put the table-board on top of the table base, plug into the pin, then it can be put into use.
2) When using the tray, the screw should be screwed down.
3) When adjusting the height, stepping on the pedal gently, then the table-board goes up; stepping on the pedal to the lowest and pressing the table-board gently, then it comes down.
4) The tilting mechanism works when circumgyrating the handwheel.
5) The 4 supporting screws should be locked to the ground when assembling the table. The casters will make it flexible when the screws are unlocked.
6) During the operation, the slide bar should be adjusted to the right place and fixed first, and the animal would be fastened then. If the pothook is needed, it can be inserted into the side pipe and fixed.
7) The temperature range of table-board is 0-50℃, the temperature of table is set before leave factory.
8) Please stop stepping firmly, if the resistance is too strong during the ups and downs.
9) Please read the manual introduction before operation.
10) Please clean the table-board after using.
Ⅴ. Maintenance and overhaul
1) The maintenance free of charge lasts for one year.
2) The table you bought can be exchanged for any quality problems. The spoiling caused by improper use is not in the tradition.
3) The copper bars in the hydraulic-lift pedal need lube every half a month.
4) Please handle with care during the procedures of assembly, disassembly and delivery.
Ⅵ. Others
Product certification, quality guarantee and manual are attached in the packing box.
Shipping Information:
G.W: 145kg
Packing Size: 1.45m,0.7m,1.02m
Unit: Piece
