- Description
Technical Specifications

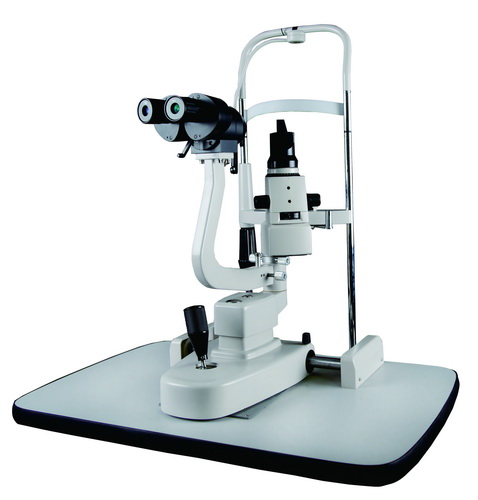

| Microscope |
Type | Zeiss |
| Magnification change | Lever type | |
| Light source |
LED |
|
| Real fields of view |
9mm-18mm | |
| Stereoscopical angle: 13 degree |
13 degree | |
| Eyepiece | 10x 16x | |
| Total magnification |
10x 16x 25 x |
|
| Field of View |
10X: 20mm, 16X: 13mm, 25X: 8mm | |
| Range of adjusting the distance of pupi | ||
| pter adjustment |
≧±6D can reach ±8D(eyepiece10X) ; ±15D (eyepiece16X) ; | |
| Slit image width |
0mm～14mm continuous | |
| Slit image length |
1mm～14mm continuous | |
| Diameter of aperture |
φ14mm、φ10mm、φ5mm、φ2mm、φ1mm、φ0.2mm | |
| Slit angle | 0～180 Rota table | |
| Filter | Heat absorption, Grey, red free(Green), Cobalt blue | |
| Moving |
Back and forth moving |
90mm |
| Left and right moving | 100mm | |
| Inching moving back and forth, right and left |
15mm | |
| Up and down moving | 30mm | |
| Jaw bracket part |
Up and down moving |
80mm |
| Fixation | Red LED (supply power：7V, 0.02W；the lamp itself: 2V，0.006W） | |
| Power |
Input voltage | 110/220V±10％ |
| Input frequency |
50/60Hz | |
| Input power | 60VA | |
| Output voltage | Illumination: 5V | |
| Safe standard of electric | IEC601－1、type Ⅰ, BF Model | |
| Weight and Dimension |
Packing box | 720mm x 495mm x 480mm |
| Gross weight | 25Kg |
